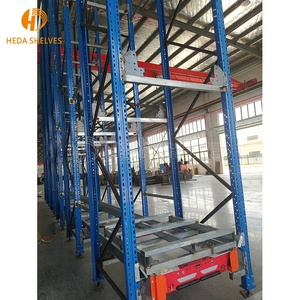

Automated Pallet Warehouse Racking Semi-Automatic Racking System Warehouse Shuttle System for LlFO System
China Factory Customized Metal Mezzanine Rack Steel Platform Rack Warehouse Multi-tier Rack System

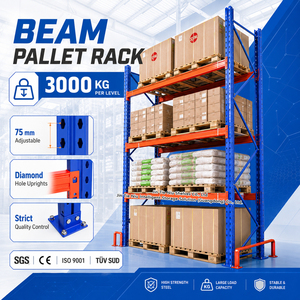

3-tier Cold Rolled Steel Powder Coated 3000KG Factory Direct Heavy Duty Pallet Racking Warehouse Storage Rack
Standard Light-Duty Coil Racking Lightweight Black Steel Warehouse Coil Storage Rack with Raised End Stops
Compact Heavy Duty 5 Layer Adjustable Thickened Pallet Rack with 300kg Load Capacity for Small Spaces Cold-Rolled Steel
Engineering White Paper: CE Certified Pallet Racking with Integrated Catwalk Architecture
In modern industrial logistics and fulfillment hubs, spatial efficiency directly dictates operational profitability. Warehouses facing sky-rocketing land acquisition costs cannot rely solely on horizontal expansion. The integration of CE-certified pallet racking systems with multi-level catwalks (elevated walkways) provides a high-density, multi-tier solution that converts underutilized vertical headroom into productive storage and manual order-picking zones.
Information Gain Insight: Unlike standard single-tier selective racking, structural pallet racking with catwalk walkways utilizes heavy-duty upright frames (Q235B/Q355B cold-rolled steel) to support both high-tonnage pallet loading overhead and ergonomic, continuous pedestrian access at intermediate elevated levels without installing separate floor joists.
Structural Anatomy & Material Integrity Specs
Zenithrack's multi-tier pallet racking systems with catwalks are structural engineering solutions compliant with EN 15512 (European Structural Racking Standard), FEM 10.2.02, and RMI standards. Every structural member undergoes rigorous static and dynamic stress analysis (FEA) to ensure structural stability under concentrated human traffic and simultaneous heavy pallet placement.
- Structural Upright Columns: Manufactured from high-tensile Q355B cold-rolled coil steel featuring continuous omega-profile cross-sections with multi-rib reinforcement for superior torsional stiffness.
- Load-Bearing Beams: Interlocking box beams with 3 or 4-hook steel connectors equipped with automatic safety drop locks to eliminate displacement risk during forklift operations.
- Catwalk Decking Media: Customizable walkway flooring including anti-slip perforated steel planks, open-mesh steel grating for optimal sprinkler water penetration, and heavy-duty galvanized anti-skid floor plates engineered for loads from 300 kg/m² up to 1,500 kg/m².
- Safety Infrastructure: Integrated kickboards (150mm minimum height), multi-strand handrails, structural staircases with anti-slip risers, and gravity-closing safety gate doors for safe pallet loading via fork trucks.
System Performance Comparison Matrix
To assist logistics procurement executives in selecting the optimal high-density storage framework, the table below provides an comparative assessment of structural racking configurations:
| Racking Architecture System | Vertical Volume Utilization | Direct SKU Access | Structural Floor Load (kN/m²) | Safety Certification Compliance |
|---|---|---|---|---|
| Pallet Racking with Catwalk (Multi-Tier) | 85% – 95% | 100% (Manual & Forklift) | 3.5 – 12.0 kN/m² | CE, EN 15512, ISO 9001, OSHA |
| Standard Selective Pallet Racking | 40% – 50% | 100% (Forklift Only) | N/A (Pallet Dependent) | EN 15512, ISO 9001 |
| Drive-In Pallet Racking | 65% – 75% | LIFO Lane Dependent | N/A | EN 15512, RMI |
| Radio Shuttle Automatic Racking | 80% – 90% | FIFO / LIFO Automated | N/A | CE, ISO 9001, FEM 10.2.02 |
| Structural H-Steel Mezzanine | 70% – 85% | Open Floor Flexibility | 5.0 – 20.0 kN/m² | CE, BS 5950, EN 1090 |
Why Source Catwalk Racking Systems From Zenithrack?
Zenithrack Industrial Equipment Co., Ltd. is a leading real warehouse storage rack factory based in Dongguan, China, with over 15 years of dedicated manufacturing expertise. Operating an 8,000 m² automated production facility equipped with 35 sets of advanced roll-forming machines, automatic robot welding arms, and continuous electrostatic powder coating lines, we generate annual domestic and international sales exceeding CNY 100 million.
We eliminate middleman markups while enforcing stringent quality assurance procedures across raw steel verification, hole-punching precision, robotic welding integrity, and surface finishing.
In-House QC & Testing
Every batch of Q235B/Q355B cold-rolled steel undergoes yield-strength and coating-adhesion testing. Full dimensional checks ensure zero error during field installation.
Free CAD & 3D Engineering
Our senior structural engineers draft custom CAD layout designs and 3D load models within 24 hours based on your building clearance and forklift turning radii.
Turnkey OEM & Exporter
We support distributors, engineering contractors, and multinational brands with customized profile dimensions, safety colors, custom branding, and export packing.
Global Procurement & Technological Trends in Pallet Racking Systems
As international supply chains evolve toward higher automation, strict safety compliance, and ESG (Environmental, Social, and Governance) targets, procurement managers must align their equipment investments with emerging industrial trends:
1. Integration of Autonomous Mobile Robots (AMRs) with Multi-Tier Catwalks
Modern catwalk designs are transitioning from purely manual walking decks into hybrid zones capable of supporting lightweight Autonomous Mobile Robots (AMRs) and automated sorting conveyors. Elevated walkways are engineered with enhanced surface flatness and vibration-dampening sub-structures to accommodate high-frequency robotic picking.
2. Stringent Seismic and CE Environmental Standard Compliance
Global buyers in Europe, North America, and seismic-active regions increasingly require rack suppliers to provide verifiable CE marking and structural calculations under European standards EN 15512 or US RMI codes. High-tensile steel cold-forming allows thinner profile gauges to achieve superior load resistance, reducing steel consumption and ocean freight carbon footprints.
3. Eco-Friendly Powder Coating & Advanced Galvanization for Cold Chain
With cold-chain logistics rapidly expanding for pharmaceutical and fresh food distribution, catwalk and pallet racking procurement is leaning heavily toward heavy-duty hot-dip galvanization and non-VOC electrostatic powder coatings that resist sub-zero thermal shock and high humidity oxidation without flaking.
4. Modular "Zero-Weld" Boltless Catwalk Architecture
Future-ready warehouse spaces demand flexibility. Modern pallet racking with catwalk systems utilizes 100% bolted structural frame assemblies and drop-in interlocking floor panels. This allows logistics operators to dismantle, expand, or reconfigure elevated walkways as SKU profiles change over time.
Frequently Asked Procurement & Engineering Questions (FAQ)
Expert answers from our engineering division regarding structural safety, CE compliance, layout planning, and international shipping.
Why is CE Certification critical when buying pallet racking with catwalk systems?
What design parameters are required to calculate a catwalk pallet racking layout?
How does a multi-tier catwalk racking system differ from an H-Steel structural mezzanine platform?
What catwalk flooring panel options are available for fire safety compliance?
What is the lead time for export shipping and OEM order customization?
Do you provide structural calculation reports and installation guidance?
How do you control quality during manufacturing?
