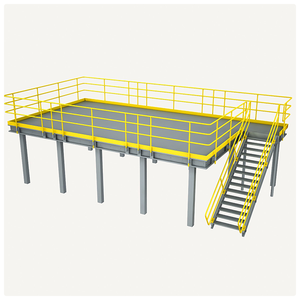

Assembled Metal Heavy Duty Multi Tier Storage Steel Floor Mezzanine Platform System Pallet Rack Supported Mezzanine
3000KG Heavy Duty Warehouse Shelf Rack for Pallet and Carton Storage 4 Levels for Pallet Storage
Custom Storage System Stacking Racks Shelves Warehouse Rack Push Back Pallet Racking With Guide Rail
Heavy Duty Pallet Storage Rack Industrial Warehouse Steel Racking System Factory Direct Supplier
New 1000KG Load Capacity Restaurant Pallet Powered Pop up Chain Transfer Unit Conveyor System
Metal Rack Storage Shelf Heavy Duty Selective Pallet Beam Racking for Industrial Warehouse Pallet Cargo
Technical Whitepaper
Engineering Multi-Deep Racking for Maximum Volumetric Density
Understanding structural load mechanics, beam deflection limits, and spatial optimization algorithms in modern industrial warehousing.
In modern industrial logistics, warehouse footprint cost optimization requires a transition from standard single-deep rack layouts to engineered multi-deep racking architecture. Multi-deep racking—comprising Double-Deep, Push-Back, Drive-In, Radio Shuttle, and Multi-Tier Rack-Supported Mezzanines—allows logistics operators to eliminate excess aisle space, increasing cubic floor space utilization from 40% up to 85%.
As a leading China multi deep pallet racking manufacturer and factory, Zenithrack Industrial Equipment Co., Ltd. designs and manufactures high-density storage solutions tailored specifically to warehouse height, floor slab load capacity, forklift mast dynamics, and throughput frequency. By utilizing certified high-grade structural Q235B and Q355B cold-rolled steel, our systems ensure rigid structural stability under seismic and extreme dynamic load conditions.
Mechanical Dynamics & Structural Deflection Standards
Structural integrity in heavy-duty racking relies on strict adherence to international design codes, including FEM 10.2.02 (European Federation of Materials Handling) and RMI (Rack Manufacturers Institute). Key engineering criteria enforced at Zenithrack include:
- Beam Deflection Limit (L/200): Under maximum rated load, maximum horizontal beam flexure must not exceed 1/200th of clear span length, preventing plastic deformation and unseating of safety locks.
- Upright Column Profile Optimization: Continuous multi-stage cold roll-forming creates 11 to 13 bending folds on upright posts (profiles ranging from 80x60mm to 120x95mm), maximizing moment of inertia and buckling resistance.
- Seismic Diagonal Bracing & Anchor Shear Strength: Heavy-duty baseplates anchor upright frames to concrete slabs via expansion or chemical anchors, engineered to absorb floor shear force and seismic ground motion.
Double-Deep Pallet Racking
Stores pallets two-deep in a back-to-back structure, reducing aisle requirements by 50%. Requires deep-reach pantograph forklifts. Excellent balance between selectivity and storage density.
Radio Shuttle Deep Lane System
Semi-automated multi-deep system utilizing a Wi-Fi or RF remote-controlled shuttle car inside deep lanes (up to 40+ pallets deep). Supports both FIFO and LIFO rotation with fast pallet cycles.
Push-Back Inclined Cart Racking
Pallets rest on nested wheel carts riding on inclined steel channels. Storing 2 to 6 pallets deep per lane, loading pushes previous pallets back; unloading lets gravity feed pallets forward (LIFO).
Multi-Tier Mezzanine Structures
Utilizes heavy-duty rack uprights or structural H-beams to support 2 to 4 vertical steel decking levels. Doubles or triples usable floor area for manual piece picking and mixed carton handling.
Technical Matrix
Multi-Deep Storage System Selection Guide
Compare storage density, selectivity, equipment cost, and operational dynamics across primary industrial racking configurations.
| Racking System Type | Space Utilization | SKU Selectivity | Handling Equipment | Stock Inventory Rotation | Optimal Application |
|---|---|---|---|---|---|
| Selective Pallet Rack | 40% - 50% | 100% Direct Access | Standard Counterbalance Forklift | FIFO / Any order | High SKU variety, fast-moving items, 3PL centers |
| Double-Deep Racking | 60% - 65% | 50% Direct Access | Reach Truck with Pantograph Attachment | FILO / LIFO | Medium SKU volume, multiple pallets per SKU |
| Push-Back Cart Rack | 70% - 75% | Lane-by-Lane Access | Standard Forklift | LIFO (Last-In, First-Out) | Cold storage, medium batch production, high density |
| Radio Shuttle Racking | 80% - 88% | High density, automated | Standard Forklift + Radio Shuttle Unit | FIFO or FILO (Flexible) | FMCG, food & beverage, high-volume batch storage |
| Rack Supported Mezzanine | 150% - 200%+ | 100% Floor Access | Manual Carts, Pallet Jacks, Vertical Lifts | FIFO / Direct Pick | E-commerce fulfillment, spare parts, manual picking |
