Sub-Zero Structural Engineering & Metallurgical Integrity
A Technical Whitepaper on Optimizing High-Density Storage in Cold Stores Ranging from -5°C down to -30°C
Cold chain logistics operations face unprecedented financial pressure due to high energy costs associated with maintaining sub-zero ambient temperatures (-18°C to -30°C for frozen foods, meat, pharmaceuticals, and biological samples). In a cold facility, refrigeration expenses account for over 60% of total operating overhead. Consequently, maximizing structural density (cubic utilization) while ensuring uncompromising safety against low-temperature steel embrittlement is the primary mandate for supply chain engineers and procurement directors.
As a leading China cold chain pallet racking manufacturer and supplier, Zenithrack integrates advanced structural physics, specialized metallurgy, and customized automated racking designs (such as Drive-In and Radio Shuttle systems) to convert wasted aisle space into revenue-generating pallet slots without risking structural collapse due to thermal contraction.
Metallurgical Grain Refinement
Standard carbon steel (such as Q235B) undergoes a ductile-to-brittle transition when exposed to sub-zero environments. Zenithrack utilizes micro-alloyed Q355D and Q355E high-strength steel enriched with Manganese, Vanadium, and Niobium to guarantee high impact toughness (Charpy V-notch testing at -40°C).
Thermal Contraction Tolerance
Metal shrinks under freezing temperatures ($\Delta L = \alpha \cdot L \cdot \Delta T$). Standard rigid connections will experience bolt-shearing stress. Our cold storage racking profiles incorporate engineered dynamic slotted holes and high-grade 10.9-rated anti-loosening fasteners to safely absorb linear expansion and contraction cycles.
Duplex Surface Protection
Condensation during defrost cycles causes rapid oxidation. We offer structural Hot-Dip Galvanizing (HDG compliant with ISO 1461, coat thickness ≥85μm) or specialized Sub-Zero Epoxy-Polyester Powder Coating that maintains elasticity without cracking or peeling under thermal shock down to -35°C.
Cold Chain Storage Racking Architecture Matrix
Selecting the Right High-Density Racking Topology for Cold Rooms, Blast Freezers, and Refrigerated Distribution Centers
| Racking Topology | Cold Room Density | Stock Access (FIFO/LIFO) | Forklift Cycle Efficiency | Energy Efficiency ROI | Optimal Cold Application |
|---|---|---|---|---|---|
| Selective Pallet Rack | Standard (40-50%) | 100% Direct (FIFO) | High speed | Baseline | High-SKU raw materials, pharmaceutical cold storage |
| Drive-In Pallet Racking | High (65-75%) | LIFO (FILO) | Moderate (Deep lane entry) | +35% Energy Saved | Monotheme bulk ice-cream, frozen poultry, dairy storage |
| Radio Shuttle Racking | Ultra-High (80-88%) | Flexible (FIFO & LIFO) | Automated / Fast | +60% Energy Saved | High-throughput FMCG frozen logistics, deep cold vaults |
| VNA (Very Narrow Aisle) | High (60-70%) | 100% Direct (FIFO) | High (Specialized turret truck) | +25% Energy Saved | High-bay cold stores with tall clear heights (>12m) |
| Heavy Mezzanine Platforms | Multi-Tier Area | Manual / Goods Lift Access | N/A (Carton picking) | +40% Floor Multiplied | Cold room order fulfillment, meat processing platforms |
Radio Shuttle Cold Storage System
The gold standard for automated cold chain logistics. Self-powered remote-controlled shuttles carry heavy pallets inside storage channels. Forklifts do not enter cold tunnels, preventing vehicle heat emission from polluting the cold environment and reducing operator exposure to sub-zero hazards.
Heavy-Duty Drive-In Cold Racks
Eliminating work aisles completely, forklifts drive directly into structural rack lanes. Engineered with continuous top-to-bottom arm brackets, high-tensile top beams, and ground-anchored guide rails to prevent accidental rack impacts in icy conditions.
Pallet & Spiral Conveyor Integration

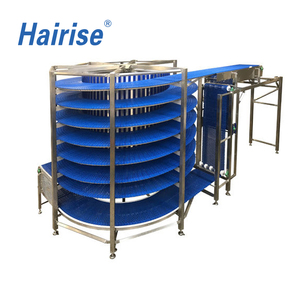

Seamlessly bridging warm unloading docks with frozen storage vaults, heavy-duty pop-up roller transfer conveyors and modular belt spiral conveyor systems maintain dynamic cold chain custody while transporting cartons and pallets automatically.
Strategic Procurement Trends in Cold Storage Infrastructure
Key Analytical Insights for Global Buyers, Logistics Directors, and Warehouse Developers
1. Transition to AS/RS & Shuttle Automation
With global labor shortages and increasing sub-zero labor costs, cold storage procurement is rapidly shifting from manual pallet racks to fully automated radio shuttle racks and stacker-crane AS/RS high bays. Automation reduces cold air leakage and operational risk.
2. Energy Density Optimization (TCO Focus)
Procurement is no longer judged solely on initial rack cost per ton, but on Total Cost of Ownership (TCO). High-density cold storage racking systems that increase cubic storage by 80% reduce the volume of empty refrigerated space, delivering up to 40% reduction in electricity bills.
3. Modular & Hybrid Cold Layouts
Modern distribution centers demand multi-temperature zoning (e.g., ambient, 2°C to 8°C chilled, and -25°C frozen). Modular boltless racks, heavy mezzanine platforms, and adjustable beam-type racks allow rapid warehouse re-configuration to meet seasonal demand shifts.
4. Strict Environmental & Safety Compliance
Global logistics brands require full compliance with FEM 10.2.02, RMI, and EN 15512 standards. Structural cold-formed steel profiles must undergo Finite Element Analysis (FEA) testing to verify load stability under combined seismic and thermal shock loads.
Evolution & Technological Frontiers in Cold Racking
Next-Generation Innovations Shaping the Future of Sub-Zero Warehouse Storage
IoT-Connected Structural Health Monitoring
Sensors integrated directly into critical rack columns track micro-vibrations, structural deflection, and moisture buildup in real-time. Early warnings prevent catastrophic racking collapses caused by hidden ice-formation fatigue or forklift impacts.
Advanced Anti-Microbial Powder Coatings
Cold chain facilities for seafood, meat, and pharmaceuticals require strict sanitation. Advanced electrostatically applied powder coatings now include silver-ion anti-microbial additives that prevent mold and bacterial growth even in high-humidity defrosting zones.
Green Steel Sourcing & Carbon Neutrality
Leading global buyers demand supply chain decarbonization. Zenithrack leads the industry by utilizing low-carbon green steel produced via Electric Arc Furnaces (EAF) with fully recyclable hot-dip galvanizing technology to minimize Scope 3 emissions.
Why Overseas Buyers Partner with Zenithrack
Direct Factory Value, Engineering Precision, and Proven Global Project Execution
Years Manufacturing Excellence
Over 15 years focused on heavy-duty storage rack design, steel fabrication, and sub-zero racking innovation. Ranked among China's top racking suppliers with over CNY 100M annual revenue.
Modern Industrial Production Facility
Located in Dongguan, Guangdong, equipped with 35+ automated high-precision roll-forming lines, robotic welding stations, continuous punching machines, and full automated powder coating systems.
Expert Technical & QC Personnel
In-house structural engineering staff and strict QC inspectors monitoring raw steel testing, weld penetration, dimensional tolerances, and coating thickness before ocean packaging.
CAD & 3D Warehouse Layout Design
We provide full structural calculations, CAD layout drawings, and 3D simulation diagrams completely free of charge within 24 hours of receiving your warehouse architectural floor plans.
Customized Engineering & Branding
Tailor-made column sizes, beam depths, surface colors (RAL palette), load capacities up to 5,000 kg/level, and OEM brand labeling for global racking distributors and contractors.
Export-Ready & Turnkey Service
Free sample components available (freight collect), step-by-step installation guides provided, installation specialized tools included with container shipments, and fast 15-20 day lead times.
