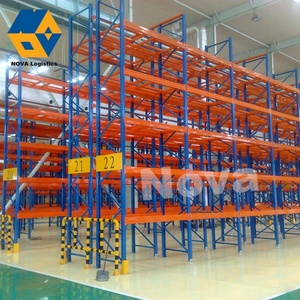

Customized Industrial Storage Heavy Duty Pallet Rack
Intelligent 4-Way Radio Shuttle Automated Racking
Executive Summary: High-Density Automation & The Evolution of Shuttle Racking
As global supply chains face escalating industrial land costs, warehouse operators, logistics hubs, and cold storage providers are aggressively transitioning from low-density storage models toward automated high-bay systems. Among these structural advancements, Radio Shuttle Racking Systems (Automated Pallet Runner Systems) have emerged as the premier benchmark for high-density pallet storage.
Manufactured in Dongguan, Guangdong—China's advanced manufacturing center—Zenithrack Industrial Equipment Co., Ltd. stands as a premier direct factory supplier with over 15 years of OEM and export expertise. Operating from an expanded 8,000 m² production facility equipped with 35 sets of continuous roll-forming lines, robotic welding stations, and automated electrostatic powder coating plants, Zenithrack delivers engineered storage infrastructure serving logistics integrators across Europe, the Americas, the Middle East, and Southeast Asia. Having achieved over CNY 100 million in annual domestic sales and earned a consistent ranking among China’s top 10 racking manufacturers, Zenithrack brings rigorous engineering methodologies directly to international buyers.
Unlike traditional Drive-In racking where forklifts physically enter structural tunnels—creating high collision risks and slow cycle times—a Radio Shuttle Racking System utilizes an autonomous, battery-powered pallet runner cart (the "Shuttle"). The shuttle rides on specialized internal rails beneath stored pallets, controlled via wireless RF remotes or integrated WMS/WCS software. This architecture isolates forklift activity to the front picking face while internal horizontal transport is executed automatically at speeds up to 1.2 m/s.
Structural Architecture & Mechanical Engineering Standards
The integrity of a radio shuttle racking system relies on precise metallurgical standards and structural tolerance controls. Zenithrack designs every shuttle frame in accordance with international structural engineering guidelines, including FEM 10.2.02 (European Federation of Materials Handling) and ANSI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks).
1. High-Tensile Steel Profiles & Roll-Forming Precision
Zenithrack uses structural grade Q235B and Q355B cold-rolled steel sourced directly from premier steel mills. Cold roll-forming profiles are subjected to strict dimensional inspections:
- Upright Columns: Manufactured with 11 to 13 cold-formed bends per section, increasing moment of inertia and buckling resistance under heavy vertical loads. Upright profiles range from 80mm to 140mm face width, with material thicknesses from 1.8mm up to 3.0mm depending on seismic and height criteria.
- Shuttle Guide Rails: Custom-designed, dual-function galvanized rail sections engineered to support both the heavy point loads of the automated shuttle wheels and the static weight of loaded pallets (up to 1,500 kg per pallet position). Rail alignment tolerances are maintained within ±1.0mm per 10-meter span to ensure smooth shuttle travel without vibration or track derailment.
- Beam Connectors: Heavy-duty 3 to 5-claw connectors welded to structural box beams, utilizing safety locking pins to eliminate accidental dislodgement from lift-truck impact.
2. Surface Treatment & Environmental Protection
Racking installed in high-humidity or cold-chain environments (-30°C) requires robust surface passivation. Zenithrack implements an automated 9-stage pre-treatment wash sequence (degreasing, phosphating, and deionized water rinsing) followed by thermosetting electrostatic epoxy powder coating (80–120 μm film thickness). This process ensures 500+ hours of continuous salt spray corrosion resistance (ASTM B117 compliance).
Radio Shuttle Operating Modes: FIFO vs. LIFO Logistics Strategy
The operational flexibility of a radio shuttle system allows warehouse managers to switch between standard material flow strategies depending on product turnover velocity and SKU expiration requirements:
| Performance Dimension | Selective Pallet Rack | Drive-In Racking | 2-Way Radio Shuttle | 4-Way Radio Shuttle |
|---|---|---|---|---|
| Cube Utilization | 40% – 50% | 65% – 75% | 75% – 85% | 85% – 92% |
| SKU Flexibility | High (Direct Access) | Low (Batch Storage) | Medium (Lane-by-Lane) | High (Dynamic Matrix) |
| Forklift Risk/Damage | Moderate | High (Inside Racks) | Very Low (Face Only) | None (Automated AGV/Lifter) |
| Operating Speed | Standard | Slow (Low Caution Speed) | Fast (1.0 - 1.2 m/s Shuttle) | Ultra-Fast Automated |
| Stock Rotation | FIFO / LIFO | Strictly LIFO | FIFO or LIFO | Flexible Matrix FIFO |
| Cold Storage Suitability | Standard | Poor Efficiency | Excellent (-25°C LiFePO4) | Superior (Fully Automated) |
In LIFO (Last-In, First-Out) configurations, loading and unloading take place from a single front aisle. This model is optimal for non-perishable goods, raw materials, or fast-moving consumer packaged goods (FMCG) with uniform SKU profiles per lane.
In FIFO (First-In, First-Out) configurations, loading occurs at the front lane while retrieval takes place from the rear aisle. This layout is vital for food and beverage, pharmaceutical, and cold-chain facilities operating under strict batch-control and expiration rules.
Procurement & Technological Trends in Global Racking (2025–2030)
As a forward-thinking Chinese manufacturer exporting globally, Zenithrack observes several structural shifts shaping international procurement decisions:
1. Transition to 4-Way Shuttle Systems
While 2-way shuttle carts move exclusively back-and-forth along a single lane, 4-way shuttle technology allows carts to change tracks longitudinally and laterally. This eliminates forklift dependency across upper tiers, creating a fully automated 3D matrix storage system integrated with vertical lifts.
2. Cold Chain Optimization (-30°C)
Energy costs in cold storage facilities drive maximum cube density. Specialized radio shuttle systems feature IP65 moisture-sealed electronics, low-temperature lubricants, and self-heating LiFePO4 battery packs that operate reliably at -30°C without degradation.
3. WMS/WCS & IoT Sensor Integration
Modern radio shuttle runners are no longer isolated mechanical tools. They are embedded with laser distance sensors, optical encoders, and Wi-Fi/Bluetooth mesh chips that stream real-time operational telemetry, battery status, and pallet counts directly to enterprise WMS networks.
Zenithrack Factory Capabilities & Enterprise Advantages
Navigating overseas supply chains requires choosing a manufacturer with verifiable production capacity, robust Quality Assurance (QA) protocols, and direct engineering capabilities.
Why Global Supply Chain Managers Choose Zenithrack
- Direct Manufacturing Control: Located at No. 15 Yinhu 2nd Road, Shishuikou, Qiaotou Town, Dongguan, Guangdong, Zenithrack controls all manufacturing in-house—eliminating middleman markups and technical communication delays.
- 15+ Years Industry Experience: Over a decade and a half of engineering experience designing, manufacturing, and installing complex pallet racking, structural mezzanines, cantilever systems, mold racks, and radio shuttle projects.
- Top 10 Domestic Supplier Credentials: With annual domestic sales topping 100 Million CNY, Zenithrack's structural integrity and scale are proven across high-demand fulfillment centers across China and international export markets.
- Dedicated Quality Control Team: Quality assurance starts with raw steel coil inspection (tensile and yield testing) and continues through hole-punching pitch verification (±0.2mm), weld seam ultrasonic inspection, and powder coat adhesion testing (ISO 2409 cross-hatch standard).
- Free Engineering Layout & CAD Design: Zenithrack engineers provide detailed CAD aisle layouts, vertical space calculations, load capacity charts, and 3D render designs free of charge prior to order confirmation.
- OEM & Customization Capability: Complete freedom to customize beam profiles, upright gauge thicknesses, powder coating colors (RAL scale), and client brand labeling for global racking distributors.
- Free Samples & Tool Kits: Physical material samples (upright sections, beam connectors, guide rail profiles) are available free of charge (freight collect). Confirmed container orders include basic installation tools and assembly hardware.
Frequently Asked Procurement FAQ (Buyer's Engineering Guide)
How do I choose between Selective, Drive-In, and Radio Shuttle Racking? +
What parameters are required for Zenithrack to design a shuttle layout? +
- Warehouse floor plan or CAD file showing building columns, clear height under roof trusses, and door locations.
- Pallet dimensions (Length x Width x Height including cargo overhang).
- Maximum load weight per pallet (e.g., 1,000 kg / pallet).
- Forklift model details, maximum lift height, and turning radius.
- Operating ambient temperature (Standard warehouse room temperature vs. Cold storage).
What is the expected ROI and cost difference of Radio Shuttle Racking? +
How does low temperature affect the shuttle cart battery performance in cold storage? +
What quality standards and certifications do Zenithrack products meet? +
Do you offer OEM colors, customized dimensions, and branding? +
Ready to Optimize Your Warehouse Storage Capacity?
Consult with our senior engineering team today for custom CAD layouts, structural load calculations, and factory-direct pricing for your radio shuttle racking project.
