Featured Block Stacking Racking Systems
Precision-engineered structural steel stack racks, push-back mechanisms, and modular foam block storage solutions built for heavy industrial duty cycle efficiency.
Custom Push Back Pallet Racking with Guide Rail
High-density dynamic racking utilizing gravity-fed nested carts and precision guide rails for rapid pallet loading and LIFO inventory management.
Contact Us

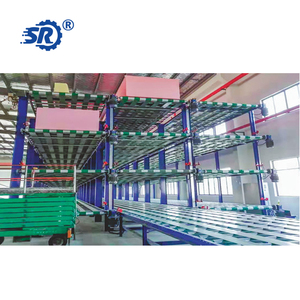

Block Rack System for Foam Block Storage
Specially engineered large-span stacking frame optimized for crushable polyurethane, EPS, and EPP foam blocks with customizable vertical clearance.
Contact Us
Heavy-Duty Adjustable Metal Stacking Racks
Heavy structural Q235B steel construction featuring 75mm beam pitch adjustability, high deflection resistance, and multi-tier stackability.
Contact Us
Removable Transportable Stackable Racking
Portable modular nestable frames designed for dual-purpose indoor warehouse stacking and direct transport logistics without cargo restacking.
Contact Us

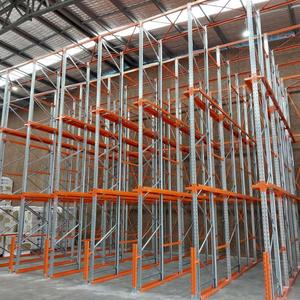

AU Standard High-Capacity Steel Pallet Racking
Fully compliant with AS4084-2012 structural standards, providing rigid upright frames, safety locking pins, and heavy-duty load beam configurations.
Contact Us
Customizable Portable Metal Stack Racks
Versatile post-and-base portable stacking units allowing flexible 4-high block stacking when loaded and 80% space-saving tear-down when empty.
Contact Us
Modular Steel Stackable Shelving Frame
Cost-effective spatial optimization system engineered for raw materials, bulk tote boxes, and irregular industrial components requiring vertical cube usage.
Contact Us
Multilevel Warehouse Heavy-Duty Stacking System
Integrated multi-tier pallet storage matrix featuring high seismic resilience, reinforced footplates, and optimized aisle clearances for reach trucks.
Contact UsArchitectural Engineering & Load Dynamics of Block Stacking Racking Systems
Modern industrial supply chains demand radical spatial efficiency. When evaluating a China wholesale block stacking racking system supplier & exporter, enterprise procurement teams must look beyond superficial material costs and rigorously inspect structural mechanics, steel grades, yield strength thresholds, and dynamic load tolerances.
A block stacking racking system—also referred to in high-density logistics as modular stack frames, block storage racks, or portable stacking racks—is designed to eliminate static aisle waste. Unlike standard selective pallet racking which permanently dedicates up to 65% of warehouse floor space to forklift aisles, block stacking systems utilize vertical nesting and interlocking post cups to achieve volumetric utilization rates exceeding 80%.
1. Metallurgy & Material Selection: Q235B vs. Q355B Cold-Formed Steel
The structural integrity of any stack rack relies on the stress distribution across vertical uprights and base corner sockets. At Zenithrack Industrial Equipment, our engineering protocol mandates high-grade certified carbon steel profiles:
- Q235B Cold-Rolled Carbon Steel: Yield strength ≥ 235 MPa, Tensile strength 375–500 MPa. Ideal for standard medium-to-heavy industrial block stacking up to 1,500 kg per rack unit under ambient temperatures.
- Q355B Low-Alloy Structural Steel: Yield strength ≥ 355 MPa, Tensile strength 470–630 MPa. Specified for heavy-duty multi-tier stack racking (stacked 4 to 6 units high), cold-storage facilities (-30°C), and high seismic zone environments where impact resistance is critical.
Information Gain: Deflection Criteria & Finite Element Analysis (FEA)
Inferior block stacking racks manufactured by uncertified suppliers frequently suffer from elastic deformation at corner connection welds under maximum load. Zenithrack subjects every OEM rack profile to ANSYS Finite Element Analysis (FEA). We enforce a maximum beam deflection ratio of L/300 (surpassing the standard international threshold of L/200), ensuring zero frame distortion even after 10,000+ load-unload forklift cycles.
2. Interlocking Corner Sockets & Anti-Toppling Geometry
The core innovation of a safety-certified block stacking rack resides in its target alignment cup and post socket design. When stacking loaded racks 4 to 5 tiers high using a reach truck, positioning errors of just a few millimeters can cause severe eccentric loading. Our proprietary Target-Cone Interlocking Sockets provide a self-centering tolerance margin of ±25mm, guiding the upper rack's target feet smoothly into place while physically preventing lateral sway under dynamic warehouse operations.
Engineering Matrix: Block Stacking Racks vs. Conventional Storage Systems
Choosing the correct storage architecture requires balancing SKU diversity, selectivity, floor footprint, and total cost of ownership (TCO). Below is an engineer's operational assessment of primary warehouse storage formats:
| Storage System Type | Volumetric Efficiency | Pallet Selectivity | Floor Load Distribution | Flexibility / Relocation | CAPEX Cost per Pallet |
|---|---|---|---|---|---|
| Modular Block Stacking Rack | 80% – 88% (Very High) | LIFO (Lane Level) | Point Load via Corner Baseplate | 100% Mobile (Zero Anchoring) | Low to Medium |
| Selective Pallet Racking | 35% – 40% (Standard) | 100% Direct Access | Uniform Post Footplate | Fixed (Requires Slab Bolt-down) | Baseline (Standard) |
| Drive-In Racking | 65% – 75% (High) | LIFO / Strict Batch | Anchor Bolt Continuous Rack | Fixed Structural Frame | Medium to High |
| Radio Shuttle Racking | 85% – 90% (Maximum) | FIFO or FILO Programmed | Heavy Concrete Slab Requirement | Fixed Automated Lanes | High (Automation Premium) |
| Push-Back Racking | 70% – 78% (High) | LIFO (2-6 Deep) | Guided Inclined Rail Load | Fixed Rail Structure | Medium High |
Why Global Procurement Managers Partner With Zenithrack
As a premier factory-direct manufacturer headquartered in Dongguan, China, Zenithrack Industrial Equipment Co., Ltd. eliminates trading markup while offering direct access to senior structural engineers.
15+ Years Direct Manufacturing
Founded in Dongguan, Guangdong, our 8,000 m² factory operates over 35 sets of high-precision roll-forming machines, robotic laser welding cells, and automated powder coating lines with annual sales surpassing 100 Million CNY.
Rigorous Quality Assurance (QC)
Every batch of raw Q235B/Q355B steel undergoes spectroscopic chemical testing and tensile verification. In-process inspections verify hole punching pitch accuracy, weld seam penetration, and electrostatic coating thickness (60-80 microns).
Free CAD Layout & FEA Engineering
We do not just sell steel; we engineer solutions. Send us your facility layout or floor plan, and our engineering team will provide free optimized CAD layout drawings, stacking stability models, and container packing plans within 24 hours.
OEM Customization & Branding
Full custom dimensional flexibility: post heights, base widths, removable post configurations, wire mesh decking underlay, side safety retainers, custom RAL color powder coatings, and private-label logo stamping for global distributors.
Optimized Freight Container Loading
Nestable base designs and detachable vertical upright posts maximize shipping container space utilization. A single 40ft High Cube container can hold up to 280-350 disassembled modular stack rack sets, reducing per-unit ocean freight costs dramatically.
Rapid Delivery & Sample Availability
We maintain standard steel tube profiles in raw material stock, enabling 14-day production turnaround for high-volume orders. Free structural samples (freight collect) are provided to verify surface finish and weld quality before full contract sign-off.
Future Trends in Global Block Stacking Racking Procurement (2025–2030)
As industrial supply chains adapt to automated logistics, unpredictable demand surges, and sustainability mandates, the market for China wholesale block stacking racking systems is evolving rapidly. Key macro trends shaping upcoming enterprise procurement requirements include:
Trend 1: Transition from Fixed Infrastructure to Agile "Flexible Warehousing"
Traditional fixed pallet racking requires chemical anchor bolts embedded into concrete floor slabs. When third-party logistics (3PL) contracts expire or product SKUs change size, modifying fixed racks is slow and capital-intensive. Global supply chain leaders are increasingly turning to portable block stack racks as dynamic asset units that can be expanded, reconfigured, or completely collapsed and relocated to seasonal satellite facilities in a matter of hours.
Trend 2: AGV and AMR Autonomous Forklift Compatibility
The integration of Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs) in modern warehouses requires block stacking racks with tighter dimensional tolerances (±1.5mm). Next-generation block stacking systems feature reflective laser targets, optical scanning base notches, and standardized forklift shoe entry channels, allowing robotic material handlers to perform error-free high-bay stacking without human intervention.
Trend 3: Customized Storage Solutions for Foam Block & Specialized Industrial Materials
Industrial manufacturing sectors—such as automotive seating, mattress production, chemical foam extrusion (EPS/EPP/PU), and synthetic roll manufacturing—produce large-volume, low-density block materials that deform under traditional narrow beam support. Specialized block rack systems incorporate ultra-wide continuous frame beds, soft edge corner profiles, and removable sidewall gates to prevent foam creasing and block tearing during vertical storage.
Trend 4: Sustainable Eco-Friendly Surface Treatments & Hot-Dip Galvanizing
International environmental regulations are driving demand for VOC-free electrostatic powder coatings and long-life hot-dip galvanized finishes (HDG compliant with ISO 1461). Hot-dip galvanization provides a self-healing zinc-iron alloy barrier capable of resisting rust in harsh outdoor yards, agricultural cold rooms, and high-humidity marine environments for over 25 years.
Procurement FAQ: Technical & Logistics Guide
Direct answers from Zenithrack's chief engineering team regarding block stacking rack design, safety standards, customized ordering, and international freight shipping.
How do I accurately calculate the load capacity and maximum stack height for my warehouse block racking?
Maximum stack height and load capacity are governed by total floor load capacity (concrete slab rating in kN/m²), clear headroom below fire sprinklers, and the structural design of the rack base. Typically, Zenithrack designs block racks for dynamic payloads of 1,000 kg to 2,000 kg per unit, supporting static stacking 4 to 6 tiers high. To verify safety, calculate total bottom-unit load capacity: Total Base Load = (Single Rack Payload + Rack Self Weight) × (Total Stack Height − 1). Our engineers provide full structural load calculations upon request.
What is the difference between a portable block stack rack and a standard pallet racking system?
A standard selective pallet rack is a fixed steel structure bolted directly to the concrete floor slab, providing dedicated beam levels and 100% individual pallet access. A portable block stack rack consists of individual nestable steel frames with removable posts or folding sides. Racks are loaded at floor level and stacked directly on top of one another. Block stack racks eliminate permanent aisles, double volumetric density for uniform goods, and can be collapsed to clear floor space when inventory is low.
Can block stacking racks be customized for unique goods like foam blocks, pipe coils, or heavy molds?
Yes. Zenithrack specializes in full OEM/ODM engineering customization. For foam block storage (EPS/EPP/PU), we fabricate extra-wide continuous frame beds up to 3,000mm in length with smooth support plates to prevent foam indentations. For heavy tooling or dies, we integrate pull-out drawer shelves and crane-lifting eyelets. For long pipes or textiles, we provide removable side stanchions and specialized cradle brackets.
What steel finish options are available for outdoor or cold storage environments?
We offer two primary surface finishing options. For standard indoor dry warehouses, we apply an electrostatic epoxy-polyester powder coating (60–80 microns thick) baked at 200°C in custom RAL colors (Blue RAL5015, Orange RAL2004, Grey RAL7035, etc.). For outdoor storage yards, high-humidity environments, or cold-storage freezers down to -30°C, we supply Hot-Dip Galvanized (HDG) steel compliant with ISO 1461, providing 70–100 microns of zinc coating for complete rust resistance.
What engineering details are required to receive a formal technical drawing and price quote?
To receive a free detailed CAD layout and quotation within 24 hours, please share: (1) Warehouse floor plan CAD file or clear dimensions including column locations, (2) Clear height underneath roof trusses or fire sprinkler heads, (3) Cargo/Pallet dimensions (Length × Width × Height including goods overhang), (4) Maximum load weight per rack unit, (5) Forklift model and maximum lift height capacity, and (6) Any specific seismic zone or safety code requirements.
How does Zenithrack pack and ship block stacking racks to ensure zero shipping damage?
All component parts are bundled using heavy steel strapping and plastic stretch wrap, with protective corner guards on structural edges. Detachable post uprights are bundled onto specialized steel shipping skids, while base frames are nested neatly to maximize container space and prevent shift during ocean transit. Detailed container loading manifests and unstacking safety guides are provided with every shipment.
Optimize Your Warehouse Footprint With Factory-Direct Engineering
Partner directly with China's leading wholesale block stacking racking system supplier. Contact our engineering team today for a free layout design, structural load analysis, and competitive factory quote.
Contact Us
