Architectural & Technical Analysis: E-commerce Pallet Racking Systems
In modern global supply chains, e-commerce warehousing demands structural adaptability, high-frequency pallet rotation, and precise space utilization. Unlike conventional storage facilities, e-commerce fulfillment infrastructure experiences aggressive operational dynamics: multi-shift continuous order picking, rapidly fluctuating Stock Keeping Unit (SKU) profiles, and strict delivery SLAs. Designing an efficient OEM custom pallet racking system requires deep structural engineering expertise, metallurgical precision, and compliance with rigorous global safety frameworks.
1. Metallurgical Standards & Structural Steel Profiles
The structural capacity of an industrial rack starts with raw material integrity. High-tensile cold-rolled steel coils—primarily Q235B and Q355B structural grades—are roll-formed into specialized upright columns and interlocking beam profiles. Upright frames utilize continuous, cold-formed omega profiles featuring multi-rib stiffeners that increase torsional rigidity while minimizing structural dead weight.
Cold-Rolled Structural Uprights
Continuous roll-formed profiles (80mm to 140mm face widths) engineered with precise pitch geometry (50mm, 75mm, or 76.2mm adjustment intervals) allow flexible vertical level modifications without compromising overall column stability.
Interlocking Box Beams
Fabricated from dual C-profiles nested and robotically welded along the seam, featuring 3-claw or 4-claw cold-forged connectors that establish a rigid beam-to-column mechanical lock with fall-proof safety pins.
Seismic & Environmental Bracing
Custom-engineered horizontal and diagonal structural bracing frameworks (using structural tubing or C-channels) designed according to RMI, FEM 10.2.02, and AS4084 international standards.
2. Engineering Load Calculations & Deflection Limits
To prevent catastrophic rack failures, beam deflection under maximum design load must adhere strictly to international serviceability limit states. In high-density e-commerce environments, standard design limits mandate that beam deflection shall not exceed L/200 (where L is the clear span length of the beam). For instance, a 2700mm beam under a 3000kg load will display less than 13.5mm of vertical deflection.

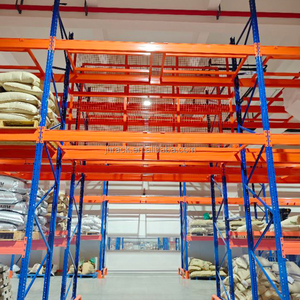

| Racking Configuration | Target Application | Typical Load Range per Level | Aisle Width Requirement | Selectivity vs Density |
|---|---|---|---|---|
| Selective Pallet Racking | High SKU diversity, rapid picking | 1,000 kg – 4,500 kg | 3.0m – 3.8m (Standard Forklift) | 100% Selectivity / Medium Density |
| Very Narrow Aisle (VNA) | Maximized height, limited footprint | 1,500 kg – 3,500 kg | 1.5m – 1.8m (Turret / VNA Truck) | 100% Selectivity / High Density |
| Drive-In / Drive-Through | Bulk homogeneous goods, cold storage | 1,000 kg – 2,000 kg | Forklift driving into rack bay | Low Selectivity / Ultra-High Density |
| Radio Shuttle Automation | Deep-lane high-throughput warehouse | 500 kg – 2,000 kg | Transfer aisles only (Automated Shuttle) | Channel Selectivity / Extreme Density |
| Gravity Flow / Carton Flow | FIFO order picking, fast-moving SKUs | 300 kg – 1,500 kg | Separate loading & picking aisles | High FIFO Selectivity / High Density |
Procurement & Technology Trends in E-commerce Racking (2025–2030)
As e-commerce giants and logistics providers expand into micro-fulfillment and automated fulfillment centers, racking systems are evolving from static iron frames into intelligent, integrated infrastructure platforms. Global buyers must evaluate several major shifts during their equipment procurement planning:
1. Seamless Integration with AMR & AGV Robotic Platforms
Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs) are replacing traditional manual forklifts in top-tier fulfillment centers. Modern OEM racking systems must incorporate precise baseplate anchor tolerances, unobstructed ground-level clearance, and magnetic guide-track integration. Bottom beam elevations must be calibrated to allow robot passage under racks for automated shelf-lifting and tote-retrieval mechanisms.
2. High-Density Radio Shuttle & AS/RS Compatibility
The push to shrink logistics carbon footprints and lower real estate overhead is driving demand for Automated Storage and Retrieval Systems (AS/RS) and semi-automated Radio Shuttle racks. Modern OEM designs feature customized guide rails with integrated sensor brackets, emergency braking stoppers, and ultra-flat structural beam surfaces that allow robotic shuttles to travel at speeds up to 1.5 m/s inside deep-lane storage channels.
3. Eco-Friendly Surface Coatings & Corrosion Resistance
Environmental standards in global markets demand non-toxic, volatile organic compound (VOC)-free surface finishing. Advanced electrostatic powder coating systems utilize thermosetting epoxy-polyester powder applied at controlled thicknesses of 60 to 90 microns. This process delivers high resistance to impact, chemical abrasion, and humidity while passing 500-hour salt spray corrosion tests (ASTM B117 standards)—essential for cold-chain grocery warehouses.
Enterprise OEM/ODM Capabilities & Factory Strengths
As a premier OEM & ODM manufacturer of warehouse storage systems in China, Zenithrack Industrial Equipment Co., Ltd. operates an integrated industrial infrastructure designed to meet strict international buyer specifications. With over 15 years of continuous manufacturing leadership, we support enterprise clients from initial architectural layout design through to international delivery.
Complete In-House Manufacturing Control
Located in Dongguan, Guangdong, China, our 8,000 square meter manufacturing facility houses 35 specialized production setups, including continuous automated roll-forming production lines, precision CNC punching cells, robotic arm welding stations, and an automated continuous powder coating line. Controlling every step in-house guarantees structural accuracy, uniform hole pitching, and strict batch-to-batch quality control.
Strict In-House QC Protocols
Raw steel coil inspection, ultrasonic weld integrity checks, coating thickness verification, and destructive compression testing are performed on every batch prior to container packing.
Free Engineering CAD Layouts
Our structural engineering team provides complimentary 2D CAD floor plans and 3D structural rendering drawings within 24–48 hours of receiving your warehouse blueprint.
Global OEM Brand Customization
We produce under private-label agreements for international rack distributors, project contractors, and system integrators—including custom RAL powder colors, branded stampings, and custom export packaging.
Our long-standing clients include industry leaders such as BYD, FedEx, SF Express, Huawei, Midea, Cooper, and Foxconn. Whether outfitting a 50,000 m² regional e-commerce fulfillment center or supplying modular teardrop racking components for overseas distribution networks, our engineering team ensures on-time delivery and structural compliance.
Frequently Asked Questions (FAQ) for OEM Buyers
To assist warehouse operations managers, procurement officers, and structural engineers in sourcing heavy-duty pallet racking systems, our technical team has compiled answers to key buyer inquiries:
- Selective Pallet Racking: Best when you manage many SKUs and require 100% direct pallet access. Ideal for e-commerce picking hubs.
- Drive-In Racking: Ideal for low SKU counts stored in high volume (e.g., cold storage or batch manufacturing) where Last-In, First-Out (LIFO) inventory control is acceptable.
- Radio Shuttle Racking: Recommended when you need maximum storage density combined with fast automated pallet movement, supporting both First-In, First-Out (FIFO) and LIFO rotation with reduced forklift labor.
- Warehouse floor layout or architectural CAD drawing indicating column grids, ceiling clear heights, building doors, and obstacle locations.
- Pallet specifications: Width x Depth x Height (including goods) and total Gross Weight per pallet.
- Forklift equipment parameters: Turning radius, aisle clearance requirement, and maximum lift height.
- Operating environment details: Temperature requirements (ambient vs cold room) and local seismic load requirements.
