Engineering Excellence in Custom OEM FIFO Pallet Racking Systems
In modern high-throughput logistics, inventory rotation speed and structural space utilization define operational profitability. As a premier China warehouse storage rack factory and global exporter, Zenithrack Industrial Equipment Co., Ltd. specializes in custom original equipment manufacturing (OEM) of First-In, First-Out (FIFO) Pallet Gravity Flow Racking systems. Engineered for high-density facilities, pharmaceutical fulfillment hubs, cold storage spaces, and fast-moving consumer goods (FMCG) distribution centers, custom FIFO dynamic racking guarantees strict inventory age management while multiplying volumetric storage density by up to 60% compared to conventional selective racking.
The core mechanic of FIFO gravity pallet flow racking relies on inclined roller tracks integrated into a heavy-duty structural steel matrix. Pallets are loaded from the upper charging aisle (loading side) and automatically glide down a controlled 3% to 4% pitch gradient toward the lower picking aisle (unloading side) under regulated gravitational force. This physical segregation of loading and picking aisles eliminates forklift collision risks, reduces travel distances, and streamlines continuous replenishment workflows.
Critical Information Gain: Structural Mechanics & Safety Factors
Unlike standard static selective racking, FIFO Pallet Flow systems experience dynamic kinetic energy loads during movement. Zenithrack’s structural engineering team utilizes high-tensile Q235B and Q355B cold-rolled steel profiles equipped with custom-designed speed controller brake rollers spaced at calculated intervals (typically every 1 pallet position). This prevents run-away pallet acceleration and ensures smooth, consistent movement for loads ranging from 500 kg up to 1,500 kg per pallet position.
Dynamic Flow Mechanics & Kinetic Brake Integration
To deliver absolute reliability over decades of continuous operation, custom OEM FIFO pallet racking relies on sophisticated mechanical subsystems designed specifically for your pallet specifications and environmental conditions:
- Precision Flow Rollers: Available in heavy-duty galvanized steel or high-impact poly-carbonate rollers with dual-sealed precision ball bearings designed to operate flawlessly in ambient temperatures as well as sub-zero cold storage units down to -30°C.
- Magnetic & Mechanical Speed Controllers: Direct-drive brake rollers automatically apply resistance proportional to the kinetic energy of the advancing pallet, regulating descent velocity to a safe maximum speed of 0.25 m/s.
- Automatic Pallet Separator Mechanisms: Positioned at the discharge picking face, mechanical separators isolate the frontmost pallet from the line of trailing pallets behind it. This relieves back-pressure (which can exceed several tons in deep-lane configurations) allowing forklifts to safely lift and extract the lead pallet without binding.
- Impact-Resistant Entry Guides: Heavy-gauge funnel entry guides at the loading aisle center incoming pallets automatically, protecting roller tracks and frame uprights from structural damage caused by forklift positioning errors.
Why Overseas Buyers Partner with Zenithrack
Integrating 15+ years of China's top-tier rack manufacturing expertise with rigorous global quality controls.
Full OEM Customization
Custom beam profiles, upright frames (80mm–120mm section depth), pitch adjustments (50mm, 75mm, 76.2mm), bespoke electrostatic powder coating colors, and direct distributor branding.
Free CAD Layout & Engineering
Our in-house structural engineers supply rapid floor-plan optimization, 3D structural rendering, seismic calculations, and complete installation drawings free of charge.
Rigorous Quality Control
Multi-stage quality inspection covering raw coil tensile testing, weld penetration ultrasonic tests, hole punching precision, and surface coating salt-spray corrosion tests.
Export-Ready Global Shipping
Specialized heavy-duty export packaging utilizing steel cradles, protective bubble wrap, and corrugated strapping to guarantee zero surface scratch or profile deformation in transit.
High-Density Storage System Technical Comparison
Selecting the optimal warehouse storage system requires balancing SKU variation, batch volumes, flow dynamics, capital expenditure (CapEx), and operational expenditure (OpEx). The data matrix below details how custom FIFO Pallet Flow Racking compares against alternative high-density structural solutions:
| Storage System Type | Rotation Logic | Storage Density | Direct SKU Accessibility | Forklift Travel Time | Ideal Application Profile |
|---|---|---|---|---|---|
| FIFO Gravity Pallet Flow | First-In, First-Out | Very High (up to 85%) | 1 SKU per lane (high volume) | Extremely Low (dedicated aisles) | Perishables, Pharmaceuticals, Cold Chain, High-Turnover FMCG |
| Radio Shuttle Racking | FIFO or LIFO | Extremely High (up to 90%) | 1 SKU per lane | Low (semi-automated carrier) | Cold Storage, Bulk Goods, Food Processing Facilities |

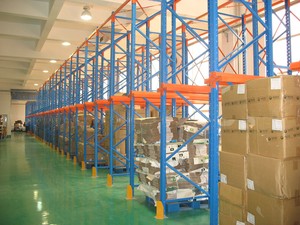

| Drive-In Racking | Last-In, First-Out | High (up to 75%) | 1 SKU per lane section | High (forklift enters racking lane) | Homogeneous bulk items, non-perishable goods, seasonal items |

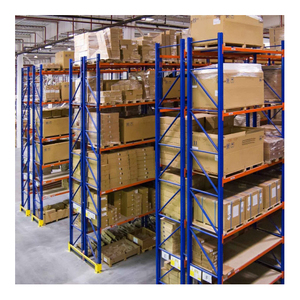

| Selective Pallet Rack | 100% Random Access | Standard (35% - 40%) | 100% Immediate Access | Moderate (navigates multiple aisles) | Multi-SKU distribution hubs, 3PL logistics, retail fulfillment |

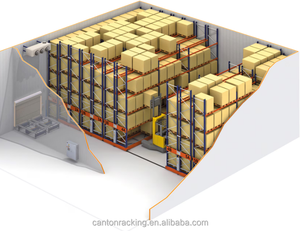

| Mobile Compacting Rack | Selective (Controlled) | Maximum (up to 95%) | 100% (when aisle opens) | Moderate (wait time for mobile base) | High-value cold storage, archival storage, limited floor space |
Future Procurement Trends in Industrial FIFO Racking (2025–2030)
As international supply chains evolve toward heightened automation, sustainability, and real-time inventory management, procurement strategies for high-density warehouse storage systems are shifting dramatically:
1. Automated Storage Integration (ASRS & AMR Compatibility)
Modern FIFO pallet racking is no longer designed solely for human-operated forklifts. Forward-thinking enterprise buyers are procuring dynamic flow systems equipped with sensor-grade end-stops and optical reflector plates. These modifications allow Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs) to automatically charge and discharge pallets from the gravity lanes, maximizing throughput without manual intervention.
2. Cold Chain Thermal & Operational Efficiency
With global cold chain logistics expanding exponentially, energy cost management inside refrigerated (-18°C) and deep-freeze (-30°C) facilities is critical. High-density FIFO pallet flow racking eliminates unnecessary aisles, drastically reducing the total cubic volume requiring refrigeration. OEM manufacturers must now utilize cold-resistant structural steel grades with specialized low-temperature powder coatings and synthetic synthetic-grease bearings that retain viscosity under severe thermal stress.
3. Low-Carbon Steel & Sustainable Manufacturing
ESG compliance is becoming a key evaluation criterion for global procurement directors. Zenithrack leads this transition by sourcing high-purity recycled structural steel coils, utilizing eco-friendly closed-loop degreasing systems, and deploying VOC-free thermosetting epoxy powder coatings. This reduces the embedded carbon footprint of exported racking by up to 25% per metric ton.
4. Modular Customization & Hybrid Storage Engineering
Logistics operators increasingly demand hybrid structural designs. Warehouses frequently combine heavy-duty selective rack bases with multi-tier mezzanine floors or integrate gravity-fed FIFO carton flow tracks on lower levels for manual piece-picking directly underneath high-density pallet storage lanes.
Frequently Asked Engineering & Procurement Questions
Direct technical guidance from Zenithrack's Senior Engineering Team for global project managers and distributors.
How do I choose between selective, drive-in, and FIFO shuttle or gravity racking?
What precise technical specifications are needed to design a custom OEM FIFO racking layout?
- Complete warehouse floor plan or CAD drawing detailing column locations, door positions, and clear height under roof trusses or sprinkler lines.
- Exact pallet dimensions (Width x Depth x Height including cargo overhang).
- Pallet construction details (e.g., GMA, Euro, block, perimeter base) and bottom runner orientation relative to flow direction.
- Maximum and minimum weight per loaded pallet (e.g., 500kg to 1200kg).
- Forklift model, mast height, and maximum lift height capability.
- Operating environment temperature (ambient, cold storage, deep freeze).
How does Zenithrack ensure dynamic structural safety and dynamic dynamic brake reliability in FIFO gravity flow tracks?
What international manufacturing and structural engineering standards do your racks comply with?
What surface treatment options are available for humid, outdoor, or sub-zero environments?
- Electrostatic Powder Coating: Thermosetting epoxy-polyester powder applied at 60-80 microns thickness, providing impact-resistant protection in standard dry warehouses (available in custom RAL colors).
- Hot-Dip Galvanization (HDG): Conforming to ISO 1461, structural steel components are immersed in molten zinc to achieve a minimum coating thickness of 65–85 microns. Recommended for high-humidity, outdoor, or deep-freeze cold storage operations to deliver zero-rust performance for up to 30 years.
Can Zenithrack manufacture racking system components under our own brand (OEM / White Label)?
