How do I choose between selective, drive-in and shuttle racking?

Choose selective pallet racking when you store many SKUs and need direct access to every pallet. Choose drive-in racking for few SKUs in large quantities where LIFO rotation is acceptable. Choose radio shuttle racking when you need very high density with the option of FIFO or FILO rotation and faster forklift cycles than drive-in systems.

What information do you need to design my warehouse racking layout?

Please share your warehouse floor plan or CAD drawing, clear height, pallet or goods dimensions, load per pallet or per shelf level, forklift type and maximum lift height, and any local seismic or fire-code requirements. Our engineers use this to prepare a free layout and installation drawing.

Do you provide free samples and installation drawings?

Yes. Free samples are available with freight collect, design and installation drawings are provided free of charge, and basic installation tools are shipped with confirmed orders.

How does Zenithrack control rack quality before shipment?

A dedicated QC team inspects raw steel, profile dimensions, welding seams, hole-punching accuracy and powder-coating or galvanized surface quality at each production stage before goods are packed for export.

Can racks be customized with our colors or brand?

Yes. OEM customization is available, including rack dimensions, load capacity, surface color and branding, so distributors and project contractors can supply racking under their own brand.

Custom OEM Pallet Racking With Mezzanine Supplier & Exporter

Engineered High-Bay Steel Frameworks, Multi-Tier Structural Platforms & Direct OEM Export Solutions for Global Industrial Warehouses

Featured Racking & Mezzanine Systems

Explore our heavy-duty, factory-direct industrial storage solutions customized for max cubic utilization.

Powder Coated Heavy Duty Rack Industrial Warehouse Storage Pallet Racking Adjustable Industrial Shelves

Get a Quote

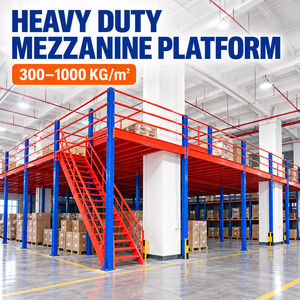

Heavy Duty Warehouse Mezzanine Floor Platform with Pallet Racking For Storage Expansion

Get a Quote

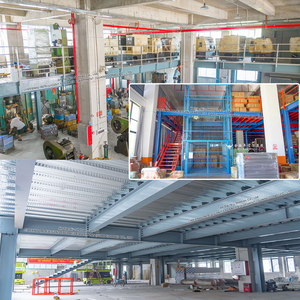

Heavy Duty I-Beam Steel Structural Platform Mezzanine Floor Rack for Industrial Warehouse Storage Factory

Get a Quote

Steel Mezzanine Floor Mezzanine Floors Platform Mezzanine Floor Rack For Warehouse Storage Industrial Heavy Duty Warehouse Rack

Get a Quote

Customized Steel Mezzanine Warehouse Storage Rack Heavy Duty Multi Tier Platform Industrial Shelving Factory Manufacturer

Get a Quote

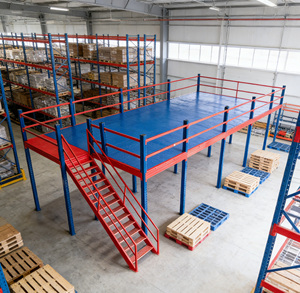

Warehouse Heavy Duty Multi-Level Steel Mezzanine Floor Pallet Racking System CE Certified 2-Layer Painted Surface 500kg/sqm Load

Get a Quote

Custom Chain Conveyor Heavy Duty Pallet Conveyor System

Get a Quote

Warehouse Heavy Duty Industrial Shelves Steel EU Blue and Orange Selective Pallet Racking Shelving System CE Certified

Warehouse Heavy Duty Industrial Shelves Steel EU Blue & Orange Selective Pallet Racking Shelving System CE Certified

Get a Quote

15+

Years Engineering Expertise

8,000 m²

Advanced Factory Facility

500+ kg/m²

Standard Mezzanine Floor Load

100% OEM

Custom Structural Tailoring

Technical Specification & Engineering Overview: Integrated Mezzanine Pallet Racking

In modern industrial logistics, static floor storage represents an underutilization of expensive warehouse cubic volume. For global supply chain directors, logistics infrastructure contractors, and high-density fulfillment centers, converting vertical clearance into accessible, load-bearing space is the primary lever for operational ROI. As a specialized OEM pallet racking with mezzanine supplier and exporter, Zenithrack Industrial Equipment Co., Ltd. engineered this comprehensive industry reference to outline structural profiles, steel selection, safety standards, and customized integration options.

Integrated mezzanine pallet racking systems seamlessly combine heavy-duty selective rack frameworks with raised multi-tier floor platforms. Unlike standalone steel structures, rack-supported mezzanines utilize upright columns as primary structural load pillars. This structural synergy eliminates the need for redundant heavy steel columns, reducing total material overhead while providing multi-level manual order picking, pallet storage, and automated conveyor integration on upper decks.

1. Structural Engineering & Steel Metallurgy Profile

The structural integrity of custom OEM pallet racking depends strictly on structural steel metallurgy, roll-forming precision, and beam connection geometry. At our Dongguan manufacturing center, systems are engineered utilizing high-grade cold-rolled Q235B and structural Q355B steel profiles, designed to comply with international FEM 10.2.02 and ANSI/RMI MH16.1 specifications.

Cold-Formed Uprights

Precision-punched omega profiles with 50mm/75mm pitch pattern adjustability. Engineered with multi-ribbed bends to maximize moment of inertia under dynamic eccentric loadings.

Interlocking Box Beams

Dual C-profile cold-welded box beams featuring welded 3-claw or 4-claw connector hooks with dynamic safety pins to completely prevent accidental forklift displacement.

Structural Decking Options

Choose from heavy-gauge galvanized steel floor plates, perforated airflow decking, heavy-duty wire mesh decking, or high-density anti-slip plywood overlays.

2. Comparative Analysis: Rack-Supported vs. Structural H-Steel Platform

Selecting between a rack-supported mezzanine platform and a free-standing structural H-steel platform depends on operational handling methods, SKU variety, floor point-load capabilities, and overall budgetary goals.

Engineering Parameter	Rack-Supported Mezzanine	Structural H-Beam Mezzanine	Hybrid Automated System
Primary Load Support	Cold-Formed Pallet Rack Uprights	Heavy-Duty Hot-Rolled H-Beams	Integrated Racking + AMR Matrix
Uniform Load Capacity (UDL)	300 kg/m² to 800 kg/m²	500 kg/m² to 2,000+ kg/m²	500 kg/m² to 1,200 kg/m²
Maximum Column Span	Standard Pallet Bay Widths (1.8m - 3.9m)	Wide Span Clearances (4.0m - 9.0m)	Modular Matrix Spans
Storage Versatility	High: Mixed Pallet & Cartons	High: Bulk Items & Machinery Floors	Extreme: Automated Tote/Pallet
Capital Cost / m²	Highly Economical (Dual Function)	Moderate to High Structural Investment	Advanced Integration ROI

Global Procurement Trends in Warehouse Racking & Mezzanine Infrastructure (2025–2030)

As an international exporter supplying industrial procurement heads across North America, Europe, Australia, and the Middle East, Zenithrack tracks shift patterns in supply chain logistics. Purchasing decisions are moving beyond initial purchase price toward total lifecycle structural safety, custom modularity, and automated equipment compatibility.

1. Rapid Multi-Tier Modular Expansion

Modern fast-growing e-commerce operations demand bolt-together, non-welded structural systems that allow rapid height additions or deck expansions without operational disruption.

2. Vertical AMR & Conveyor Integration

Mezzanine procurement increasingly specifies pre-engineered cutouts, dynamic edge protection gates, and heavy-duty structural sub-floors designed for Autonomous Mobile Robots (AMR).

3. Rigorous EEAT Quality Compliance

Importers are enforcing strict mill test certificates (MTC Q235B/Q355B), finite element analysis (FEA) dynamic loading stress reports, and electrostatic powder coating salt-spray durability tests.

Why Partnering with Zenithrack Delivers Tangible OEM Advantages

With over 15 years of dedicated cold-roll forming and steel fabrication experience, Zenithrack Industrial Equipment Co., Ltd. operates out of an 8,000 m² modern production base in Dongguan, China. Managed by a professional team of 75+ technicians, structural engineers, and dedicated quality inspectors, we achieve an annual sales revenue exceeding 100 million RMB.

We are a real, direct-manufacturing factory, not a trading intermediary. Every single component—from roll-formed upright posts, beam connector brackets, to galvanized steel floor decking—is precision-crafted in-house under strict quality management protocols.

Direct OEM Customization

We build precisely to your technical drawings or provide end-to-end custom engineering, offering tailored colors (RAL scale), beam dimensions, hole pitch geometry, and OEM branding.

Free Engineering Drawings

Send us your warehouse CAD layout. Our structural engineering team will deliver optimized 2D/3D CAD layout proposals and installation guides completely free of charge within 24 hours.

Export-Grade Packing & QC

Every shipment undergoes multi-point inspection. Components are bundled with protective steel strapping, plastic wrap, and cardboard corner protection for safe sea container transit.

Frequently Asked Questions (FAQ) - Sourcing & Technical Insights

Below are clear, direct engineering answers to the top questions asked by international buyers, facility managers, and racking distributors when sourcing custom mezzanine pallet racking systems.

How do I choose between selective pallet racking, drive-in racking, shuttle racking, and mezzanine floors?

Selection depends on SKU diversity, inventory throughput, and accessibility requirements. Choose selective pallet racking when you stock many unique SKUs and require 100% direct access to every pallet. Choose drive-in racking for high-density storage of few SKUs in large volume where LIFO rotation is acceptable. Choose radio shuttle racking for ultra-high density with automated forklift cycles supporting both FIFO/FILO. Choose a mezzanine floor platform when you need to double or triple your usable floor space for manual picking, light assembly, or bulk carton storage above pallet racking lanes.

What warehouse data is required for Zenithrack to design a free layout drawing?

To engineer an accurate layout proposal, please provide: (1) Warehouse building CAD drawings or detailed dimensions including clear height under roof trusses, (2) Obstacle locations such as building columns, doors, utilities, and fire sprinkler systems, (3) Pallet size (Width x Depth x Height including cargo), (4) Maximum load weight per pallet or shelf tier, (5) Forklift model, turning radius, and maximum lifting height, and (6) Local seismic or environmental requirements.

Can Zenithrack provide free physical samples and customized OEM branding?

Yes. We provide free material samples (upright profile sections, beam step samples, steel floor deck coupons) with freight collected. We fully support OEM customization—including custom RAL powder coating colors, custom beam sizes, post hole patterns, and your company logo stamped or stickered onto components for resale.

How does Zenithrack ensure structural quality and safety prior to export delivery?

Our factory operates an ISO-certified quality assurance process. Raw structural steel coil is verified for chemical composition and tensile strength. Post-forming tolerances, hole punch accuracy, and robotic MAG welding seams are systematically checked. Finished parts undergo 2-layer electrostatic powder coating depth testing and adhesion checks before being packed securely into export containers.

What load capacities can be achieved on a rack-supported mezzanine platform?

Standard rack-supported mezzanine floors are engineered for uniform loads ranging from 300 kg/m² up to 800 kg/m². If higher load capacities (1,000 kg to 2,000+ kg/m²) are required for heavy equipment or machinery, we design heavy-duty structural H-beam mezzanine platforms tailored to your specific point-load demands.

What is the typical production lead time and export delivery process?

Standard lead time for custom pallet racking and mezzanine orders is typically 15 to 20 business days upon CAD drawing confirmation and deposit receipt. Goods are packed in flat knock-down (KD) condition to maximize ocean container space, complete with detailed installation manuals, component labeling, and basic assembly hardware.

Transform Your Warehouse Space Today

Contact Zenithrack's engineering team today for a free 2D/3D layout design, complete structural load calculation, and factory-direct wholesale pricing within 24 hours.
