OEM/ODM Adjustable Pallet Rack Factories & Supplier

Engineered Heavy-Duty Storage Racking Systems | Direct Factory Customization, Free CAD Warehouse Design & ISO/CE Certified High-Density Structural Engineering

Factory-Direct Catalog

High-Performance OEM/ODM Industrial Pallet Racking Systems

Explore our top-tier certified heavy-duty warehouse racking solutions. Manufactured from high-tensile Q235B/Q355B structural cold-rolled steel, tailored for optimal cube utilization and maximum load safety.

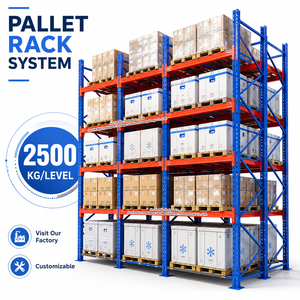

Heavy Duty Heavy Duty Pallet Rack Warehouse Storage Racking System 2500kg Per Level

Heavy Duty Pallet Rack Warehouse Storage System 2500kg Per Level

  • Load Capacity: 2500kg / Beam Level
  • Upright Profile: 90/100/120mm Omega
  • 5-Layer Custom Height Adjustment
Send an Inquiry

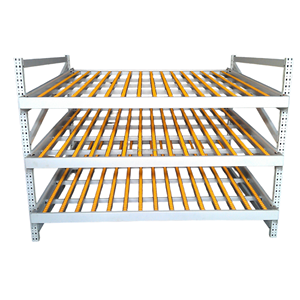

Gravity Flow AOCHEN Collapsible Powder Coated Mobile Gravity Pallet Roller Steel Rack

Collapsible Mobile Gravity Pallet Roller Steel Racking System

  • System Type: Gravity Roller Bed
  • Surface: Electrostatic Powder Coating
  • Rotation Model: FIFO First-In-First-Out
Send an Inquiry
Multi-Tier Mezzanine Customized Steel Mezzanine Warehouse Storage Rack Heavy Duty Platform

Customized Heavy Duty Multi-Tier Steel Mezzanine Platform System

  • Floor Load: 300kg - 1000kg / sqm
  • Decking Options: Steel Plate / Grating
  • Integrated Staircases & Guardrails
Send an Inquiry
Extra Strong 3500kg 3500kg Extra Strong Industrial Steel Coil Motor Storage Heavy Duty Beam Pallet Rack

3500kg Extra Heavy Duty Steel Coil & Motor Beam Pallet Storage Rack

  • Payload Rating: 3500kg / Level
  • Reinforced Box Beam Engineering
  • Heavy Equipment & Die Storage
Send an Inquiry

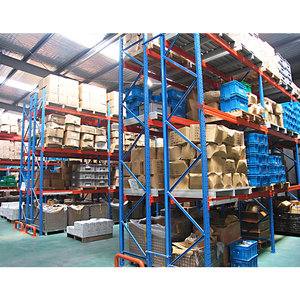

Selective Pallet Standard Pallet Rack Assemble Racks Heavy Duty Warehouse Pallet Racking System

Standard Selective Pallet Racking System Modular Assembly

  • 100% Direct Pallet Selectivity
  • Beam Pitch Adjustment: 50mm / 75mm
  • Safety Locking Pin Mechanism
Send an Inquiry

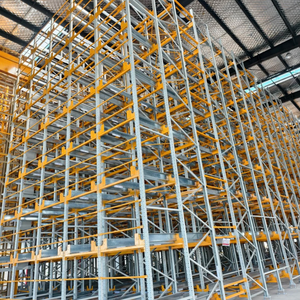

Automated Shuttle Customizable Four-Way Shuttle Racking Automated Warehouse Shelving System

Customizable 4-Way Radio Shuttle Automated Warehouse Racking System

  • Automated Deep-Lane Storage
  • Certification: CE / ISO9001 / FEM
  • Increases Storage Density by 80%
Send an Inquiry

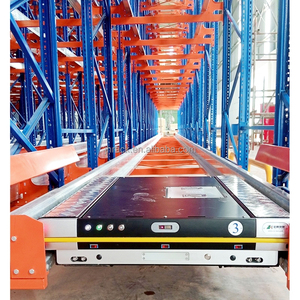

Galvanized High Density Customized High Density Storage LIFO Pallet Shuttle Racking Galvanized Warehouse Racks

High Density LIFO/FIFO Radio Shuttle Galvanized Storage Rack Series

  • Finish: Hot-Dip Galvanized Steel
  • LIFO & FIFO Dual Operations
  • Cold Room Storage (-30°C) Suitable
Send an Inquiry
Wire Deck Mesh Ventilated Wire Mesh Deck Pallet Racking System Heavy Duty 5-Layer Warehouse Racks 2000kg

Ventilated Wire Mesh Deck Pallet Racking System 2000kg Damp-Proof

  • Safety Standard: Fire & Water Permeable
  • Capacity: 2000kg / Shelf Level
  • Prevent Small Item Fall-Through
Send an Inquiry
Engineering Whitepaper & Structural Specs

Structural Engineering Guidelines for OEM/ODM Adjustable Pallet Racking

In modern industrial logistics, selecting an OEM/ODM adjustable pallet rack supplier requires evaluating rigorous structural engineering standards, metallurgical characteristics, and dynamic load factors. An adjustable pallet racking system forms the structural backbone of high-bay distribution centers, cold storage facilities, and manufacturing staging areas. To guarantee structural safety, operational longevity, and regulatory compliance (such as FEM 10.2.02, RMI, and EN 15512 specifications), procurement officers and logistics engineers must analyze column profiles, beam deflection limits, and seismic anchoring systems with mathematical precision.

Q355B Steel
High-Tensile Raw Material
355 MPa minimum yield strength for critical upright columns, resisting heavy bucking forces.
L / 200 Max
Strict Deflection Criteria
Maximum allowable beam deflection under full static load to prevent permanent plastic deformation.
1.5 - 1.95 SF
Structural Safety Factor
Engineered safety coefficient against structural yield under dynamic impact and eccentric loads.

Metallurgical Selection: Q235B vs. Q355B Cold-Rolled Carbon Steel

The yield strength and elongation coefficient of cold-formed structural steel govern the maximum load bearing capacity of upright frames and load beams. Leading OEM factories utilize continuous roll-forming lines to process coil steel into complex cross-sectional geometries (such as 11 to 13-fold Omega upright profiles). For basic rack levels, Q235B steel provides excellent ductility and weldability. However, for high-bay warehouse applications exceeding 8 meters or carrying unit loads over 2,000kg per level, Q355B micro-alloyed steel is specified to minimize column cross-sectional thickness while elevating structural buckling resistance by over 35%.

Racking Component Standard Material Grade Profile Geometry / Dimensions Surface Finishing Standard Engineering Application
Upright Columns Q355B Cold-Rolled Steel Omega Section (80/90/100/120mm) Epoxy Powder Coating (≥80μm) Main vertical structural frame load bearing
Step / Box Beams Q235B / Q355B Steel Twin C-Profile Interlocked Box Thermosetting Powder Coat Horizontal pallet support & tie-in stability
Frame Bracing Q235B High-Ductility Steel C-Shaped Channel (38×25mm) Zinc Galvanized / Powder Coated Horizontal and diagonal truss shear distribution
Footplates / Shims Q235B Heavy Steel Plate 4.0mm to 8.0mm Custom Stamping Hot-Dip Galvanized (HDG) Floor anchoring & seismic uplift resistance

Engineering Information Gain Insight: Adjustable pallet racking systems rely on 50mm, 75mm, or 50.8mm (2-inch) pitch adjustment slots. OEM customization allows precise alignment with specialized material handling equipment (MHE) clear heights, eliminating dead vertical space and maximizing warehouse volumetric density by up to 28%.

Strategic Procurement Insights

Future Procurement & Sourcing Trends in Industrial Racking

Global supply chain disruptions and automated warehousing demands are fundamentally changing how enterprises procure heavy-duty pallet racking systems.

Automation Integration

Transition to Automated Shuttle & AS/RS Hybrid Racking

Traditional static pallet racking is rapidly giving way to semi-automated Radio Shuttle systems and fully automated Storage and Retrieval Systems (AS/RS). Procurement teams now prioritize suppliers capable of tight-tolerance manufacturing (±0.5mm beam straightness) required for robotic sensors and 4-way shuttle travel tracks.

Direct OEM Factory Models

Direct-from-Factory OEM Sourcing vs. Intermediaries

Enterprise buyers are bypassing local intermediaries in favor of direct ODM/OEM manufacturing partnerships. Direct factory engagement delivers 18% to 25% Total Cost of Ownership (TCO) savings, direct engineering layout consultations, and tailored structural modifications for specialized inventory profiles.

Green Steel & Eco-Coating

Sustainable Material Standards & Green Warehousing

ESG compliance is driving demand for zero-VOC electrostatic powder coatings and recyclable green steel coils. Global brand owners now mandate salt-spray corrosion resistance metrics (ASTM B117 > 500 hours) to prolong equipment lifecycle and reduce replacement waste.

Manufacturing Excellence

Technological Trends Shaping Next-Generation Pallet Racking

Modern pallet rack factories have transitioned from manual fabrication to automated smart manufacturing lines. Continuous automated CNC roll-forming machines ensure high-precision slot pitch accuracy across 12-meter upright columns without thermal stress deformation.

Robotic MIG welding stations apply uniform fillet welds to beam-end connectors, eliminating micro-cracking and ensuring structural joint rigidity under severe dynamic loading conditions.

CNC Precision Roll-Forming

13-stage roll-forming mills preserve steel grain structure for maximum axial column strength.

Robotic Fillet Welding

Automated dual-torch robotic welding guarantees zero-defect seam strength on connector beams.

Key Structural Innovation Metrics

  • Upright Pitch Tolerance: ±0.1mm Accuracy
  • Powder Coating Adhesion: Cross-Hatch ISO Class 0
  • Seismic Load Resistance: Zone 4 Engineering Ready
  • Salt-Spray Resistance: > 500 Hours ASTM B117
  • Beam Safety Lock Shear Strength: > 15 kN Retention Force

Why Partner With Our Factory for OEM/ODM Pallet Racking?

Backing your supply chain with over 15 years of continuous manufacturing excellence, advanced equipment investments, and rigorous quality control protocols.

8,000 m² Modern Production Facility

House 35 sets of specialized equipment, including continuous roll-forming mills, laser cutters, and automatic powder-coating lines operating under ISO9001 guidelines.

75+ Professional Team & In-House QC

Dedicated structural design engineers and certified QC inspectors verifying raw steel coil chemical specs, weld integrity, and finish thickness at every manufacturing step.

Free CAD Layout & 3D Modeling

Our engineering team provides comprehensive warehouse floor space optimization, seismic load calculations, and installation drawings free of charge prior to order placement.

Complete OEM/ODM Brand Customization

Full support for custom beam colors (RAL color matching), private label stamping, custom packaging sizes, and tailored component geometry for international distributors.

Knowledge Base & Support

Frequently Asked Technical & Procurement Questions

Detailed answers prepared by senior racking engineers to assist international buyers, warehouse managers, and project contractors.

Q1: What is the primary engineering difference between Selective Pallet Racking, Drive-In Racking, and Radio Shuttle Systems? +
Selective Pallet Racking provides 100% direct access to every pallet SKU, making it ideal for facilities with low-volume, high-variety inventory. Drive-In Racking eliminates forklift aisles by allowing trucks to enter storage lanes, providing high density but operating on a Strict LIFO (Last-In, First-Out) basis. Radio Shuttle Racking utilizes semi-automated remote-controlled shuttles to carry pallets inside deep channels, offering high density with both FIFO and FILO options and significantly faster forklift handling cycles than traditional Drive-In systems.
Q2: What essential building parameters are required to calculate structural load capacity and layout design? +
To generate accurate structural calculation certificates and CAD layout drawings, our engineering team requires: (1) Warehouse architectural CAD plan showing column locations and ceiling clear height under sprinklers; (2) Pallet dimensions (Length x Width x Height including cargo weight); (3) Maximum load weight per pallet level; (4) Forklift truck specifications (maximum lift height, turning radius, and aisle width requirement); and (5) Local environmental factors such as seismic zone rating or concrete floor slab thickness/compressive strength.
Q3: How does your factory verify steel raw material quality and powder coating durability? +
We enforce a 5-stage Quality Control (QC) protocol. Raw coil steel batch certificates (MTC) are verified via chemical composition and tensile testing before production. Profile dimensions and slot punching accuracy are verified with digital calipers every hour. Post-production powder coating undergoes cross-hatch grid adhesion testing (ISO 2409), dry film thickness micrometry (≥80μm), and 500-hour salt spray testing (ASTM B117) to prevent surface oxidation in humid or cold storage environments.
Q4: What steel surface treatments do you recommend for ambient versus cold storage warehouses? +
For standard ambient warehouses, thermosetting electrostatic epoxy-polyester powder coating provides superior impact resistance, smooth aesthetic finish, and cost-effective corrosion protection. For sub-zero cold storage facilities (−20°C to −30°C) or high-humidity outdoor applications, Hot-Dip Galvanizing (HDG) with zinc coating thickness of 60–80 microns is strongly recommended to prevent rust formation beneath thermal insulation layers.
Q5: Can your factory manufacture custom upright slot pitch and custom beam connector hooks for existing racking systems? +
Yes. As an OEM/ODM specialist factory, we can modify our stamping dies to manufacture matching upright slot pitches (such as 50mm metric pitch, 75mm pitch, or 50.8mm / 2-inch teardrop style) and specialized 3-hook or 4-hook beam connectors. This allows global distributors to expand existing installations seamless without replacing whole racking structures.
Q6: What is the typical lead time for a full container load (FCL) order of OEM pallet racking? +
Standard production lead time for 1 to 3 40ft High Cube containers of customized pallet racking is typically 15 to 20 business days from CAD drawing approval and deposit receipt. For large-scale multi-tier mezzanine floor projects or automated shuttle systems, lead times range between 25 and 35 business days depending on structural engineering complexity and custom powder coat color requirements.

Optimize Your Warehouse Capacity with Direct OEM/ODM Racking

Connect directly with our senior structural engineers today. Receive a free engineering consultation, custom CAD layout, and factory-direct price quotation within 24 hours.
