Engineered Carton Flow Systems
Explore our top-tier export configurations, engineered for effortless First-In, First-Out (FIFO) inventory rotation, high SKU density, and fast-paced manual order picking.
Pallet Flow & Heavy-Duty Carton Flow Hybrid System
Heavy-duty gravity roller tracks engineered for high-density FIFO pallet and carton storage in automated distribution hubs.
Heavy Duty Steel Gravity Shelving & Mobile Carton Storage
Customizable industrial steel frame equipped with multi-track roller beds for rapid mobile bin and box retrieval.

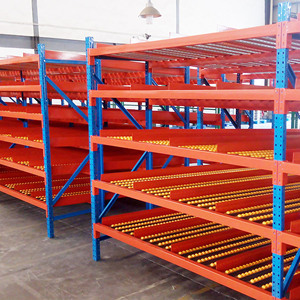

Industrial Metal Roller Picking Carton Flow Rack
Ergonomically tilted discharge trays integrated with durable ABS wheel tracks to accelerate manual order picking lines.

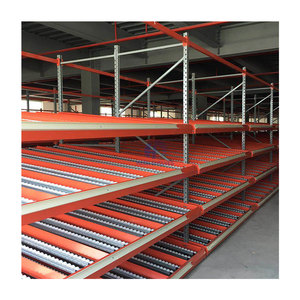

Customized Vertical Flow Track & Live Gravity Racking
Modular gravity lane architecture engineered with adjustable pitch levels for dynamic batch processing and buffer storage.
High-Capacity Narrow Aisle Live Carton Storage (2500-4000KG)
Ultra-heavy-capacity gravity rack frames suited for high-bay VNA warehouses demanding high structural rigidity.

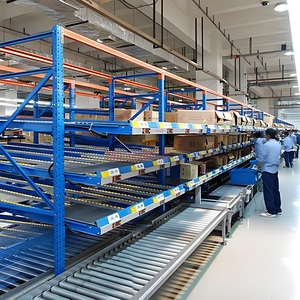

Adjustable Wheel Track Carton Flow Order Picking Rack
Flexible drop-in roller lane inserts featuring tool-less beam adjustment for rapidly evolving SKU dimensions.

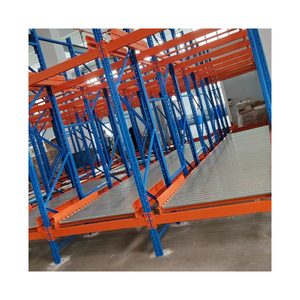

Precision OEM FIFO Gravity Carton & Pallet Live System
Factory-direct OEM carton flow rack engineered with high-grade galvanized guide rails and low-friction polymer wheels.

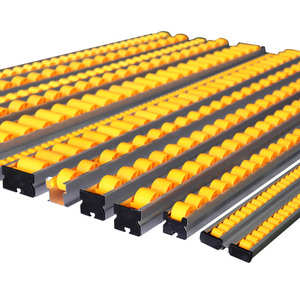

PE/ABS Roller Track Gravity Flow Rail (200KG/Shelf Load)
Engineered aluminum and plastic roller tracks designed for line-side assembly feeding and e-commerce packing stations.
Architectural Engineering & Sourcing Standards for Carton Flow Racking Systems
In modern high-density logistics, cold-chain fulfillment, and fast-moving consumer goods (FMCG) distribution centers, floor space management and picking velocity dictate profitability. Carton flow racking systems (also known as carton live storage or gravity flow shelving) represent the pinnacle of passive dynamic material handling. By harnessing inclination-driven gravity, these systems decouple replenishment from picking, enforce strict First-In, First-Out (FIFO) stock rotation, and minimize operator travel distances by up to 70% compared to conventional static shelving.
As a premier OEM/ODM Carton Flow Racking Supplier & Exporter based in Dongguan, China, Zenithrack Industrial Equipment Co., Ltd. combines over 15 years of metallurgical experience, advanced continuous roll-forming machinery, and automated robotic welding to deliver bespoke racking solutions across global markets. This guide serves as an authoritative specification manual for procurement directors, logistics engineers, and systems integrators evaluating carton flow infrastructure.
1. Kinematic Mechanics & Physics of Gravity Flow Lanes
The operational core of a carton flow rack lies in its sloped wheel beds or roller tracks. Calculating the optimal declination angle is a delicate balance of static friction coefficient ($\mu_s$), kinetic friction ($\mu_k$), package bottom rigidity, and total load mass:
- Pitch & Inclination Gradient: Standard carton flow lanes are set at an incline of 3% to 5% (approximately 1.7° to 2.9°). Heavier rigid plastic totes require smaller pitch angles (2.5% to 3.5%), whereas uneven corrugated cardboard boxes require steeper gradients (4% to 5.5%) to overcome deflection drag.
- Roller Material & Dynamics: High-impact ABS or polyethylene (PE) wheels are embedded into zinc-galvanized cold-rolled steel or extruded aluminum channels. Dual-bearing design ensures rotational torque remains under 0.05 Nm per roller wheel, granting effortless sliding for package weights ranging from 2 kg to over 50 kg per box.
- Speed Control & Separation Brake Systems: In deep-lane configurations exceeding 3 meters in flow depth, accumulated line pressure can crush front packages or block manual retrieval. Integrated speed controllers (centrifugal friction brakes) and mechanical end-stop load separators isolate the pick-face carton from upstream line pressure, safeguarding ergonomics and operator safety.
Engineering Insight: Corrugated Deflection Factor
Humidity and weight cause cardboard box bottoms to sag between rollers, increasing roll resistance. Zenithrack's OEM customized track options allow variable wheel-pitching down to 28mm spacing, guaranteeing continuous contact points and eliminating "bottoming out" stops in damp environments or cold storage units.
2. System Architecture Comparison Matrix
To contextualize where carton flow racking delivers the highest ROI and Information Gain within a material handling ecosystem, consider the comparative operational parameters below:
| Storage System Type | Stock Rotation Method | Picking Efficiency | Footprint Utilization | OEM Customization Index |
|---|---|---|---|---|
| Carton Flow Racking | Strict FIFO | Very High (Zero Travel Re-stock) | High (75%–85% Cube Efficiency) | Custom Widths, Tilts & Roller Track Pitch |
| Selective Pallet Racking | FIFO / Random Access | Moderate (High Travel Time) | Low (40%–50% Cube Efficiency) | Standardized Beam & Frame Profiles |
| Push-Back Carton Racking | LIFO (Last-In, First-Out) | Moderate | High (70%–80%) | Spring/Cart Nesting Modules |
| Static Boltless Shelving | Manual / Variable | Low (Aisle Bottlenecks) | Moderate (35%–45%) | Basic Level Height Adjustment |
| Automated AS/RS (Mini-Load) | System Controlled FIFO | Ultra High (Automated) | Maximum (90%+) | Complex Turnkey System Software |
OEM & ODM Customization Architecture: The Zenithrack Advantage
As a real factory direct manufacturer operating out of an 8,000 m² footprint with 35 sets of state-of-the-art cold roll-forming mills, laser cutters, and automatic electrostatic powder coating lines, Zenithrack provides complete original equipment and design manufacturing (OEM/ODM) capabilities tailored to international engineering standards (ISO9001, FEM, ANSI/RMI).
Structural Steel Integrity
We utilize certified Q235B and Q355B high-tensile structural steel profiles. Uprights feature precision teardrop or 50mm pitch diamond punching to ensure structural stability under dynamic load spikes up to 4,000 KG.
Line-Side Ergonomic Pick Trays
Integrated tilt trays angled at 15° to 30° present open carton contents directly to operators. This human-centric engineering reduces physical strain, eliminates wrist fatigue, and accelerates order picking accuracy by up to 35%.
Custom ESD & Surface Finishes
For electronics manufacturing and pharmaceutical cleanrooms, we offer anti-static conductive rollers (ESD-safe) and durable 80-120 micron epoxy powder coatings resistant to chemical exposure and severe humidity.
Strategic Sourcing & Industry Trends (2025–2030)
Global logistics managers evaluating order fulfillment infrastructure face escalating labor costs, inventory SKU expansion, and shortened delivery windows driven by e-commerce expectations. Procurement trends reflect several macro shifts in carton flow rack acquisition:
A. Seamless Integration with Pick-to-Light (P2L) & AMR Integration
Modern carton flow systems are no longer isolated static structures. OEM designs now incorporate customized mounting channels for digital optical Pick-to-Light (P2L) modules, wireless barcoding scanners, and Autonomous Mobile Robot (AMR) docking stations. Guided LED indicator strips above flow lanes direct workers to exact pick locations, reducing error rates to less than 0.01%.
B. Circular Steel Sourcing & Low-Carbon Manufacturing
Environmental sustainability metrics are entering enterprise procurement RFQs. Global buyers require racking manufacturers to provide carbon footprint documentation. By adopting high-grade, micro-alloyed steel profiles, Zenithrack reduces steel gauge requirements while preserving structural moment of inertia—yielding lighter shipping weights, reduced freight emissions, and 100% recyclable structural assemblies.
C. Total Cost of Ownership (TCO) vs. Initial Capital Outlay
While low-tier suppliers offer lightweight angle-iron flow racks, professional buyers evaluate long-term TCO. Poorly engineered plastic tracks crack under impact loading, resulting in costly warehouse downtime. Zenithrack’s heavy-duty aluminum track profiles and high-molecular PE rollers are tested through 100,000 continuous impact cycles, guaranteeing low operational downtime and extended service lifetimes exceeding 15 years.
Why Source Directly From Zenithrack
We are an actual manufacturing facility based in Dongguan, China—not a trading intermediary. We guarantee direct engineering oversight and total quality assurance from coil to container shipment.
Rapid Technical Response
Our dedicated engineering team reviews warehouse CAD drawings and provides structural proposals and quotations within 24 hours, ensuring your procurement timeline remains on target.
Free Samples & Layout Drawings
We provide physical sample clips of roller tracks, upright beams, and powder coat finishes free of charge (freight collect), alongside zero-cost custom CAD layout designs for your facility.
Strict In-House QC Protocols
Every batch of raw steel is tested for yield strength and chemical composition. Our dedicated QC inspectors verify hole spacing precision, weld penetration depth, and powder coating thickness before export packing.
Complete OEM/ODM Customization
Distributors and system integrators can brand racking components with custom colors, laser-etched logos, specialized pitch spacing, and custom packaging for seamless re-sale worldwide.
Reliable Export & Lead Times
Located in Dongguan near Shenzhen and Guangzhou major ports, our streamlined production schedules guarantee fast lead times (15–20 days) and hassle-free global container freight logistics.
Installation Kits & Support
We supply detailed 3D step-by-step assembly diagrams, structural engineering calculations, and complimentary installation hardware packages with every confirmed commercial order.
Carton Flow Racking Procurement FAQ
Answers to common engineering, customization, and logistics questions submitted by global warehouse managers and B2B buyers.
How do I determine the correct slope angle and roller pitch for my specific cartons?
Can carton flow tracks be retrofitted into our existing pallet racking frames?
What information is required to receive a custom OEM/ODM drawing and proposal?
- Clear height and floor dimensions of your picking area or warehouse.
- Carton/Tote specifications: Minimum and maximum length, width, height, and unit weight.
- Number of SKUs and required storage depth per lane (e.g., 2-meter to 5-meter flow lanes).
- Preferred picking orientation (flat discharge level vs. tilted ergonomic pick tray).
- Special environmental requirements (e.g., cold storage, cleanroom anti-static ESD, outdoor galvanization).
What is the maximum load capacity per square meter or per flow lane?
How does Zenithrack ensure corrosion resistance and quality control during export shipping?
What are your typical OEM production lead times and sample policies?
