Featured Logistics Pallet Storage Systems
Factory-direct high-density storage rack solutions engineered for seamless inventory turnover, maximal vertical space utilization, and intense industrial durability.
Gravity Rack Foldable Shelvesing Carton Live Rack Storage Rack VNG Narrow Aisle Racking 2500 3000 3500 4000 KG
Ultra-dense VNA & gravity carton live storage engineered for high-frequency order fulfillment. Rated for massive payload capacities up to 4000 KG per level.
Heavy Duty Warehouse Mezzanine Floor Platform with Pallet Racking For Storage Expansion
Integrated multi-tier structural steel mezzanine platform. Instantly doubles or triples facility surface area without expensive brick-and-mortar additions.
AOCHEN Collapsible Powder Coated Warehousing Logistics Mobile Gravity Pallet Roller Steel Rack
Heavy-duty dynamic roller beds combined with collapsible modular steel frames. Ideal for fast-moving FIFO inventory flows and flexible logistics centers.
Factory Price Carton Flow Rack Adjustable Wheel Track Shelving for Warehouse Order Picking
Ergonomic order picking systems with high-grade aluminum/steel flow tracks. Ensures seamless FIFO stock rotation and accelerates split-case picking speed.

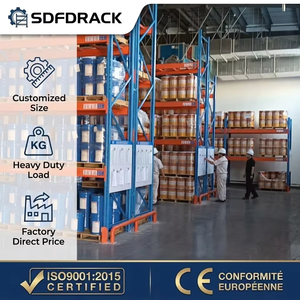

Heavy Duty Pallet Racking Warehouse High Bay Pallet Racking 2700x900x4000mm 2500kg Beam-type Steel Heavy-duty Pallet Racking
Standard heavy-duty selective beam racking manufactured from premium Q355B cold-rolled steel. 2500kg uniform load rating for standardized pallet operations.
Customized Heavy Duty Steel Mezzanine Floor Rack Warehouse Storage Platform Multi Level Industrial Shelving System Manufacturer
Tailor-made multi-tier industrial storage platform integrating heavy-duty uprights, steel decking, safety staircases, and loading gates.
Customized Warehouse Heavy Duty Portable Rack Metal Spare Steel Detachable Stackable Pallet Tire Storage System 1000KG Powder
Flexible modular stacking racks designed for bulk storage of tires, industrial coils, and heavy automotive spare parts. 1000KG payload per stack unit.
Adjustable Rail Height Multi Gear Position Heavy Duty Fully Automated Ultra High Density Storage Facility Radio Shuttle Racking
State-of-the-art semi-automated radio shuttle pallet racking. Maximizes spatial density, reduces forklift transit, and enables software-controlled FIFO/FILO picking.
OEM/ODM Logistics Pallet Storage Architecture & Manufacturing White Paper
An authoritative analysis of structural steel load mechanics, finite element analysis (FEA), surface passivation, and custom OEM/ODM logistics integration.
1. Structural Steel Metallurgy & Cold-Formed Section Mechanics
As a global OEM/ODM pallet storage rack manufacturer, our structural design framework relies strictly on high-tensile cold-rolled steel profiles, primarily utilizing Q235B and Q355B structural steel grades. Unlike basic warm-rolled or structural commercial steel, Q355B yields superior tensile strength (≥470-630 MPa) and yield strength (≥355 MPa), allowing for lighter section profiles that deliver equivalent or superior load-bearing capabilities.
The roll-forming geometry of upright columns plays a vital role in resisting torsional buckling and axial compression. Our heavy-duty racking columns feature multi-bend omega (Ω) structural profiles with up to 12 distinct deformation bends per profile cross-section. This unique structural geometric profiling raises the moment of inertia ($I_x, I_y$), dramatically increasing frame stiffness under high-bay vertical loading conditions.
| Steel Grade Standard | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) | Primary Racking Structural Application |
|---|---|---|---|---|
| Q235B (GB/T 700) | ≥ 235 | 370 - 500 | ≥ 26 | Medium duty beam connectors, bracing, wire mesh decking |
| Q355B (GB/T 1591) | ≥ 355 | 470 - 630 | ≥ 22 | High-bay upright frames, heavy-duty load beams, shuttle rails |
| SS400 (JIS G3101) | ≥ 245 | 400 - 510 | ≥ 21 | Baseplates, anchor assemblies, top ties |
| S355JR (EN 10025) | ≥ 355 | 470 - 630 | ≥ 22 | Structural H-Beam mezzanines, heavy duty cantilever arms |
2. FEA Structural Simulation & Safety Factor Engineering
Every OEM/ODM layout engineered at our manufacturing base undergoes rigorous Finite Element Analysis (FEA) using advanced stress-strain modeling software. We evaluate static frame deflection, elastic-plastic stability, dynamic forklift shock impacts, and seismic sway under peak occupancy loads.
Our engineering rules strictly enforce a structural safety factor ratio ranging between 1.5 to 1.65, exceeding standard municipal building codes. Beam deflection is strictly capped at less than L/200 (where L represents beam clear span length), preventing premature horizontal deformation, weld strain, or pallet displacement during forklift loading cycles.
Automated Robotic Welding
Continuous carbon-dioxide gas shielded welding (CO2/MAG) performed by multi-axis robotic arms ensures penetration depth uniformity, zero porosity, and high fatigue resistance across all load beam connectors.
Electrostatic Powder Passivation
Every component undergoes a 9-stage pre-treatment wash process including acid rust removal, zinc phosphate conversion, and thermosetting epoxy-polyester powder coating cured at 200°C.
Seismic & Impact Certification
Racks engineered to pass regional seismic zone criteria (AS4084-2012, RMI MH16.1, EN 15512 standards), complete with heavy-duty baseplates, floor expansion anchors, and upright safety guards.
Future Procurement Trends in Industrial Storage Systems (2025–2030)
Macro supply chain shifts, warehouse automation integration, and sustainable manufacturing standards driving next-generation racking procurement.
A. Shift Towards Automated High-Density Cubing (ASRS & Radio Shuttle)
Industrial real estate costs and warehouse labor shortages globally have accelerated the transition from conventional selective pallet racking to semi-automated and fully automated high-density storage. Traditional warehouse layouts waste up to 60% of horizontal floor footprint on forklift travel aisles. Future-proof logistics engineering prioritizes Radio Shuttle Racking Systems and Automated Storage and Retrieval Systems (ASRS).
Radio shuttle systems utilize autonomous motorized carts operating within deep racking channels. These units carry loads up to 1,500kg per pallet at travel speeds exceeding 1.1 m/s, interfaced directly with Warehouse Management Software (WMS). This trend allows enterprise facilities to achieve up to 85% space utilization efficiency while dramatically cutting forklift operational hours and fuel emissions.
B. OEM/ODM Customization & Modular Structural Flexibility
Modern e-commerce and third-party logistics (3PL) fulfillment demand rapidly reconfigurable storage hardware. B2B procurement trends show a sharp rise in demand for boltless modular designs, multi-tier mezzanine platform expansions, and hybrid rack-supported structures. B2B buyers now seek OEM/ODM partners capable of delivering custom beam lengths, varied shelf pitch adjustments (e.g., 50mm vs 75mm pitch), and custom powder-coating branding options without exorbitant tooling surcharges.
C. Green Steel, Carbon Traceability & Circular Lifecycle Auditing
Enterprise procurement teams across Europe and North America are increasingly enforcing ESG criteria upon supply chain vendors. Industrial racking manufacturers must now account for carbon footprints across raw material sourcing, manufacturing power consumption, and powder VOC emissions. Zenithrack complies with eco-friendly manufacturing metrics, utilizing recyclable Q355B steel scrap, non-toxic lead-free epoxy coatings, and low-emission production lines.
Why Partner with Zenithrack Industrial Equipment?
Direct factory infrastructure, proven engineering pedigree, and complete end-to-end OEM/ODM execution for global project distributors and logistics operators.
Zenithrack Industrial Equipment Co., Ltd. operates as a leading real factory manufacturer in China, boasting over 15 years of continuous production excellence. Spanning an expansive 8,000 square meter modern manufacturing facility, our plant is outfitted with over 35 specialized sets of automated equipment—including cold profile roll-forming machines, automatic laser tube cutters, robotic welding cells, and an automated continuous electrostatic powder-coating line.
Having established our reputation as a top-ten warehouse racking supplier within China's demanding domestic logistics sector—achieving annual sales volumes surpassing CNY 100 Million—we bring unmatched manufacturing reliability to international buyers. Our workforce of 75+ qualified engineers, technicians, and quality assurance personnel oversees every order from CAD structural calculation to container loading.
100% Factory Direct OEM/ODM
Eliminate intermediary trading margins. Work directly with structural engineers who design racks to your exact warehouse layout drawings, pallet dimensions, and weight specs.
Free Layout Design & CAD Rendering
Submit your warehouse floor plans and receive a comprehensive 2D CAD layout, 3D structural rendering, and load capacity evaluation within 24 hours at zero charge.
Rigorous Pre-Shipment QC Gates
Dedicated quality inspectors test raw steel chemistry, profile dimensions, weld integrity via ultrasonic defect detectors, and powder paint thickness (80-100μm standard).
Frequently Asked Questions (Procurement FAQ)
Technical and commercial clarity for warehouse managers, industrial buyers, and global racking system importers.
How do I choose between selective, drive-in, and radio shuttle racking systems?
Selection depends on your SKU diversity, inventory turnover method (FIFO vs. LIFO), and available warehouse height:
- Selective Pallet Rack: Ideal for high-SKU inventory requiring 100% direct access to every pallet. Best for standard distribution centers with frequent picking cycles.
- Drive-In Racking: Best suited for low-SKU, high-volume homogenous products where LIFO (Last-In-First-Out) rotation is acceptable and floor space is strictly limited.
- Radio Shuttle Racking: Premium semi-automated choice for ultra-high density. Supports both FIFO and LIFO, eliminates forklift entry into rack lanes, accelerates loading speed by up to 50%, and operates flawlessly in cold-storage environments down to -25°C.
What exact information is required to receive a custom OEM/ODM racking layout design?
To prepare an accurate structural calculation and CAD layout, our engineering team requires:
- Architectural floor plan or CAD drawing indicating warehouse dimensions, column grid placement, wall locations, and door openings.
- Clear height underneath roof trusses, light fixtures, or sprinkler systems.
- Pallet dimensions including load overhang (Width × Depth × Height) and maximum total pallet weight.
- Forklift specifications: Minimum aisle turning radius, maximum lift height, and mast height.
- Operational environment parameters (ambient room temperature vs cold storage, local seismic zone requirements).
Do you provide free steel racking samples and installation drawings?
Yes. Zenithrack provides free physical material samples—including roll-formed beam sections, upright column samples, frame connectors, and powder coating color swatches (freight collect). Furthermore, detailed 2D CAD assembly blueprints, 3D exploded views, and installation instruction manuals are included with every project order. Basic assembly hand-tools are also shipped inside project containers.
How does Zenithrack execute quality control across production phases?
Our Quality Management System operates across five mandatory quality gates:
- Raw Material Inspection: Steel thickness tolerance (±0.05mm) and chemical tensile testing per coil batch.
- Roll-Forming & Punching Accuracy: Laser check of hole pitch spacing (±0.1mm) along column length.
- Weld Integrity Testing: Ultrasonic inspection of beam connector welds to eliminate cold welds or penetration gaps.
- Surface Passivation Audit: Coating adhesion cross-hatch test, impact resistance test, and film thickness gauge check (80-100μm).
- Pre-Shipment Trial Assembly: Mock assembly of select frames and beams to verify clip engagement and structural plumbness prior to export packing.
Can products be fully customized under OEM distributor branding?
Absolutely. We specialize in OEM/ODM manufacturing for international material handling distributors, racking brand owners, and general contractors. Custom options include specific RAL color matching, customized punching patterns, private brand logo sticker application or stamping, custom carton packaging, and branded instruction literature.
What international structural compliance standards do your storage systems meet?
Our pallet storage systems are designed, calculated, and manufactured in full accordance with leading international engineering specifications, including FEM 10.2.02 (European Federation of Materials Handling standard), EN 15512 (Steel static storage systems - Adjustable pallet racking systems), RMI ANSI MH16.1 (Rack Manufacturers Institute standard), and AS4084-2012 (Australian Standard for Steel Storage Racking).
