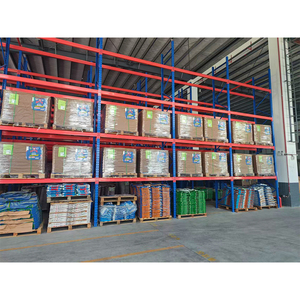

VNA Pallet Racking System Very Narrow Aisle High Bay Storage Solutions
Dynamic Storage Pallet Gravity Flow Racking System with Roller Tracks
Heavy Duty Durable Steel Pallet Racking Rack for Carton Flow Storage
Heavy-Duty Thickened Multi-Layer Detachable Beam Pallet Storage Frame
Multi-Level Pallet Racking with H-Style Bracing & Reinforced Safety Beams
High Capacity Steel Stacking Racks 3 Layer Heavy Duty Garage Shelving
White Paper: Engineering Standards for OEM/ODM Pallet Racking with Integrated Safety Barriers
In modern high-density distribution centers and automated industrial facilities, warehouse safety and structural longevity are intrinsically linked to racking design. Rack frame failures caused by forklift collisions account for over 60% of catastrophic warehouse collapses worldwide. Sourcing customized OEM/ODM pallet racking systems engineered with integrated safety barriers is no longer just an operational preference—it is a critical compliance requirement under international safety standards such as ANSI MH16.1, EN 15512, and OSHA 1910.28.
As a premier China-based original equipment manufacturer (OEM) and original design manufacturer (ODM) with over 15 years of industrial structural fabrication experience, Zenithrack Industrial Equipment Co., Ltd. produces structural rack components tailored specifically to heavy dynamic loads, severe seismic activity zones, and harsh material handling environments.
1. The Physics of Rack Protection: Frame Column Guards vs. End-of-Aisle Barriers
Safety barriers in a high-bay pallet racking facility serve two distinct dynamic roles: localized upright protection and macro structural end-of-aisle protection.
- Heavy-Gauge Column Protectors (Upright Wraps): Positioned at the base of intermediate frame posts, these wrap-around steel guards (formed from 4mm to 6mm thick cold-rolled Q355B steel) absorb low-velocity impacts from forklift outriggers and pallet corners during tight turn-in maneuvers.
- Heavy-Duty End-of-Aisle Barriers (Tubular & Structural C-Channel Guards): Positioned at the exposed ends of rack rows where material handling traffic is heaviest, these barriers are floor-anchored using dual expansion bolts per foot plate. They are engineered to dissipate kinetic energy up to 10,000 Joules without transferring impact force directly into the racking uprights.
- Back-of-Rack Safety Mesh & Anti-Spill Netting: Integrated rear steel wire decking and high-tensile safety screens prevent loose cartons and palletized goods from dropping into active working aisles or lower mezzanine levels.
Anchor Dynamic Load Capacity
Sub-floor chemical and mechanical anchors engineered to withstand shearing forces exceeds 45 kN per mounting node.
High-Grade Q355B Steel
Yield strength rated at ≥355 MPa, delivering superior plastic deformation resistance under off-center dynamic loads.
Duplex Surface Protection
Electrostatic epoxy powder coating (60-80μm) over zinc phosphate pre-treatment for 500-hour salt spray endurance.
2. Technical Specification & OEM Fabrication Comparison Matrix
When procuring customized industrial pallet racking from OEM factories, procurement directors and logistics engineers must evaluate material gauge, beam profiles, safety factor ratios, and surface finishing technologies. Below is our structural baseline specification table:
| Racking System Type | Structural Steel Grade | Beam Profile / Thickness | Safety Barrier Spec | Max Bay Load | Target Application |
|---|---|---|---|---|---|
| Heavy-Duty Selective Rack | Q235B / Q355B Cold-Rolled | 80x50 to 140x50mm Box (1.5-2.5mm) | U-Shape Outer Wrap + End Tubular Guard | Up to 4,500 kg / Beam Level | General 3PL, FMCG, Warehousing |
| Radio Shuttle High-Density | Q355B Structural Steel | Custom Guide Rail Beam (2.0-3.0mm) | Heavy Floor Rail Guide & Entry Crash Post | Up to 1,500 kg / Pallet Position | Cold Storage, Food & Beverage Batching |
| Very Narrow Aisle (VNA) | High-Tensile Cold-Formed | 100x50 to 160x50mm Box (2.0-3.0mm) | Precision Floor Guidance Rails & Bumpers | Up to 5,000 kg / Level | High-Bay Logistics Hubs (Up to 15m) |
| Dynamic Gravity Flow Rack | Q235B Cold-Rolled Steel | C-Channel Structural Beam (2.0mm) | Impact Absorption End-Stop Bumper Guards | Up to 1,200 kg / Pallet Position | FIFO First-In-First-Out Logistics |
| Multi-Tier Mezzanine Rack | Structural H-Beam & Cold-Formed | H-Section (150x150 to 300x150mm) | Full Perimeter Guardrails & Swing Safety Gates | 500 to 1,500 kg / m² Floor Area | E-Commerce Picking & Small Parts Sorting |
Future Procurement Trends in Industrial Storage & Safety Systems
As global supply chains transition toward smart warehousing, autonomous material handling, and stringent workplace safety mandates, the global market for OEM/ODM pallet racking with safety barriers is experiencing structural shifts. Strategic buyers must account for three decisive emerging trends:
Trend 1: Automated Guided Vehicle (AGV) & AMR Compatibility
The rise of Autonomous Mobile Robots (AMRs) and AGVs requires absolute dimensional tolerance in rack roll-forming. Traditional manual forklift tolerances (±5mm) are unacceptable for robotic arm grabber clearances. Modern OEM contracts now mandate laser-guided roll-forming tolerances under ±0.5mm alongside low-profile, floor-mounted magnetic or optical safety barriers designed to prevent robot sensor blind-spot collisions.
Trend 2: Modular Snap-On vs. Anchored Hybrid Barriers
Traditional safety guards required heavy floor drilling, damaging warehouse slab integrity over time. Sourcing trends favor hybrid protection systems: heavy-duty anchored steel barriers at main aisle intersections combined with high-impact polymer or snap-on steel column protectors along internal rack columns. This reduces maintenance replacement times by over 70% while preserving concrete slab integrity.
Trend 3: Strict Environmental, Social, and Governance (ESG) Compliance
Tier-1 multinational logistics brands are requiring suppliers to provide Environmental Product Declarations (EPDs). Direct manufacturers utilizing green steel, closed-loop zero-emission powder coating lines, and low-VOC surface treatments are capturing high-margin global tenders.
Zenithrack Enterprise Capabilities
With an 8,000 m² modern manufacturing plant, 35 sets of automated profile roll-forming machines, robotic welding stations, and an experienced workforce of over 75 professionals, Zenithrack Industrial Equipment Co., Ltd. is ranked among Southern China’s top enterprise-grade racking suppliers with annual sales exceeding CNY 100 million.
We provide full-scope OEM and ODM services for international racking distributors, system integrators, and warehouse contractors. From initial 2D/3D CAD layout engineering to custom color matching, load testing, and export packaging, our in-house team ensures absolute precision from raw steel coil to final container loading.
