Structural Engineering Insights
Structural vs. Roll-Formed Pallet Racking: Engineering Architecture & Load Capacity Analysis
When procuring industrial racking systems, warehouse operations face a fundamental structural choice between Hot-Rolled Structural Steel Racking and Cold-Rolled Roll-Formed Racking. As an established OEM/ODM factory and global exporter, our engineering team manufactures both architectures under strict FEM 10.2.02 and RMI (Rack Manufacturers Institute) standards.

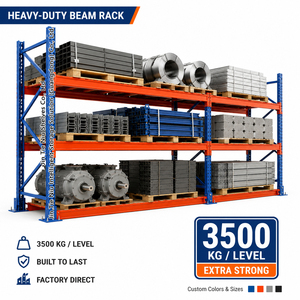

Structural steel pallet racking is fabricated from hot-rolled C-channel structural steel components. It offers exceptional impact resistance against heavy forklift collisions, making it the premier system for high-throughput distribution centers, cold storage facilities, and heavy manufacturing environments (such as motor and coil storage up to 3500kg+ per level). Conversely, roll-formed racking utilizes cold-rolled sheet steel (typically Q235B or Q355 grade) shaped into teardown or omega-profile uprights, offering exceptional cost-efficiency and quick vertical adjustability in 50mm or 75mm increments.
| Performance Metric |
Structural Steel Racking (Hot-Rolled) |
Roll-Formed Racking (Cold-Rolled) |
Engineered Hybrid (OEM Custom) |
| Steel Grade & Yield Strength |
ASTM A36 / Structural C-Channel ($f_y \ge 250\text{ MPa}$) |
Q235B / Q355 High-Strength Strip ($f_y \ge 355\text{ MPa}$) |
Structural Columns + Roll-Formed Step Beams |
| Forklift Impact Resistance |
Ultra-High (Solid steel construction resists heavy impact) |
Moderate (Requires upright protectors/post guards) |
High (Reinforced base frame & heavy lower frame) |
| Max Beam Bay Load |
Up to 5,000 kg / level (Heavy Die & Coil Storage) |
Up to 3,000 kg / level (Standard Pallet Loads) |
Up to 4,000 kg / level (Tailored Heavy Duty) |
| Connection Mechanism |
Structural Bolt-and-Nut Connections (Rigid Frame) |
Self-Locking Hook & Safety Pin (Tool-Free Adjustment) |
Bolted Connectors with Heavy Locking Pins |
| Best Application Environment |
Freezers (-30°C), Heavy Machinery, High-Collision Hubs |
3PL Warehouses, FMCG, Standard Pallet Distribution |
Automated Radio Shuttle & Multi-Tier Systems |
Our OEM/ODM design capabilities allow procurement teams to customize structural beam spans, frame depths, post profiles, and anchoring footplates. Every system undergoes finite element modeling (FEM) to guarantee dynamic deflection ratios do not exceed $L/180$, preventing structural fatigue under sustained peak payloads.
Global Supply Chain Intelligence
Future Procurement Trends in Industrial Storage & OEM/ODM Racking (2025–2030)
Global logistics managers and industrial warehouse developers face shifting micro-economic and technological demands. The modern warehouse is transitioning from passive static storage to high-density, automated dynamic ecosystem structures. Below are the key engineering trends driving warehouse rack procurement over the coming decade:
1. Semi-Automated & AS/RS Compatibility

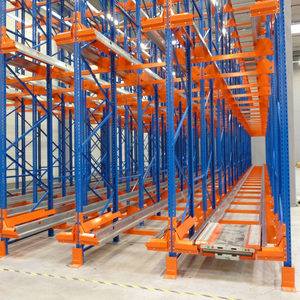

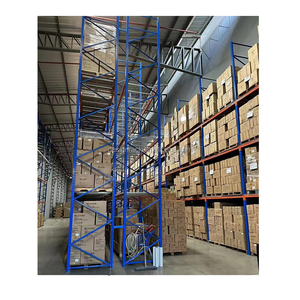

Traditional selective racking is increasingly giving way to semi-automated Radio Shuttle Racking and fully automated AS/RS crane systems. OEM contracts now demand tolerances down to $\pm 1.5\text{ mm}$ across vertical rails to allow seamless movement of autonomous shuttle carts.
2. Eco-Friendly Powder Coatings
Environmental regulations demand VOC-free, heavy-metal-free electrostatic powder coatings. Modern buyers demand thermosetting epoxy-polyester coatings compliant with REACH and RoHS standards, delivering 500+ hours of neutral salt spray corrosion resistance (ISO 9227).
3. Modular OEM/ODM Adaptability

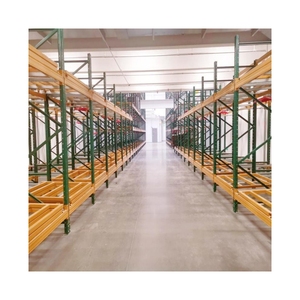

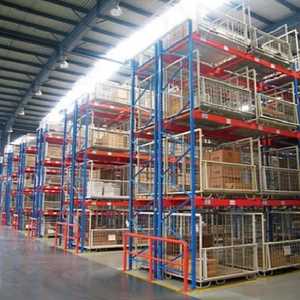

Supply chain volatility requires warehouses to reconfigure floor plans dynamically. Modern OEM structural racking designs feature interchangeable connectors, allowing conversion from Selective Racking into Drive-In or Push-Back configurations with minimal new structural steel components.
As enterprise clients seek long-term cost optimization, total cost of ownership (TCO) calculation models place greater emphasis on structural durability and safety features, such as beam safety locks, frame bracing ratios, and seismic anchoring systems designed for zone 3/zone 4 seismic performance.
Material Science & R&D
Racking Industry Development Trends & Engineering Innovations
The manufacturing process for industrial warehouse racking has experienced significant technological advances over recent years. As an exporter serving competitive international markets, our production infrastructure has evolved to embrace cutting-edge metallurgy and automation techniques.
A. High-Strength Cold-Rolled Steel Profiles (Q355 vs. Q235B)
While standard Q235B carbon steel remains widely used for standard beam applications, the industry is increasingly adopting low-alloy, high-strength Q355 steel for upright columns and long-span beam profiles. Q355 provides a yield strength $f_y \ge 355\text{ MPa}$, representing a 40%+ increase in structural yield performance over traditional mild steel. This allows our engineers to reduce structural deadweight while increasing total bay capacity, resulting in lower international freight costs per pallet storage location.
B. Robotic Automated Welding & Precision Roll-Forming
Production consistency directly dictates structural safety. Automated continuous roll-forming production lines with inline punch presses ensure hole-pitch accuracy within $\pm 0.1\text{ mm}$ across 12-meter upright columns. Robotic MIG welding arms perform continuous seam welding on beam-connector brackets, eliminating human error, micro-cracks, and localized strain concentrations.
C. Dynamic Flow & High-Density Gravity Systems

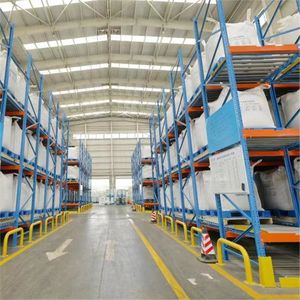

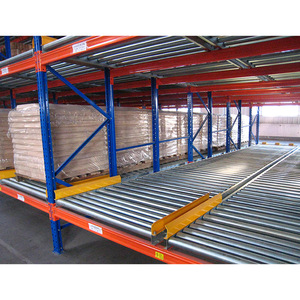

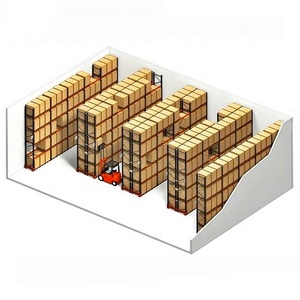

Logistics facilities handling perishable goods, pharmaceutical stock, and fast-moving consumer goods (FMCG) require strict First-In, First-Out (FIFO) material flows. Modern gravity roller flow racks and push-back systems incorporate magnetic speed controllers and brake rollers, preventing runaway pallet momentum along extended inclined tracks.
Direct Factory Capability
Why Partner with Zenithrack: Real Factory Manufacturing & Global OEM/ODM Exporter
Zenithrack Industrial Equipment Co., Ltd. is a dedicated China-based racking manufacturer, not an intermediary trading company. Located in the manufacturing hub of Dongguan, Guangdong, we operate an expansive 8,000 m² production facility equipped with over 35 sets of heavy-duty roll-forming mills, automated punch presses, robotic welding stations, and an integrated electrostatic powder coating line.
With more than 15 years of continuous growth, Zenithrack established a dominant position in China's domestic logistics market, achieving annual sales exceeding CNY 100 million. Today, our structural design expertise, engineering team of 75+ professionals, and comprehensive export control processes serve distribution partners, logistics contractors, and warehouse operators worldwide.
In-House CAD & Structural Design
We provide complimentary warehouse layout engineering and 3D CAD installation drawings tailored to your building clear heights, floor slab capacity, forklift turning radii, and operational workflows.
Rigorous Quality Control (QC)
Our dedicated QC engineers sample raw steel coil batches, monitor hole punching pitch tolerances, inspect weld penetration, and conduct coating thickness and cross-hatch adhesion testing prior to export packing.
Export Packing & OEM Branding
Racking components are bundled with steel strapping, protective film wrapping, and timber corner guards to withstand long sea transit. We provide custom branding, private labeling, and custom color options for regional distributors.
Our manufacturing excellence is trusted by global enterprise brands, including industry leaders such as BYD, SF Express, FedEx, Cooper, and Huawei. Whether you require a single container order of standard selective pallet racking or a multi-tier structural mezzanine system, our technical sales team delivers rapid quotes within 24 hours.
Buyer's Knowledge Base
Industrial Racking Procurement: Frequently Asked Questions (FAQ)
Below are technical answers to common questions asked by international buyers, facility managers, and engineering contractors when purchasing pallet racking systems from China.
Q1: How do I choose between Selective, Drive-In, and Radio Shuttle Racking?
Choose Selective Pallet Racking when managing numerous SKUs with direct 100% access requirement for every pallet. Select Drive-In Racking for low-SKU, high-volume inventory where high floor density is preferred over immediate pallet accessibility (LIFO inventory control). Select Radio Shuttle Racking when seeking maximum storage density combined with fast forklift handling times and flexible FIFO/FILO operational modes.
Q2: What exact warehouse data is required to generate a custom OEM layout drawing?
To generate an accurate CAD layout and load matrix, please provide:
- Warehouse layout architectural drawing or floor dimensions (length, width, clear height under roof truss or sprinkler lines).
- Pallet dimensions (Width x Depth x Height, including goods overhanging boundaries).
- Maximum weight load per pallet.
- Forklift model details (minimum aisle width requirement, turning radius, maximum lift height).
- Operating temperature environment (ambient, cold storage, freezer) and local seismic requirements.
Q3: Do you provide free steel racking samples and structural CAD drawings?
Yes. We supply free physical component samples (beam profiles, upright sections, safety locks) with freight collect. Engineering floor plans, elevation drawings, and structural CAD designs are generated free of charge upon receipt of your project requirements.
Q4: What quality assurance protocols does Zenithrack implement before shipment?
Every production batch undergoes a 5-step quality inspection: 1) Raw steel tensile and thickness verification; 2) Hole pitch accuracy check; 3) Robotic welding seam non-destructive check; 4) Electrostatic coating thickness (60–90 micron range) and adhesion testing; 5) Trial assembly and bundle loading check before container sealing.
Q5: Can racks be customized with private colors, logos, and custom structural specifications?
Yes. As a direct OEM/ODM factory, we support full custom RAL color powder coating, custom upright profile stamping, private branding labels on frame columns, and custom beam length dimensions tailored to regional pallet standards (EURO pallets, US 48"x40" pallets, Australian pallets).
Q6: How are pallet racks packaged for international container shipment?
Upright frames and beams are bundled using steel strapping with protective plastic corner caps and cardboard interlayers. Smaller components (baseplates, row spacers, safety pins, bolts) are packed in heavy-duty wooden crates or reinforced corrugated cartons on export pallets to prevent transit damage.
Q7: What is the typical production lead time for a 40ft high-cube container order?
Standard lead time for 1 to 3 40ft High Cube containers of standard Q235B/Q355 selective racking is 14 to 21 days from order confirmation and deposit receipt. Custom colors or complex automated shuttle systems typically take 25 to 30 days.
