Featured Bulk Material Storage Systems
Factory-direct heavy-duty pallet racks engineered for high point-loads, cold storage resilience, and automated warehouse integration.

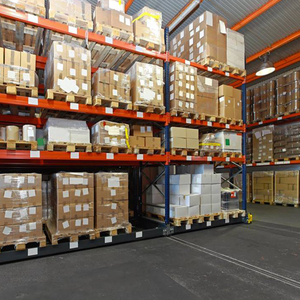

Certificate Heavy Duty Metal Storage Rack Mobile Racking Adjustable Pallet Racking System 1300KG 1400KG 1500KG Pounds Tons

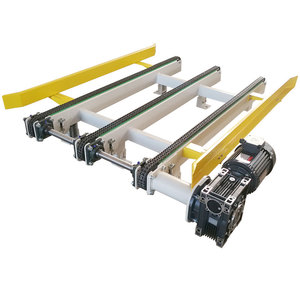

Custom Chain Conveyor Heavy Duty Pallet Conveyor System

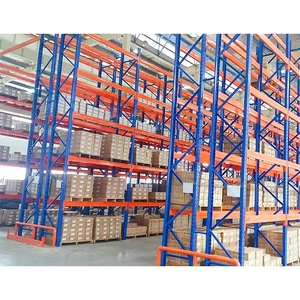

Steel Racking Solutions Heavy Duty Storage Shelves Pallet Racking System Warehouse Storage

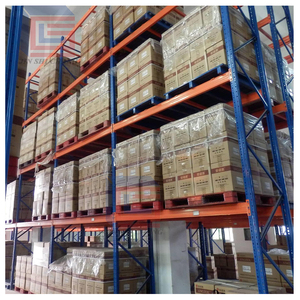

Industrial Heavy Duty Steel Pallet Rack Warehouse Shelving System For Storage, Distribution Center And Factory Use

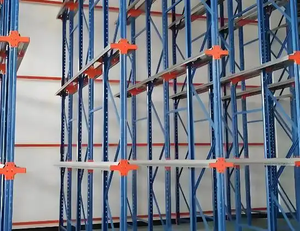

High Density Narrow Aisle Racking for Factory Warehouse Material Storage

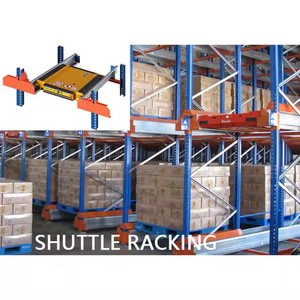

High-Density Automatic Four Way Shuttle Rack Radio Shuttle Rack System With Shuttle System

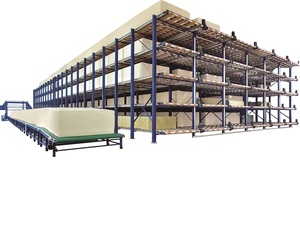

Foam Block Rack Storage System

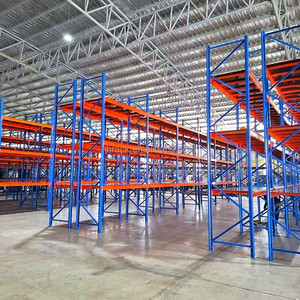

ODM Adjustable Beam Rack Industrial Heavy Duty Storage Shelves System Stacking Units Metal Rack Warehouse Steel Pallet Racking
Industrial White Paper: Structural Engineering & Physics of Bulk Material Pallet Racking
Understanding yield strength, cold-formed structural integrity, deflection metrics, and seismic safety in modern warehouse logistics.
Modern supply chain logistics demand an unprecedented level of volumetric density, structural safety, and operational elasticity. Bulk material pallet racking systems form the critical physical backbones of modern distribution hubs, cold storage facilities, raw material reserves, and automated fulfillment centers. Unlike standard retail shelving, heavy-duty bulk racking must safely hold static loads scaling up to 3,500 kg (7,700 lbs) per beam level and dynamic total frame loads exceeding 24,000 kg per bay structural column.
When evaluating a global OEM racking manufacturer or exporter, facility managers and procurement directors must look beyond basic dimensions and analyze cold-rolled steel metallurgical composition, yield strength thresholds ($f_y$), surface finishing resilience, and elastic strain formulas under localized stress concentrations.
Metallurgical Grades & Yield Strength
Top-tier bulk pallet racking utilizes high-grade cold-rolled structural steel, primarily Q235B and Q355B (equivalent to EN 10025 S355 and ASTM A1011 Grade 50). Q355B structural columns provide a minimum yield strength of 355 MPa, allowing engineered wall thickness reduction without sacrificing total moment resistance ($M_u$).
Beam Deflection Standards ($L/240$)
Per international FEM 10.2.02 and RMI (Rack Manufacturers Institute) guidelines, maximum vertical beam deflection under fully loaded conditions must not exceed Span Length divided by 240 ($L/240$). Superior profile geometry prevents permanent plastic deformation under repeated forklift impact and sustained dead loads.
Seismic Bracing & Anchor Mechanics
Bulk material storage in high-seismic zones requires dynamic lateral sway stiffness ($K_\theta$). Engineering calculations integrate K-bracing, X-bracing diagonals, welded heavy-duty base plates, and chemical wedge anchor bolts to resist shear stress ($\tau$) and axial uplift vectors caused by seismic acceleration ($a_g$).
Corrosion Mitigation: Thermosetting Epoxy Powder Coating vs. Hot-Dip Galvanizing
Bulk material environments—ranging from high-humidity coastal warehouses to sub-zero chemical storage facilities—expose steel surfaces to severe oxidation. Reputable exporters employ dual-treatment surface protection: an automated multi-stage iron phosphate pre-washing wash followed by electrostatically deposited thermosetting epoxy powder coating (60–90 μm thickness) cured at 200°C (392°F). For high-moisture or fertilizer storage, Hot-Dip Galvanizing (HDG) compliant with ISO 1461 delivers a protective zinc barrier upwards of 55–85 μm, guaranteeing a 25+ year service life.
Global Benchmarking: Top 10 Bulk Material Pallet Racking Suppliers & Exporters
An independent analytical comparison of leading global manufacturers, engineering capabilities, and export capacities.
Selecting an enterprise bulk material pallet racking supplier requires balancing engineering design rigors, production scalability, factory-direct pricing, and customization capabilities. Below is an evaluation of the world's leading 10 racking manufacturers and exporters serving international supply chains in 2025.
| Manufacturer / Supplier | Headquarters | Core Engineering Focus | Primary Steel Grade | Custom OEM Capability | Global Reach |
|---|---|---|---|---|---|
| Zenithrack Industrial Equipment | Guangdong, China | Heavy Pallet Racks, Shuttle Racks, Mezzanines | Q235B / Q355B High Tensile | Full Customization (OEM/ODM) | Global (50+ Countries) |
| SSI Schaefer Group | Neunkirchen, Germany | Automated Systems & Warehouse Logistics | EN 10025 S355 Structural | Standard / Modular Systems | Global Network |
| Mecalux, S.A. | Barcelona, Spain | Selective & Automated Pallet Racking | European Standard Steel | Semi-Customized Projects | Europe, Americas |
| Jungheinrich AG | Hamburg, Germany | High-Bay Racking & Intralogistics | High-Grade Cold Formed Steel | System Integration Focus | Global Logistics Hubs |
| Interroll Group | Sant'Antonino, Switzerland | Dynamic Flow Racks & Conveyors | Certified Structural Steel | Standardized Components | Worldwide Distribution |
| Daifuku Co., Ltd. | Osaka, Japan | Automated Storage & Retrieval (AS/RS) | JIS G3101 SS400 / SS490 | Turnkey Automation OEM | Asia, North America |
| Stow Group | Spiere-Helkijn, Belgium | Heavy-Duty Pallet & Drive-In Systems | EN High Grade Steel | Custom Engineering Layouts | Europe, Middle East |
| Dexion (Constructor Group) | Oslo, Norway | Industrial Shelving & Cantilever Racks | European Structural Steel | Standard & Custom Racks | EMEA & APAC |
| Frazier Industrial Company | New Jersey, USA | Structural Steel Heavy Pallet Racks | Hot-Rolled Structural Channels | Custom Heavy-Duty Racks | North America |
| Ridg-U-Rak, Inc. | Pennsylvania, USA | Roll-Formed & Structural Pallet Racks | ASTM Standard Steel | Modular Engineering | Americas |
1. Zenithrack Industrial Equipment Co., Ltd. (China)
Market Position & Experience: With over 15 years of focused structural manufacturing, Zenithrack has grown into a premiere China-based exporter of heavy-duty pallet storage systems, radio shuttle racks, mold storage units, and multi-tier structural mezzanines. Operating an expansive 8,000 m² factory equipped with 35+ automated cold-roll forming, robotic laser welding, and automated powder coating lines, Zenithrack achieves annual sales exceeding 100 Million CNY.
Competitive Advantage: Zenithrack provides real factory-direct pricing without distributor markups, complete custom OEM/ODM solutions, zero-cost CAD layout drawings, structural finite element analysis (FEA), and rapid turnaround times. Every rack component is manufactured under ISO-certified quality assurance controls.
Consult Zenithrack Engineers2. SSI Schaefer & Mecalux Analytical Profile
Western European Engineering Benchmarks: SSI Schaefer and Mecalux represent premium Tier-1 intralogistics providers specializing in vast, fully automated AS/RS high-bay developments. Their systems excel in standardized robotic compatibility, though upfront capital expenditure (CAPEX) and custom OEM engineering lead times are significantly higher than Asian tier-1 manufacturers.
Procurement Trade-offs: Buyers seeking cost-effective structural scalability for warehouse expansions frequently partner with direct manufacturing exporters like Zenithrack to lower total cost of ownership (TCO) while matching strict FEM and RMI load safety margins.
Request Cost ComparisonFuture Procurement Trends in Heavy-Duty Bulk Storage (2025–2030)
Key technological innovations shaping structural design, warehouse automation, and sustainable steel procurement.
1. Four-Way Radio Shuttle & AMR Integration
Traditional Drive-In racking is rapidly giving way to High-Density Four-Way Radio Shuttle Racking Systems. By deploying self-powered, remote-controlled shuttle vehicles into deep storage channels, operations eliminate forklift entry into rack structures, increasing pallet handling throughput by 40% and drastically reducing collision damage.
2. Structural Heavy-Duty Mezzanines (H-Steel)
With industrial land costs rising globally, logistics managers are expanding vertically. Heavy-duty H-Steel structural mezzanine platforms allow facilities to install overhead storage, office spaces, or sorting machinery above ground-level pallet racks, effectively doubling floor area without building additions.
3. Smart IoT Sensor Monitoring & Deflection Alerts
Next-generation smart pallet racking integrates real-time strain gauges and optical displacement sensors. These IoT modules detect beam overloading, uncalibrated tilt angles, or structural micro-cracks post-impact, instantly alerting safety managers before catastrophic structural collapse occurs.
4. Eco-Friendly Powder Coatings & Green Steel
Corporate sustainability mandates require lower embodied carbon in warehouse hardware. Leading exporters are adopting green steel production practices (EAF - Electric Arc Furnace processing) and zero-VOC solvent-free electrostatic powder coatings to comply with EU CBAM (Carbon Border Adjustment Mechanism) environmental standards.
Why Global Supply Chains Partner with Zenithrack
Zenithrack Industrial Equipment Co., Ltd. is not a trading broker or third-party distributor. We operate a fully integrated, state-of-the-art manufacturing campus in Dongguan, China, delivering real factory-direct engineering values to global partners.
Our 75+ dedicated staff includes senior structural engineers, CAD specialists, and certified quality inspectors who ensure every beam, upright frame, and locking pin exceeds global load expectations.
Free Structural CAD Layouts
Send us your floor plan and floor load ratings; our team delivers optimized 2D/3D CAD layouts at zero cost.
Custom OEM / ODM Manufacturing
Tailored column heights, beam spans, surface colors (RAL palette), and brand logo stamping for distributors.
Strict Multi-Stage QC Inspections
Raw steel ultrasonic inspection, hole-punching pitch verification, weld seam testing, and powder coat thickness checks.
Export-Grade Container Packing
Steel strip bundling, protective bubble wrapping, wooden skid packing, and anti-rust moisture barrier shielding.
Frequently Asked Questions (Procurement Guide)
Expert answers from our chief structural engineers regarding bulk material racking selection, safety, and international sourcing.
- Selective Pallet Racking: Ideal when you have high SKU diversity and require 100% immediate access to every individual pallet. Standard density, lowest initial cost.
- Drive-In Racking: Best for high-volume, low-SKU goods where Last-In, First-Out (LIFO) inventory management is acceptable. High spatial density but slower forklift handling times.
- Radio Shuttle Racking: Premium semi-automated solution for maximum density with rapid throughput. Supports both FIFO and LIFO rotation, minimizes forklift rack collisions, and reduces labor costs.
- Warehouse floor plan drawing (PDF or CAD) displaying building columns, doors, and clear height under sprinkler/roof trusses.
- Pallet load dimensions: Width (W) × Depth (D) × Height (H) including goods weight per pallet.
- Forklift equipment specifications: Maximum lift height, turning radius, and aisle clearance requirements.
- Operating environment: Ambient warehouse, cold storage (-25°C), or outdoor corrosive area.
- European Standard: FEM 10.2.02 & EN 15512 (Steel Static Storage Systems).
- American Standard: RMI (Rack Manufacturers Institute) MH16.1 design specifications.
- ISO Certification: ISO 9001 quality system management for manufacturing tolerances.
- Raw material steel coil tensile and yield strength inspection.
- Dimensional roll-forming pitch accuracy checks (±0.5mm tolerance).
- Robotic weld seam penetration and non-destructive crack testing.
- Cross-hatch adhesion and thickness testing of the cured powder coating.
- Trial assembly of frame components prior to bundle packaging.
Transform Your Warehouse Volumetric Efficiency Today
Connect directly with Zenithrack's senior structural engineering team for a customized layout, load calculation, and factory-direct export proposal within 24 hours.
Get a Quote
