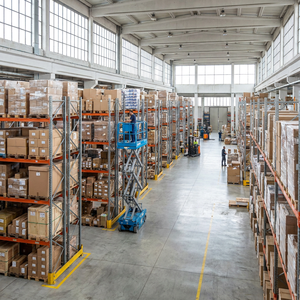

Industrial Heavy-Duty Warehouse Steel Pallet Racking System
Contact Us

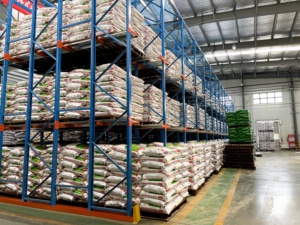

Heavy-Duty Radio Shuttle Racking for Cold Storage & High-Density Logistics
Contact Us
Q235B/Q355B Steel Drive-In Racking System (CE Certified, 2000kg/Level)
Contact Us

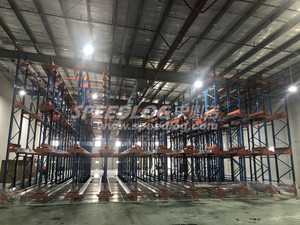

Semi-Automated Pallet Shuttle High-Density Runner Solution
Contact Us
Heavy-Duty Industrial Pallet Racking (1000kg – 3000kg Load / Tier)
Contact Us

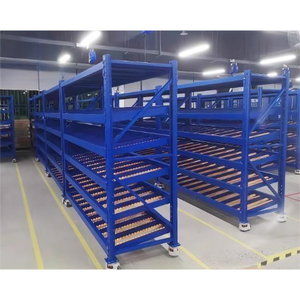

Adjustable Gravity Flow & Carton Flow FIFO Roller Racking System
Contact Us

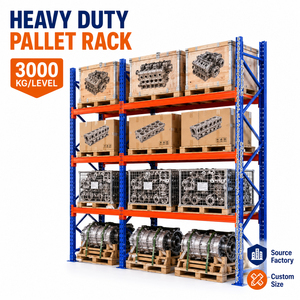

3000KG Ultra Heavy-Duty 4-Level Pallet & Integrated Carton Rack
Contact UsEngineering & Sourcing Long Load Pallet Racking from Top China Factories
A Comprehensive Technical Whitepaper on Structural Integrity, Metallurgy, Space Utilization, and Vendor Selection for Global Supply Chain Managers.
In modern industrial logistics, managing non-standard geometry, extra-wide unit loads, and long heavy materials represents a complex engineering challenge. Standard selective pallet racks—designed primarily for conventional ISO/Euro pallets (800mm to 1200mm widths)—often fail to deliver the structural stiffness, beam span clearance, or flexural rigidity required for long load storage. When sourcing long load pallet racking systems and cantilever solutions directly from China’s leading manufacturing hubs like Dongguan, buyers must evaluate technical parameters that go far beyond surface price quotes.
This technical procurement report breaks down the structural physics, material standards, anti-buckling factors, automated manufacturing benchmarks, and factory audit criteria required to commission high-performance racking systems capable of handling multi-ton point loads safely over extended operating lifespans.
1. Structural Engineering & Metallurgy Standards for Long Load Racking
Long load storage systems—ranging from extra-wide beam racking (spans exceeding 3,300mm to 4,500mm) to heavy-duty cantilever racks—are governed by strict mechanical stress distribution laws. When an un-braced horizontal beam experiences heavy uniformly distributed loads (UDL) or concentrated point loads from oversized steel bundles, pipes, timber, or specialized industrial pallets, it experiences complex bending moments, shear stresses, and torsional deformation.
Leading Chinese racking factories like Zenithrack utilize high-tensile structural cold-rolled steel, specifically Q235B and Q355B (equivalent to European S235JR and S355JR / ASTM A572 Grade 50). The selection of steel grade directly influences frame thickness, beam profile geometry, and ultimate yield strength:
| Steel Grade Standard | Yield Strength (MPa) | Tensile Strength (MPa) | Optimal Application in Racking Systems | Flexural Resistance Index |
|---|---|---|---|---|
| Q235B Cold-Rolled Steel | ≥ 235 MPa | 370 – 500 MPa | Standard selective pallet racking, light-to-medium beam spans (≤ 2700mm) | Standard Baseline (1.0x) |
| Q355B High-Strength Alloy | ≥ 355 MPa | 470 – 630 MPa | Long load beam spans (> 3300mm), heavy cantilever arms, drive-in uprights | High Rigidity (1.51x) |
| Hot-Rolled Structural H-Steel | ≥ 355 MPa | 490 – 610 MPa | Heavy-duty structural mezzanine columns, extreme-load cantilever bases | Maximum Deflection Immunity |
To guarantee long-term operational safety, top China factories engineer beam spans with a maximum allowable deflection limit of δ ≤ L / 200 under maximum rated load (where L is the clear span length). For example, a 3,600mm long load beam will suffer no more than 18mm of elastic mid-span deflection under full static payload, fully preventing permanent plastic deformation or beam detachment from the upright frame connectors.
Racking Architectures Optimized for Long & Heavy Unit Loads
Choosing the right rack structure depends on load geometry, forklift aisle clearances, handling frequency, and ceiling clear height.
Extra-Wide Selective Beam Racks
Utilizes custom-engineered step beams or box beams with continuous welding and 3 or 4-hook claw connectors. Best for extra-long pallets, machinery crates, and multi-pallet staging where 100% direct accessibility is non-negotiable.
Heavy-Duty Cantilever Racks
Designed specifically without front vertical uprights. Cantilever arms extend outward from a central column tower, allowing uninterrupted horizontal clearance for storing steel pipes, aluminum extrusions, timber boards, and long plastic tubes.
Radio Shuttle & Semi-Automated Lines
Combines heavy-duty channel profiles with self-powered radio shuttles. Allows deep-lane high-density storage for standardized long-pallet payloads, drastically reducing forklift travel time and eliminated aisle space requirements.
Global Sourcing & Technology Trends in Warehouse Racking (2025-2030)
Key market shifts driving modern warehouse transformation, smart inventory tracking, and eco-friendly factory manufacturing.
As global supply chains face volatile freight costs, rising warehouse land rents, and stringent labor safety laws, procurement managers are pivoting away from low-tier commoditized racking toward high-density, smart-ready steel storage infrastructures. China’s leading export factories are adapting quickly by integrating advanced technology into structural fabrication:
1. Smart IoT Sensor Integration
Next-generation long load racking installations feature strain-gauge IoT sensors embedded directly into critical beam connectors and column bases. These real-time monitoring devices alert facility managers to accidental forklift impacts, frame tilt angles exceeding 0.5 degrees, or static overload conditions before structural fatigue or failure occurs.
2. Eco-Friendly Epoxy Powder Coatings
Environmental regulations in major overseas markets demand zero-VOC, heavy-metal-free electrostatic thermosetting powder coatings. Top Chinese factories utilize automated 12-stage pre-treatment wash cycles (phosphating and reverse osmosis rinsing) paired with high-durability epoxy resin finishes resistant to salt spray test ratings over 500 hours.
3. Modular Multi-Tier Hybrid Systems
Warehouse operators are increasingly requesting hybrid storage platforms where heavy long load pallet racking on the ground level serves as the structural foundation for multi-tier mezzanine picking walkways above. This doubles cubic space efficiency without requiring new building permits.
Why Zenithrack Leads China’s Racking Export Sector
Proven engineering heritage, robust production machinery, and strict quality control certified for international delivery.
Zenithrack Industrial Equipment Co., Ltd. stands out as a genuine direct manufacturer headquartered in Dongguan, Guangdong, China. Spanning over 8,000 square meters of specialized production space, the factory operates 35 sets of high-precision cold roll-forming mills, automated robotic welding stations, laser cutting systems, and a modern powder coating line.
Unlike trading companies or local middlemen, Zenithrack retains full control over raw material procurement, structural FEA stress calculations, profile cold-forming accuracy (±0.2mm tolerance), and final export loading. Having built a strong reputation in China's competitive domestic market with annual sales reaching over CNY 100 million, Zenithrack now supplies high-bay warehouse systems to multinational enterprises across North America, Europe, Australia, and the Middle East.
Free Engineering CAD Layouts
Send us your warehouse DWG floor plan, clear height under roof trusses, and pallet specs. Our structural engineers provide complete 2D/3D layout drawings and stress calculations free of charge within 24 hours.
Rigorous In-House QC Protocols
Every production lot undergoes 5-point quality checking: raw steel tensile verification, beam clip weld penetration analysis, hole pitch accuracy, powder coating thickness gauge test (80-110 microns), and pre-shipment trial assembly.
OEM & Custom Brand Support
We partner with international racking distributors, project contractors, and system integrators. Customized beam sizes, special RAL color finishes, custom branding badges, and special packing for container transport are fully supported.
Verified Feedback from Global Warehouse Buyers
"Our team is extremely satisfied with the heavy-duty pallet racks. The structural alignment after installation was seamless. My project manager personally visited Zenithrack's Dongguan facility and was blown away by their high-speed automated roll-forming lines."
"Throughout the entire procurement journey, Zenithrack's engineering staff provided professional advice on aisle width and forklift turn radii. Their sales lead Bradley was prompt and proactive. When auditors visited our plant, they commended the rack steel finish."
"I have partnered with Zenithrack for over 5 years supplying industrial projects in South America. Their product consistency, precise hole pitch punching, and powder coating durability are exceptional. Zero customer complaints in 5 years."
Frequently Asked Sourcing & Technical Questions (FAQ)
Expert answers from our senior engineering team to help you navigate long load pallet racking procurement, design, and factory sourcing from China.
How do I determine whether to choose Selective Pallet Racking, Drive-In Racking, or Radio Shuttle Racking for long loads?
The choice depends primarily on your SKU diversity, pallet dimensions, and required inventory rotation:
- Selective Pallet Racking: Ideal when you have high SKU diversity and require immediate 100% direct access to every pallet position. It handles long beam spans well but requires wider forklift operator aisles.
- Drive-In Racking: Best suited for a low number of SKUs stored in massive volume where Last-In, First-Out (LIFO) inventory movement is acceptable. It maximizes space utilization by eliminating operational aisles.
- Radio Shuttle Racking: The ultimate high-density choice for high-throughput operations. An automated battery-powered shuttle moves long pallets inside deep channels, achieving extremely fast cycle times and supporting both FIFO and FILO options with minimal forklift interaction inside lanes.
What detailed technical parameters must I provide for Zenithrack to design a free custom CAD layout?
To produce an accurate 2D/3D CAD design and structural load calculation, please provide:
- Architectural DWG floor plan showing building column locations, fire door clearances, and overhead obstruction heights (sprinkler pipes, lighting, roof trusses).
- Unit load specifications: Length, Width, Height, and maximum weight per pallet (including the weight of timber/steel pallets).
- Forklift model specifications: Maximum lift height, turning radius, and aisle width requirement.
- Operating ambient temperature (e.g., standard warehouse room temperature vs. -25°C cold storage).
- Local seismic code compliance requirements (e.g., Zone 3 seismic anchor footplate design).
How does Zenithrack calculate safety factors and beam deflection limits under heavy loads?
All Zenithrack racking designs adhere strictly to FEM 10.2.02 (European Racking Federation Code) and ANSI/RMI MH16.1 standards. We engineer structural beams to a static safety factor of at least 1.5 to 1.65 against material yield strength. Horizontal beam deflection under full rated Uniformly Distributed Load (UDL) is controlled to less than L/200 (Span Length divided by 200), ensuring zero permanent deformation or safety hazard over decades of heavy service.
What are the lead times for manufacturing and container shipment from Dongguan, China?
Standard manufacturing lead time is 15 to 22 business days after technical CAD approval and deposit confirmation. Because our Dongguan factory maintains strategic raw steel coil inventories (Q235B & Q355B) and operates 35 automated machine sets, we can handle multi-container project shipments efficiently. Ocean transit from Shenzhen / Nansha port typically takes 14 to 35 days depending on the final destination port (North America, Europe, Australia, Middle East).
Can long load pallet racks be customized for outdoor storage or corrosive environments?
Yes. For outdoor environments, coastal areas, or high-humidity cold rooms, we provide Hot-Dip Galvanized (HDG) surface treatments in accordance with ISO 1461. Hot-dip galvanizing coats all internal and external steel surfaces with a 60-80 micron zinc layer, delivering 20 to 50 years of rust protection even under severe exposure. Alternatively, we offer outdoor-grade UV-resistant polyester powder coatings.
Do you provide sample pieces and installation assembly support for overseas projects?
Yes. Zenithrack provides free physical sample kits (upright profile sections, beam claw connectors, frame bracing samples) with freight collect. For every confirmed order, we ship complete 3D step-by-step assembly drawings, installation manuals, safety load signage, and basic installation alignment tools to ensure your local contractor team installs the racking system smoothly and safely.
