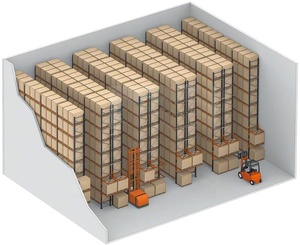

Very Narrow Aisle (VNA) Pallet Racking
Space-maximizing vertical racking system operating in narrow 1.5m-1.8m aisles with turret truck wire guidance.
Get Catalog
AS4084 Certified Heavy Duty Pallet Racking
Cold-rolled structural steel racking tailored to Australian and global safety codes for extreme seismic and structural performance.
Get CatalogEngineering Blueprint: Architectural Dynamics of Wide Aisle Pallet Racking
In modern industrial logistics, selecting an optimized material handling infrastructure defines operational throughput, stock rotation velocity, and cubic floor efficiency. Wide Aisle Pallet Racking—frequently referred to in structural engineering as Standard Selective Pallet Racking (APR)—remains the undisputed benchmark for high-mix, variable-volume storage operations worldwide. Operating with operating aisle widths typically ranging between 3.0 meters and 4.5 meters (10 to 15 feet), wide aisle systems accommodate standard counterbalanced forklifts, reach trucks, and articulated trucks without requiring specialized guided steering tracks or expensive floor inductor wire systems.
From a structural load-bearing perspective, wide aisle pallet racking systems rely on two fundamental cold-formed structural steel components: continuous vertical upright frames and horizontal interlocking box beams (or step beams). Zenithrack utilizes high-tensile Q235B and Q355B structural steel grades, cold-roll formed into specialized omega-profile upright columns with teardrop or diamond punching pitches at 50mm, 75mm, or 76.2mm (3-inch) increments. This configuration delivers exceptional torsional stiffness, seismic moment-frame resistance, and high vertical loading capacity exceeding 24,000 kg (52,900 lbs) per bay frame.
Information Gain Insight for Logistics Directors: While Very Narrow Aisle (VNA) systems offer higher volumetric footprint density, Wide Aisle Pallet Racking delivers a vastly superior Total Cost of Ownership (TCO) efficiency for facilities handling heterogeneous SKUs. Wide aisle setups allow multiple material handling vehicles to operate concurrently in adjacent aisles without bottlenecking, dramatically elevating pallet moves per hour (PMPH) while maintaining 100% immediate selective access to every individual pallet location.
Structural Physics & Load Deflection Calculations
Designing an industrial pallet rack installation requires rigorous mechanical physics to ensure structural equilibrium under combined dead loads, live loads, impact loads, and seismic shear forces. According to global structural codes (including FEM 10.2.02 and AS4084-2012), horizontal beam profiles must satisfy strict load-deflection limitations. Under full rated payload capacity, maximum vertical beam deflection ($\delta$) must not exceed:
\delta_{max} \le \frac{L}{200}
where $L$ represents the clear span distance between upright columns. For a standard 2700mm beam designed to carry two standard 1000kg EUR/ISO pallets, maximum allowable central deflection is mathematically capped at 13.5mm. Zenithrack’s structural engineering team models every frame using 3D Finite Element Analysis (FEA) software to verify stress distributions, buckling modes, and safety margins (applying a minimum material load safety factor between 1.50 and 1.65).
Technical Specification Comparison: Racking Architecture Matrix
To assist warehouse operations managers and procurement executives in selecting the optimal structural layout, the table below provides a engineering breakdown of major industrial pallet racking typologies:
| Racking Architecture | Aisle Width (m) | Footprint Efficiency | SKU Selectivity | Forklift Equipment Requirement | Relative CAPEX / m² |
|---|---|---|---|---|---|
| Wide Aisle (Selective) | 3.0 - 4.5 m | 40% - 50% | 100% Direct Access | Standard Counterbalanced / Reach Truck | Baseline (Lowest) |
| Very Narrow Aisle (VNA) | 1.5 - 1.8 m | 70% - 80% | 100% Direct Access | VNA Man-Up / Turret Truck + Wire Guide | Moderate to High (+65%) |
| Drive-In / Drive-Through | 1.8 - 2.2 m | 65% - 75% | Low (LIFO / FIFO Lanes) | Standard Reach Truck | Low-Moderate (+25%) |
| Radio Shuttle System | Deep Lane (N/A) | 80% - 88% | Batch Selectivity | Standard Forklift + Automated Shuttle Cart | High (+120%) |
| Rack-Supported Mezzanine | Multi-Level | 150% - 200%+ | 100% Manual / Tote Access | Pallet Jacks, Order Pickers, Conveyors | Moderate (+50%) |
Procurement & Industry Future Trends
Key structural engineering advancements and supply chain evolutions shaping the industrial storage rack landscape over the next decade.
1. High-Strength Steel (HSLA) Transition
Global procurement is rapidly shifting from conventional mild steel toward High-Strength Low-Alloy (HSLA) structural steel formulations (such as Q355B and Q460). HSLA steel yields higher tensile resilience, allowing thinner gauge profiles to carry higher payloads while reducing raw material shipping mass and environmental carbon footprint.
2. Hybrid AMR & Reach Truck Aisle Layouts
Modern distribution centers are redesigning Wide Aisle layouts into flexible hybrid corridors capable of hosting human-operated forklift fleets alongside Autonomous Mobile Robots (AMRs) and vision-guided AGVs without altering core rack column footings.
3. Thermosetting Epoxy & Galvanized Anti-Corrosion
With expanding cold-chain logistics and agricultural storage hubs, advanced surface passivation—combining 60–80μm electrostatic epoxy-polyester powder coatings with continuous pre-galvanized zinc coatings—is becoming mandatory to prevent structural oxidation in humid or sub-zero (-30°C) environments.
4. Rapid Modular Modularization & Reconfiguration
E-commerce velocity requires storage grids to adapt rapidly. High-demand rack designs prioritize boltless adjustable beam connector locks, allowing warehouse managers to alter vertical beam shelf levels in 50mm or 75mm increments without structural welding or facility downtime.
5. Stringent Structural & Seismic Compliance Verification
International buyers now strictly enforce compliance with standards such as AS4084-2012 (Australia), RMI ANSI MH16.1 (USA), and EN 15512 (Europe). Third-party raw material chemical certifications and factory mill test reports (MTR) are now essential components of the procurement workflow.
6. Direct-From-Factory Supply Chain Consolidation
Enterprise buyers are bypassing intermediary traders to work directly with fully integrated China rack manufacturers. Direct factory engagement delivers custom structural sizing, transparent quality control audits, free CAD engineering layouts, and significant cost savings.
Why Partner With Zenithrack
Top-tier manufacturing precision, rigorous quality control, and full-spectrum engineering services for enterprise warehouse racking projects.
8,000 m² Advanced Manufacturing Facility
Located in Dongguan, China, our specialized production plant houses 35+ sets of precision cold-roll forming profile mills, high-speed automated punching presses, robotic welding stations, and an integrated continuous powder-coating line capable of generating over 50,000 tons of structural racking annually.
Free CAD Layout & Structural Engineering
Our staff of 75+ skilled professionals includes dedicated structural design engineers. We transform your raw warehouse floor plans into fully optimized 2D/3D CAD layouts, structural load calculations, and installation elevation plans within 24 hours, completely free of charge.
In-House QC & Global Certification
Every production batch undergoes strict quality assurance inspections. We audit raw steel chemistry, profile dimensional tolerances, weld seam integrity, and powder coat adhesion (cross-hatch test). Our products strictly align with ISO9001, CE, and AS4084-2012 international standards.
Free Samples & Custom OEM/ODM Fabrication
We provide free physical samples of upright sections, step beams, and connector clips (freight collect) so you can evaluate raw steel thickness and finish quality before issuing a Purchase Order. Full branding, custom RAL powder colors, and custom dimensional profile tooling are available.
Export Packaging & Rapid Container Dispatch
Upright frames and beams are bundled with plastic wrapping film, steel strapping, and wooden timber skids to prevent transit damage during long-distance maritime freight. Basic installation accessories and specialized erection tools are shipped directly inside your containers.
Proven Domestic & Global Track Record
With domestic annual sales exceeding 100 Million RMB and a growing global export network spanning North America, Europe, Australia, and Southeast Asia, Zenithrack supplies leading enterprise clients across third-party logistics (3PL), automotive, electronics, and retail sectors.
Frequently Asked Procurement Questions
Direct answers from our senior engineering team to assist your warehouse racking planning and vendor evaluations.
How do I determine whether Wide Aisle, Drive-In, or Radio Shuttle racking is best for my facility?
Selection depends primarily on your SKU diversity, inventory turnover method, and material handling budget:
- Wide Aisle (Selective) Racking: Ideal when you have high SKU diversity, require 100% immediate physical access to every pallet, and operate standard forklift trucks. It offers maximum operational flexibility at the lowest initial CAPEX.
- Drive-In Racking: Best suited for facilities storing low SKU counts with high pallet volume per SKU, where Last-In, First-Out (LIFO) inventory management is acceptable and maximum footprint density is prioritized over direct access.
- Radio Shuttle Racking: Excellent for high-density, deep-lane storage requiring fast handling speeds. It allows both FIFO and FILO options, minimizes driver collision risk inside aisles, and offers higher operational efficiency than drive-in racking.
What technical data is required for Zenithrack to generate a free CAD layout drawing?
To design an accurate structural layout, our engineering team requires:
- Warehouse architectural floor plan (DWG CAD file or PDF showing column grid spacing, building dimensions, and wall locations).
- Clear building height under roof trusses, lights, or sprinkler system lines.
- Pallet load parameters: Length $\times$ Width $\times$ Height (including goods overhang) and maximum weight per loaded pallet.
- Forklift specifications: Vehicle make/model, turning radius, aisle clearance requirements, and maximum lift height.
- Environmental factors: Local seismic rating requirements, concrete floor slab thickness/strength, and temperature range (e.g., cold storage).
What are the standard international manufacturing standards for Zenithrack pallet racking?
Zenithrack designs and manufactures storage rack systems in strict accordance with major global regulatory frameworks, including AS4084-2012 (Steel Storage Racking standard in Australia), FEM 10.2.02 (European Code for Racking Systems), RMI ANSI MH16.1 (Industrial Steel Storage Racks standard in North America), and ISO 9001:2015 Quality Management Systems.
How does Zenithrack guarantee raw material quality and structural load ratings?
We source prime hot-rolled and cold-rolled steel coils exclusively from top-tier certified steel mills (such as Baosteel and Shougang). Every raw material shipment arrives with Mill Test Certificates verifying tensile strength, yield point ($\ge 235 \text{ MPa}$ for Q235B, $\ge 355 \text{ MPa}$ for Q355B), and chemical composition. Our dedicated QC inspectors perform destructive load testing, profile thickness measurements, and weld penetration testing prior to packaging.
Can rack systems be customized with OEM branding and specific RAL powder colors?
Yes. Zenithrack provides full OEM and ODM customization services for global distributors, contractors, and project integrators. We offer custom upright column profiles, beam dimensions, load capacities, corporate logo stamping on frame bracing, and custom thermosetting powder-coat colors specified by any standard RAL color code.
What is the typical manufacturing lead time for standard export racking orders?
Standard lead time for 1 to 5 high-cube (40ft HQ) containers of wide aisle selective racking is typically 15 to 20 business days following technical drawing confirmation and deposit receipt. Specialized automated systems, customized tooling, or hot-dip galvanizing finishes may require 25 to 30 days depending on raw material schedules.
