Engineering Whitepaper: Heavy-Duty Industrial Drum Storage Racking Systems in the Philippines
Storing liquids, chemicals, lubricants, and raw industrial materials in 55-gallon (208-liter) steel or plastic drums presents unique mechanical, environmental, and structural safety challenges. Unlike standard boxed goods, drum storage involves concentrated point loads, dynamic fluid sloshing during seismic events, strict spill containment mandates, and severe environmental stress caused by high humidity and salty coastal air across key Philippine industrial centers like Cavite, Laguna, Batangas, Subic, Cebu, and Davao.
As a leading premier OEM/ODM racking factory in Dongguan, China with over 15 years of precision engineering experience, Zenithrack supplies specialized heavy-duty drum storage pallet racks, cradle rack adapters, integrated containment sumps, and radio shuttle liquid racking engineered specifically to withstand seismic Zone 4 forces and tropical island atmospheric conditions.
Technical Insight: Storing liquid drums vertically on standard wooden pallets without specialized support beams creates dangerous deflection risks. Horizontal drum cradles combined with cold-rolled Q235B/Q355B structural steel beams distribute point loads evenly, reducing frame fatigue by up to 68% while allowing immediate forklift handling or gravity dispensing.
Key Structural & Engineering Requirements for Drum Storage Racking
When engineering high-bay drum storage systems for Philippine facilities, our engineering design team incorporates five core design parameters to ensure total structural integrity and OSHA/DENR compliance:
Concentrated Load Engineering
Four fully-loaded 55-gallon drums per pallet location exert a concentrated static weight of 900kg to 1,400kg. Our heavy-duty box beams feature welded safety retainers and reinforced connector claws to prevent twisting or dislodgement under extreme point stresses.
DENR Spill Containment Compliance
In accordance with Philippine DENR (Department of Environment and Natural Resources) DAO 2013-22 chemical handling standards, our drum racks integrate heavy-gauge galvanized secondary spill sumps (110% containment capacity) beneath beam levels to collect accidental leakages.
NSCP Seismic Zone 4 Resilience
The Philippines lies within the active Pacific Ring of Fire. Zenithrack designs upright frames with oversized heavy-duty baseplates, expanded expansion anchor bolt patterns, and custom X-bracing to comply with National Structural Code of the Philippines (NSCP) seismic criteria.
C4/C5 Coastal Anti-Corrosion Coating
Tropical island warehouses encounter severe humidity and salt fog. We apply an automated 9-stage phosphating pre-treatment followed by thermosetting pure epoxy-polyester powder coating (70-90µm thickness) or hot-dip galvanizing for maintenance-free operation.
Technical Performance Comparison: Drum Racking Systems
Selecting the optimal racking architecture depends on warehouse clear height, SKU variety, drum positioning requirements (horizontal dispensing vs. vertical palletized storage), and material handling equipment.
| Racking Architecture | Typical Load / Level | Drum Orientation | Space Efficiency | Best Application Scenario in PH |
|---|---|---|---|---|
| Selective Drum Pallet Rack | 1,000kg - 4,000kg | Vertical or Horizontal Cradles | 60% - 70% Cube Utilization | Multi-SKU chemical warehouses in Cavite & Batangas needing 100% immediate pallet accessibility. |
| Radio Shuttle Drum Racking | 1,500kg / Pallet Shuttle | Vertical Palletized Drums | up to 88% High Density | Bulk coconut oil, agricultural fertilizer, and palm oil storage in Davao & General Santos logistics hubs. |
| Horizontal Gravity Flow Drum Rack | 800kg - 2,500kg / Lane | Horizontal Barrel Roller Tracks | 80% FIFO Rotation | Fast-paced lubricant manufacturing & fuel additive dispensing plants in Subic & Clark Freeport Zones. |
| Drive-In Heavy Liquid Rack | 1,200kg / Bay Level | Palletized Heavy Drums | 75% - 85% Dense Storage | Cold storage & high-volume uniform liquid chemical storage in Metro Manila & Bulacan. |
Localized Application Scenarios in the Philippines
Tailored Industrial Storage Engineering Designed for Regional Manufacturing, Processing, and Offshore Logistics Operations across Luzon, Visayas, and Mindanao.
Petrochemical & Lubricant Storage (Batangas & Cavite)
Offshore oil refineries and chemical mixing plants near Batangas Port utilize Zenithrack selective drum racking equipped with horizontal cradle inserts. Drums can be safely racked up to 6 levels high while remaining accessible for direct liquid dispensing and sampling, backed by integrated oil-tight spill basins.
Coconut Oil & Agricultural Processing (Davao & GenSan)

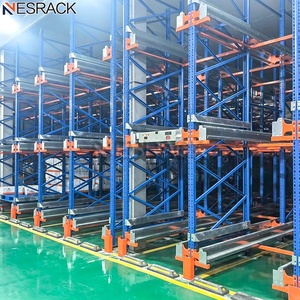

Major crude coconut oil exporters and agricultural chemical distributors rely on our heavy-duty radio shuttle racking systems. Highly dense pallet lanes accommodate thousands of 200L drums, utilizing automated remote-controlled shuttle cars that eliminate forklift damage inside storage bays.
Mining & Shipyard Heavy Machinery Oils (Cebu & Caraga)
Heavy machinery workshops and maritime repair hubs demand ultra-rugged, anti-rust racking. Our hot-dip galvanized structural pallet racks withstand coastal humidity and harsh grease exposure, providing safe 3,000kg beam capacities to store heavy gear oils and hydraulic fluid drums.
High-Density Warehousing & 3PL Logistics (Valenzuela & Laguna)

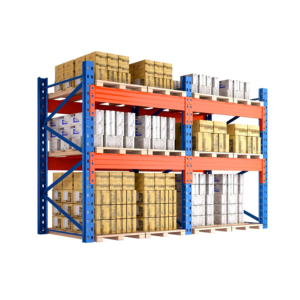

With warehouse land leasing costs escalating across Metro Manila, 3PL providers deploy Zenithrack Very Narrow Aisle (VNA) drum racks. Utilizing vertical warehouse clearance up to 12 meters, facilities maximize volumetric footprint while ensuring full compliance with local Bureau of Fire Protection (BFP) safety codes.
Philippine Market Trends & Direct Procurement Advantage
The rapid expansion of the Philippine manufacturing sector, fueled by the Build Every Better More infrastructure initiatives and increased foreign direct investment in economic zones (PEZA), has transformed industrial storage demands. Key industry shifts include:
- Strict Environmental Environmental Standards: Local government units (LGUs) and the DENR now mandate strict secondary spill containment for toxic and hazardous liquid storage facilities. Purchasing factory-direct drum racks with integrated spill trays eliminates expensive retrofit costs.
- Focus on Seismic & Typhoon Structural Security: Standard light-duty shelving often fails during earthquakes or heavy wind loads. Philippine facility managers are prioritizing heavy-duty certified steel profiles (Q235B/Q355B) featuring proven structural engineering calculations.
- Direct Import Cost Efficiency: Sourcing directly from an established China manufacturer like Zenithrack eliminates trading middleman markups (saving 25%-40% on total project cost) while gaining access to free custom CAD layouts, structural calculations, and expedited sea freight to Manila South/North Harbor, Cebu, or Davao ports.
Why Zenithrack is China's Premier Racking Supplier for the Philippines
Free Warehouse Layout & CAD Design
Our structural engineers provide complimentary 2D floor plans and 3D CAD rendering within 24 hours based on your warehouse dimensions.
In-House Quality Control & Load Testing
Every batch undergoes strict steel tensile testing, weld seam inspection, electrostatic coating thickness checks, and destructive load testing.
Full OEM/ODM Branding & Custom Sizes
Custom beam profiles, custom RAL paint matching, heavy load capacities, and private distributor logo branding available upon request.
Export Packing & Direct Shipping
Steel-banded export bundle packaging with bubble wrap protection ensures damage-free container transport directly to all major Philippine ports.
Frequently Asked Questions (FAQ) for Philippine Buyers
Expert Engineering Solutions for Import Logistics, Local Safety Compliance, Installation, and Product Customization.
How do I determine the right drum racking system for my chemical facility in the Philippines?
Are Zenithrack storage systems compliant with Philippine DENR and Bureau of Fire Protection (BFP) rules?
What is the typical shipping sea freight lead time from China to Manila or Cebu ports?
How are drum racks engineered against earthquakes and humid coastal weather in the Philippines?
Do you provide installation drawings and on-site support for Philippine projects?
Can Zenithrack customize racking for IBC Totes or custom drum dimensions?
Optimize Your Warehouse Drum Storage Efficiency Today
Contact Zenithrack's Senior Storage Engineers to receive a Free Warehouse CAD Layout, Structural Load Calculations, and Factory-Direct Price Quotation within 24 Hours.
