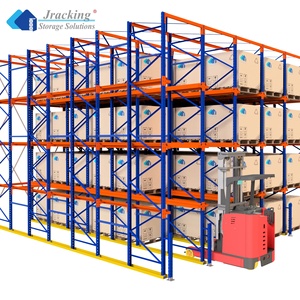

Featured Warehouse Storage & Pallet Racking Systems
Engineered for seamless integration with stacker cranes, radio shuttles, roll conveyors, and high-density warehouse automation.
Engineering Crane-Supported Pallet Racking (Rack-Supported Buildings) for the Netherlands Market
In the contemporary European supply chain landscape, the Netherlands serves as the premier logistics gateway, anchored by the Port of Rotterdam, Schiphol Airport, and key inland hubs such as Venlo, Moerdijk, and Tilburg. However, Dutch industrial developers and logistics operators face a severe structural constraint: exceptionally high industrial land acquisition costs—frequently reaching €180 to €350+ per square meter in Randstad zones—combined with stringent municipal building footprints. Consequently, maximizing vertical volume through **Crane Supported Pallet Racking Systems** (also known as Rack-Supported Buildings or Clad-Rack High-Bay Warehouses) has emerged as the definitive engineering solution.
Unlike conventional warehouse storage systems where self-supporting racking is erected inside an existing civil concrete structure, a **Crane Supported Pallet Racking System** functions as the structural skeleton of the entire building. The rack upright frame columns directly support the roof structure, side wall insulation cladding, wind-loading trusses, snow-loading dynamics, as well as the heavy dynamic loads imposed by automated Storage and Retrieval Machines (SRM / Stacker Cranes). As an experienced direct manufacturer and exporter supplying the Dutch and wider Benelux market, Zenithrack designs and manufactures high-bay rack-clad structures capable of reaching heights beyond 35 meters while maintaining tolerances down to millimeter fractions required by EN 15512 and FEM 10.2.02 standards.
Key Structural Advantage of Rack-Clad Crane Systems
By eliminating the need for independent civil building pillars and roof trusses, crane-supported racking achieves up to 25% higher cubic utilization and significantly reduces civil construction timelines in Dutch industrial parks. Capital investment tax write-offs in the Netherlands (MIA/VAMIL incentives for sustainable building technology) frequently apply to rack-clad structures when integrated with automated energy-recovery stacker cranes.
Structural Specifications & Design Criteria for Dutch High-Bay Warehouses
Engineering a crane-supported pallet racking system for installation in the Netherlands requires rigorous structural calculation. Netherlands building standards (Bouwbesluit) mandate strict adherence to Eurocode 3 (EN 1993 for steel design), Eurocode 8 (EN 1998 for seismic resistance, particularly applicable to Groningen and Limburg regions), and specific rack safety code **EN 15512**. Furthermore, due to the low load-bearing characteristics of soft Dutch peat and clay soils, foundation base plate load distribution must be precisely calculated using Finite Element Analysis (FEA).
| Design Parameter | Specification / Standard | Engineering Nuance for Netherlands |
|---|---|---|
| Structural Steel Grade | Q235B, Q355B (EN 10025 S235JR / S355JR equivalent) | High yield strength cold-rolled profile steel ensuring elastic resistance under crane acceleration forces. |
| System Max Height | Up to 40 meters (Silo Construction) | Requires top guide rail brackets for stacker crane stabilization and continuous verticality checks. |
| Load Capacity | 1,000 kg – 4,500 kg per pallet position | Designed for Euro-pallets (800x1200mm), Industrial Pallets (1000x1200mm), and custom Dutch agrifood containers. |
| Wind & Snow Load Deflection | NEN-EN 1991-1-4 (Wind) & NEN-EN 1991-1-3 (Snow) | Cladding attachments incorporate expansion joints to absorb coastal North Sea storm pressures up to 1.5 kN/m². |
| Surface Corrosion Protection | Hot-Dip Galvanized (HDG) or Epoxy Powder Coating | Minimum 80-120 µm powder coat or HDG ISO 1461 for cold storage down to -30°C in Dutch agrifood logistics. |
| Crane Guide Rail Tolerances | FEM 9.831 / FEM 10.2.02 Class 100 to 400 | Laser-aligned floor tracks and overhead guide tie-ins ensuring non-disruptive 240 m/min travel speeds. |
Localized Application Scenarios in Dutch Logistics Hubs
Our crane-supported pallet racking systems are tailor-engineered to address specific industrial sectors operating within the Netherlands:
Rotterdam & Moerdijk Port Logistics
High-turnover ocean container buffer storage. Crane-supported racking integrated with automated stacker cranes allows high-density container pallet handling directly linked to WMS/ERP systems for immediate customs clearance handling.
Westland Agrifood Cold Storage
Netherlands is the world’s second-largest agricultural exporter. Our hot-dip galvanized crane-supported clad racks operate reliably in -25°C deep-freeze rooms, preventing cold-air thermal leaks while maintaining tight storage density.
Venlo E-Commerce Fulfillment

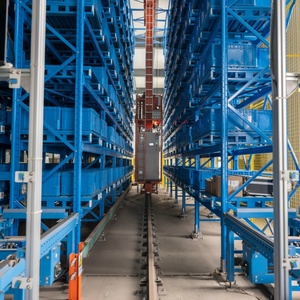

Rapid order cycle demands for cross-border European distribution. Multi-deep crane-supported shuttle racking combined with miniload ASRS components enables 24/7 automated picking with zero human error.
Market Trends Driving Crane-Supported Racking Adoption in Benelux
The Dutch supply chain sector is currently undergoing a massive structural transition driven by three macroeconomic forces:
- Acute Warehouse Labor Shortages: According to CBS (Statistics Netherlands), logistics labor scarcity remains at historical highs. Transitioning from manual forklift-operated VNA systems to fully automated crane-supported high-bay racking reduces warehouse floor staffing requirements by up to 70%.
- BREEAM & ESG Sustainability Standards: Sustainable construction is mandatory for new developments in municipalities like Amsterdam, Utrecht, and Eindhoven. Rack-supported buildings reduce steel consumption per pallet slot by eliminating separate structural building frames, contributing directly to lower embodied carbon footprint ratings.
- Ultra-High Bay Urban Density: Height restrictions in modern Dutch zoning plans increasingly favor vertical build-outs up to 30-40 meters over horizontal sprawl. Crane racking provides the vertical stiffness required to stay within micro-footprint urban zoning limits.
Manufacturing Rigor & Global Export Expertise
Choosing Zenithrack as your OEM factory and direct exporter ensures that your crane-supported racking system is built with uncompromised engineering precision. As a top-tier Chinese racking manufacturer with over 15 years of continuous production excellence, we bridge high-end European design compliance with factory-direct cost efficiencies.
8,000 m² Modern Factory
Equipped with 35 sets of specialized machinery including high-precision continuous roll-forming lines, automated robotic welding stations, and electrostatic powder coating plants.
Free Engineering & CAD Layout
Our in-house structural engineering team (75+ skilled staff) provides complete 3D CAD modeling, FEA stress analysis, and full installation schematics free of charge before production.
Rigorous Pre-Shipment QC
Dedicated Quality Control inspectors test raw steel coil chemistry, weld seam integrity (ultrasonic testing), hole punching alignment, and powder coat thickness before sea container loading.
Frequently Asked Questions for Buyers in Netherlands
Clear engineering and commercial responses to common technical inquiries regarding crane-supported pallet racking imports to the Netherlands.
How do crane-supported racking systems handle soft soil conditions typical in the Netherlands?
Does your crane racking system comply with NEN-EN 15512 and Dutch Bouwbesluit standards?

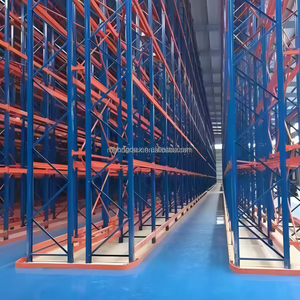

What is the difference between a traditional VNA rack and a Crane-Supported Clad-Rack building?
How are roof and wall cladding panels attached to the racking structure?
What is the lead time for shipping racking components from your factory to Port of Rotterdam?
Plan Your High-Bay Crane Racking Project Today
Send us your warehouse floor plan, clear ceiling height, pallet dimensions, and stacker crane specifications. Our engineering team will supply a customized CAD layout and competitive factory-direct quote within 24 hours.
