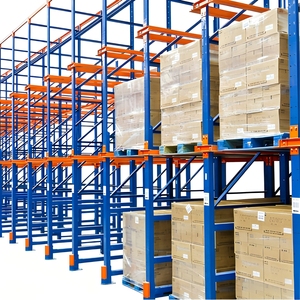

Drive Rack System 5 Ton Capacity 5 Durable Warehouse Pallet Racks for Steel Coil/Chemical Drums Industrial Storage Solution
Engineering Excellence for High-Density Die-Casting Mold Storage in Saudi Arabia
The rapid industrial transformation across the Kingdom of Saudi Arabia (KSA), catalyzed by the National Industrial Development and Logistics Program (NIDLP) under Saudi Vision 2030, has driven unprecedented demand for advanced die-casting mold storage racks and heavy tooling management infrastructure. As heavy manufacturing, automotive component casting, plastics extrusion, and aluminum die-casting clusters expand within Jubail Industrial City, Yanbu Industrial City, Dammam 3rd Industrial City, and the MODON zones in Riyadh, industrial facilities require structural storage systems capable of bearing extreme dynamic loads while resisting intense desert environmental challenges.
Die-casting molds, stamping dies, injection molds, and precision metal tooling represent high-value enterprise capital assets. Improper storage, non-standard load distribution, or sub-par shelf mechanisms lead to operational bottlenecks, overhead crane safety hazards, and accelerated mold damage. Zenithrack delivers factory-direct, heavy-duty drawer-type mold racks engineered specifically for high-capacity industrial applications, supporting unit loads from 500 kg up to 5,000 kg per drawer level with full telescopic extension and integrated anti-tipping safety lockouts.
Structural Cold-Rolled Q355B Steel
Forged from high-tensile structural steel profiles to eliminate beam sag under sustained point loading from massive multi-ton die sets.
Anti-Tipping Mechanical Interlocks
Patented safety mechanism ensures only one drawer can be pulled out at a time, preventing center-of-gravity displacement and rack tipping.
Thermal & Dust Resistant Finishes
Electrostatic thermosetting epoxy-polyester powder coating cured at high temperature to resist thermal blistering and fine silica abrasion.
Mold Rack Structural Specifications & Engineering Matrix
When evaluating die-casting mold rack suppliers for Saudi Arabian deployment, engineering buyers must verify load-deflection ratios, drawer stroke mechanisms, and crane integration compatibility. Zenithrack custom-engineers each mold racking system based on FEM (Finite Element Method) stress analysis to ensure structural stability under static and dynamic loading condition ratios exceeding a 1.5 safety factor.
| Parameter / Feature | Standard Heavy-Duty Drawer Rack | Ultra Heavy-Duty Die-Casting Rack | Automated / Crane-Integrated Mold Rack |
|---|---|---|---|
| Payload Capacity per Drawer | 500 kg – 1,500 kg / level | 1,500 kg – 5,000 kg / level | 2,000 kg – 8,000+ kg / level |
| Drawer Extension Ratio | 60% Partial Stroke / 100% Full Extension | 60% Partial Stroke / 100% Full Extension | 100% Full Extension (Motorized / Winch) |
| Material Profile | Q235B Cold-Rolled Steel Columns | Q355B Structural Channel & H-Steel | Heavy H-Beam & Box-Section Structural Steel |
| Handling Compatibility | Manual / Light Hoist / Forklift | Overhead Bridge Crane / Heavy Forklift | Stacker Crane / Automated Hoist System |
| Safety Mechanisms | Position Pin Locks & Drawer Retainers | One-Drawer Interlock System & Anti-Drop Stop | Photoelectric Sensors & Mechanical Limiters |
| Surface Finishing | Standard Epoxy Powder Coating (60-80μm) | Heavy-Duty Anti-Corrosive Coating (100-120μm) | Hot-Dip Galvanized / Custom Saudi RAL Shades |
Die-Casting Mold Racks in KSA's Key Industrial Hubs
The application of industrial mold racks in Saudi Arabia spans across key economic zones, each possessing specific operational demands. Zenithrack delivers customized racking layouts tailored to the regional manufacturing activities in the Kingdom:
Jubail & Yanbu Petrochemical & Polymer Tooling
In the mega-industrial hubs managed by RCJY (Royal Commission for Jubail and Yanbu), polymer processing and heavy blow-molding factories require heavy-duty mold racks capable of storing massive extrusion dies. Our mold racks incorporate chemical-resistant powder coatings to withstand corrosive industrial atmospheric exposures.
Dammam 2nd & 3rd Industrial Cities Automotive Casting
As Saudi Arabia accelerates local assembly for electric vehicles (EVs) and OEM automotive suppliers in the Eastern Province, precision aluminum and zinc die-casting plants require instant, safe overhead crane access to heavy die sets. Zenithrack’s 100% full-slide drawer systems allow overhead cranes to drop and pick molds directly without obstruction.
Riyadh MODON Zones & Metal Fabrication Units
Central Saudi Arabia’s expanding building materials, hardware die-casting, and defense production hubs demand vertical volumetric space optimization. Our multi-tiered custom mold shelving increases floor utilization by up to 300%, turning cluttered workshop floors into structured, safe storage cells.
Saudi Vision 2030: Industrial Modernization & Safety Compliance Trends
The transformation of Saudi Arabia’s industrial sector under the National Industrial Development and Logistics Program (NIDLP) is shifting focus from rudimentary floor storage to lean, modern, safety-certified intralogistics infrastructure. Key trends influencing mold rack procurement across Saudi enterprise buyers include:
Mandatory Occupational Safety Standards
The Saudi Ministry of Industry and Mineral Resources, along with MODON environmental safety audits, strictly enforces workplace hazard mitigation. Eliminating unanchored mold floor storage by installing engineered die-casting racks with mechanical safety locks is becoming a key requirement during factory safety audits.
Integration with Smart Overhead Cranes & ASRS
Modern Saudi foundries are upgrading from manual gantry hoists to automated bridge cranes and Miniload ASRS picking systems. Zenithrack mold racks feature top-beam open structures and customized guide rails to seamlessly interface with overhead crane hooks and automated shuttle units.
High-Ambient Thermal & Sand-Dust Protection
Saudi Arabia's summer ambient temperatures inside unconditioned facilities can exceed 50°C, combined with abrasive fine desert sand dust. Our guide bearings use sealed, self-lubricating heavy-duty rollers to prevent dust ingress and bearing lockup under extreme environmental conditions.
Manufacturing Supremacy, Direct Supply Chain & Technical Rigor
Zenithrack Industrial Equipment Co., Ltd. stands out as a leading global designer and direct factory manufacturer of industrial warehouse storage racks and specialized die-casting mold racks. Unlike trading companies or regional stockists, we maintain full control over raw material sourcing, structural engineering roll-forming, automated robotic welding, and quality inspection.
15+ Years Specialized Production
With over 15 years of focused engineering refinement, our factory supplies high-capacity racking solutions to top-tier international logistics, automotive, and heavy manufacturing brands across 40+ countries.
8,000 m² Modern Factory & 35+ Equipment Sets
Our state-of-the-art facility features automated continuous roll-forming lines, CNC punching, robotic welding cells, and an automated continuous electrostatic powder coating line to execute large-scale projects efficiently.
Free CAD Layout & Structural Engineering Design
We provide zero-cost 2D floor plans, 3D spatial models, and finite element load calculations tailored to your exact warehouse ceiling heights, floor load limits, and overhead crane clearances.
Full In-House Quality Assurance
Every shipment undergoes rigid quality control: ultrasonic weld testing, coating thickness verification, and 1.25x load testing on drawer assemblies before export packing.
Complete OEM & Customization Support
From custom tray dimensions and color coding matching your corporate identity to specialized structural steel grades, we build racking fully tailored to your operational workflows.
Seamless Import & SABER / SASO Compliance
Our dedicated export logistics team prepares all documentation required for smooth customs clearance through Dammam Commercial Port, Jeddah Islamic Port, and King Abdulaziz Port.
Frequently Asked Questions (FAQ) for Saudi Arabia Procurement
How do Zenithrack mold racks comply with Saudi Arabian SABER and SASO quality standards?
All Zenithrack storage systems are manufactured in compliance with international ISO 9001 quality management systems and FEM 10.2.02 racking standards. For shipments into the Kingdom of Saudi Arabia, we provide comprehensive product test reports, steel grade certificates (Q235B/Q355B), and packing documents necessary for your clearing agent to obtain the SABER Certificate of Conformity (CoC) seamlessly.
What information is required to receive a customized mold rack layout and quotation for my KSA factory?
To prepare a precise CAD drawing and commercial offer, our engineering team requires: (1) Maximum dimensions (L x W x H) and maximum weight of your heaviest die-casting molds, (2) Desired number of drawer levels per rack unit, (3) Facility clear ceiling height and overhead crane hook height, (4) Preferred drawer extension ratio (60% partial vs 100% full extension), and (5) Your facility location in Saudi Arabia (e.g., Jubail, Dammam, Riyadh, Jeddah).
How do you ensure safe drawer operation when loading 2,000 kg to 5,000 kg molds via overhead crane?
For heavy loads above 2,000 kg per level, Zenithrack incorporates structural steel guide tracks fitted with high-precision, heavy-duty ball bearings and secondary safety retainers. Drawers feature automatic lock-in pins to prevent unintended movement during crane lowering and an anti-tipping interlocking mechanism that restricts multiple drawers from being extended simultaneously.
What is the typical manufacturing lead time and sea freight transport duration to Saudi Arabian ports?
Standard production lead time for customized die-casting mold racks is typically 15 to 20 days from order confirmation. Direct ocean freight transit from China to King Abdulaziz Port in Dammam or Jeddah Islamic Port takes approximately 18 to 25 days, ensuring your equipment arrives on-site within 5 to 7 weeks from design approval.
Can Zenithrack mold racks handle high humidity and elevated ambient temperatures in coastal industrial cities like Yanbu and Jubail?
Yes. Zenithrack uses an advanced multi-stage surface pretreatment process including shot blasting, acid phosphating, and heavy-layer thermosetting epoxy-polyester powder coating cured at 200°C. This provides exceptional resistance to salt fog corrosion, humidity, and ambient temperature fluctuations up to 60°C without flaking or chemical degradation.
