How do I choose between selective, drive-in and shuttle racking?

Choose selective pallet racking when you store many SKUs and need direct access to every pallet. Choose drive-in racking for few SKUs in large quantities where LIFO rotation is acceptable. Choose radio shuttle racking when you need very high density with the option of FIFO or FILO rotation and faster forklift cycles than drive-in systems.

What information do you need to design my warehouse racking layout?

Please share your warehouse floor plan or CAD drawing, clear height, pallet or goods dimensions, load per pallet or per shelf level, forklift type and maximum lift height, and any local seismic or fire-code requirements. Our engineers use this to prepare a free layout and installation drawing.

Do you provide free samples and installation drawings?

Yes. Free samples are available with freight collect, design and installation drawings are provided free of charge, and basic installation tools are shipped with confirmed orders.

How does Zenithrack control rack quality before shipment?

A dedicated QC team inspects raw steel, profile dimensions, welding seams, hole-punching accuracy and powder-coating or galvanized surface quality at each production stage before goods are packed for export.

Can racks be customized with our colors or brand?

Yes. OEM customization is available, including rack dimensions, load capacity, surface color and branding, so distributors and project contractors can supply racking under their own brand.

Double Row Pallet Racking Exporter & Exporters in Sydney

Engineering-grade double deep racking solutions customized for high-density warehouse storage across Sydney, Western Sydney Logistics Hubs, and New South Wales.

Direct-Factory Export Racking Solutions

Explore our structural-grade, certified heavy-duty warehouse racking systems engineered to maximize storage cube efficiency and meet rigid Australian Standard AS4084-2023 specifications.

Wholesale Custom High Intelligent Automated Pallet Runner Radio Four Way Shuttle Rack System

Shuttle Racking Heavy-Duty Thickened Pallet Rack System High-Bay Automated VAN Stacking 5-Layer Rack

3500kg Extra Strong Industrial Steel Coil Motor Storage Heavy Duty Beam Pallet Warehouse Rack

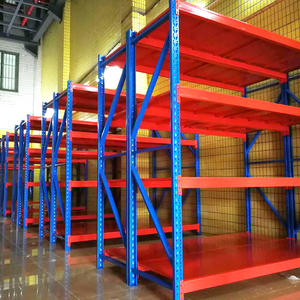

Compact Heavy Duty 5 Layer Adjustable Thickened Pallet Rack with 300kg Load Capacity Cold-Rolled Steel

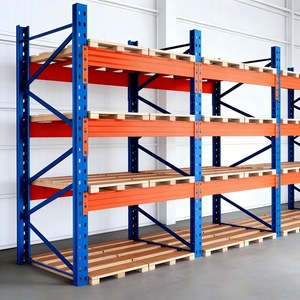

Heavy Duty Multi Tier Large Industrial Warehouse Pallet Racking Adjustable High-Strength Steel Anti-Rust

High Density Steel Blue Semi Auto Pallet Shuttle Rack Solution with Wheels for Warehouses by Maxrac

Hot Dip Galvanized Stacking Storage Rack

Heavy Duty Movable Durable Detachable Hot Dip Galvanized Stacking Storage Pallet Converter Rack

Customizable Heavy Duty Automated Shuttle Rack

Factory Customizable Heavy-Duty 2-Way Automated Shuttle Rack Metal Radio Shuttle Racking Storage System

15+

Years Engineering Expertise

8,000m²

State-of-the-Art Factory

30%–50%

Floor Space Gain in Sydney

AS4084

2023 Structural Certification

Industrial Whitepaper: Double Row Pallet Racking Engineering & Market Insights

As commercial industrial rents across Greater Sydney reach historical peaks, logistics operators and warehouse procurement teams are aggressively transitioning to double deep (double row) pallet racking configurations to maximize volumetric cube utilization.

Understanding Double Row (Double Deep) Racking

Double Row Pallet Racking—commonly referred to in Australia as Double Deep Racking—stores pallets two-deep back-to-back in a 4-pallet deep bay structure. By eliminating every second access aisle required in standard single-selective racking, Double Row Racking instantly increases floor space utilization by up to 30% to 50%.

Access to the rear pallet position is achieved using specialized pantograph extendable reach trucks or deep-reach attachments. This architecture strikes an optimal economic balance between ultra-high density (like Drive-In or Automated Shuttle systems) and selective access.

Compliance with Australian Standard AS4084-2023

Navigating industrial storage compliance in New South Wales requires strict adherence to AS4084-2023 (Steel Storage Racking). Exporting racking components to Sydney demands rigorous structural testing for upright column buckling, beam slot engagement torque, dynamic deflection, and seismic load tolerances.

Zenithrack manufactures heavy-duty double row racking using high-tensile cold-rolled steel (Q235B & Q355B grade) engineered with precision column profiles (e.g., 90mm, 100mm, 120mm widths). Every shipment supplied to Sydney importers includes full structural engineering calculations and load capacity certification plates.

Racking System Engineering Comparison

Evaluate how Double Deep / Double Row Racking compares against traditional selective and high-density automation systems in Sydney warehouse operations:

Racking Technology	Storage Density Gain	Pallet Accessibility	Forklift Requirement	Relative Capital Cost	Ideal Sydney Industry
Selective Pallet Racking	Baseline (100%)	100% Direct Access	Standard Counterbalance / Reach	Low	General Warehousing, Multi-SKU Retail
Double Row / Double Deep	130% – 150%	50% Immediate Access	Pantograph Reach Truck	Moderate (High ROI)	Cold Storage, FMCG, 3PL Warehouses
Radio Shuttle Racking	160% – 200%	FILO / FIFO Lane Access	Standard Forklift + Radio Shuttle	High (Automated)	High-Volume Beverages, Bulk Goods
Drive-In Racking	140% – 180%	LIFO Lane Access	Drive-In Compatible Forklift	Moderate	Seasonal Storage, Low SKU Count

Localized Application Scenarios in Sydney & New South Wales

Sydney’s unique logistics geography—spanning from Port Botany to the booming industrial zones of Western Sydney—presents unique storage challenges. Here is how double row pallet racking transforms key Sydney commercial districts:

1. Cold Storage & Frozen Logistics Hubs

Locations: Kemps Creek, Eastern Creek, Marsden Park.

Cold storage facilities in Western Sydney face immense electricity and operational overheads per cubic meter. Implementing galvanized double row pallet racking allows refrigerated logistics providers to pack 40% more SKUs into temperature-controlled zones without expanding the costly building footprint.

2. E-Commerce & FMCG 3PL Distribution

Locations: Wetherill Park, Yennora, Bankstown.

Fast-moving consumer goods (FMCG) distributors operating in Sydney’s central distribution hubs benefit from double deep racking by grouping identical batch numbers or medium-velocity SKUs in back-to-back positions, maximizing picking throughput and vertical density.

3. Freight & Logistics Near Port Botany

Locations: Botany, Alexandria, Matraville.

Industrial real estate adjacent to Port Botany commands premium rental rates per square meter. Importing heavy-duty double row racking provides port logistics operators with compact storage for ocean freight containers awaiting Sydney metro distribution.

Sydney Industrial Racking Development & Procurement Trends

1. Escalating Land Costs Drive Vertical Expansion

With prime industrial land in Western Sydney and the Aerotropolis precinct reaching record valuation metrics, building sideways is no longer cost-effective. Sydney warehouse operators are specifying tall double row racking structures reaching 10 to 12 meters in height, leveraging vertical airspace to suppress long-term lease expenditure.

2. Integration with Automated Guided Vehicles (AGVs)

Modern warehouses across NSW are progressively integrating automated pantograph reach trucks and laser-guided AGVs with custom double row racking. Precision roll-formed profiles and exact beam beam-slot tolerances manufactured at our factory ensure seamless automated robotic placement in double-deep channels.

3. Mandatory Work Health and Safety (WHS) Upgrades

SafeWork NSW inspections require racking installations to feature anti-collapse mesh, heavy-duty frame column protectors, rear pallet stop beams, and safety mesh guards. Exported racking solutions now arrive pre-engineered with modular safety attachments tailored for Australian safety audits.

4. Focus on High-Tensile Anti-Corrosive Coatings

Sydney’s coastal proximity demands superior surface protection against humidity and saltwater corrosion. Direct-factory exporters now supply advanced electrostatic epoxy powder-coating (over 65–85 micrometers thick) and hot-dip galvanized finishes engineered for 20+ years of maintenance-free service.

Sydney Procurement FAQ: Double Row Pallet Racking

Answers to common structural, logistics, and compliance questions asked by Sydney warehouse engineers and procurement officers when importing double deep racking systems.

What is the structural difference between single-selective and double row (double deep) pallet racking?

Double row racking consists of two standard selective racking frames placed back-to-back, connected by heavy-duty frame spacers (typically 200mm to 300mm length). The primary structural difference lies in the load distribution and beam depth calculations. Because the reach truck must extend its pantograph mechanism into the rear row, front beam levels require high torsional stiffness and rigid beam connectors to withstand dynamic forces during rear loading.

How do Zenithrack products comply with Sydney’s AS4084-2023 steel storage standards?

Our engineering team designs every racking component in accordance with AS4084-2023 standards. We utilize certified Q235B and Q355B cold-rolled steel, perform finite element analysis (FEA) on upright profiles, and supply certified load capacity plaques (detailing maximum beam level loads and frame capacities) required by Australian WHS inspectors.

What forklift equipment is required for double deep racking in Sydney warehouses?

Double deep racking requires a specialized forklift equipped with a pantograph reach mechanism or telescopic forks (Double Deep Reach Truck). Guide rails or laser positioning systems installed on the forklift mast are strongly recommended for high-bay operations above 6 meters to ensure accurate rear-pallet placement.

What are the typical shipping lead times and delivery logistics from factory to Port Botany?

Standard production cycles at our 8,000 m² factory take 15 to 22 days following CAD design approval. Maritime freight transit from our southern China port directly to Port Botany (Sydney) typically takes 12 to 16 days. Our export department handles all packing in container-optimized steel skids to facilitate rapid forklift unloading at Sydney logistics depots.

Can double deep pallet racking be retrofitted into existing Sydney warehouse space?

Yes. If your current warehouse layout uses standard selective pallet racking, our engineering team can reconfigure your existing upright frames and supply additional double-deep beam levels, heavy-duty row spacers, and floor anchor bolts to convert your facility into a high-density double row storage system without structural floor alterations.

What free layout and CAD design services do you offer to Sydney importers?

We provide 100% free warehouse layout design services. By submitting your warehouse floor plan, clear ceiling height, slab load ratings, and pallet dimensions, our structural engineers generate 2D CAD floor plans and 3D elevation renderings within 24 hours, showing exact pallet count capacities and aisle widths customized for your reach trucks.

Why Partner with Zenithrack for Sydney Exports

Backed by over 15 years of industrial manufacturing experience, Zenithrack stands as one of Asia's premier warehouse racking manufacturers, supplying high-precision structural racking to logistics hubs worldwide.

8,000 m² Modern Factory

Equipped with 35 sets of continuous automated roll-forming lines, robotic welding stations, and automated powder-coating lines operating under strict ISO9001 quality management.

75+ Technical Team

Our dedicated engineering staff includes structural engineers, CAD draftspeople, and full-time QC inspectors ensuring zero-defect manufacturing before export loading.

Direct Factory Pricing

Bypass trading middlemen. Buying direct from our manufacturing facility delivers up to 30% savings on total capital racking expenditures for Sydney commercial developments.

OEM & Custom Colors

Full OEM customization available. We produce rack frame sizes, beam spans, load ratings, and RAL color finishes tailored to your corporate branding guidelines.

Free Sample Service

We supply free sample steel beam connectors, upright section cutaways, and surface powder coating swatches (freight collect) for quality verification before batch orders.

24/7 Rapid Response

Our dedicated export service team replies to inquiries, technical tenders, and layout change requests within 24 hours, guaranteeing fast project turnaround times.

Ready to Optimize Your Sydney Warehouse Density?

Contact our senior racking engineers today for a free warehouse CAD layout, technical consultation, and competitive direct-factory price quotation.
