Featured Industrial Pallet Racking Systems
Explore our top-tier heavy-duty storage racks, gravity roller systems, and dynamic deck solutions built for industrial facilities in Basra, Erbil, Baghdad, and across Iraq.
Ventilated Wire Mesh Deck Pallet Racking System (2000kg)
- Load Capacity: 2000 kg / level
- Structure: 5-Layer Damp-Proof
- Safety Standard: ANSI MH26.2 Compliant
Adjustable Mobile Heavy Duty Pallet Racking (1500kg Load)
- Payload: 1300kg – 1500kg / Bay
- Feature: Motorized Mobile Base
- Certification: CE / ISO9001

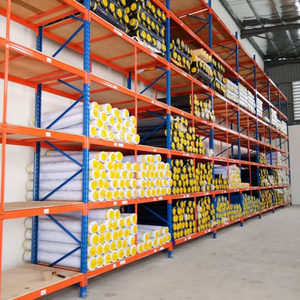

Heavy Duty Galvanized Pallet Racking System (3000kg)
- Capacity: 2000kg – 3000kg / Tier
- Finish: Hot-Dip Galvanized
- Application: Textile & Raw Material
Dynamic FIFO Gravity Roller Pallet Racking System
- Mechanism: Steel Roller Tracks
- Rotation: FIFO (First-In, First-Out)
- Speed Control: Magnetic Brake Rollers
Euro Grid Pallet Racking System (6T Static / 1.5T Dynamic)
- Static Load: 6,000 kg
- Dynamic Load: 1,500 kg
- Entry: 4-Way Forklift Entry
Foldable HDPE Pallet Box Racking Container (670L Capacity)
- Volume: 670 Liters
- Dynamic Rating: 1,000 kg
- Design: Collapsible Stackable Unit
Stackable Heavy Duty Single Deck Storage Pallet Racks
- Dimension: 1200 x 1000 mm
- Dynamic Load: 1000 kg / Deck
- Standard: Euro Specification
Industrial Dynamic Storage Gravity Flow Racking System
- Storage Density: Up to 85% Volume Utilization
- Safety System: End Stop Separator Mechanism
- Channel Depth: Customizable up to 20 Pallets
Dynamic Pallet Racking Architecture & Gravity Flow Physics
An authoritative technical analysis on maximizing volumetric storage density, controlling kinetic momentum, and maintaining zero-energy material flow in modern Iraqi warehouses.
Gravity Inclination & Kinetic Control
Dynamic pallet flow racking operates on a precise inclined plane angle between 3.5% to 4.0%. Gravity glides heavy palletized loads from the loading face to the picking face. Integrated magnetic speed controller rollers regulate motion to a controlled 0.3 m/s, preventing dangerous kinetic acceleration over deep storage channels (up to 20 pallets deep).
Pallet Separator Mechanism
To eliminate line pressure at the discharge face, engineered mechanical pallet separators isolate the front pallet from accumulating rear pallets. This ensures forklift operators extract the leading pallet smoothly without back-pressure friction, significantly reducing forklift damage, mast strain, and inventory impact accidents.
Strict FIFO Inventory Management
Dynamic pallet flow systems establish an uncompromised First-In, First-Out (FIFO) loading logic. Ideal for fast-moving consumer goods (FMCG), pharmaceutical stockpiles, and climate-controlled cold stores in Iraq, where inventory rotation, batch tracing, and expiration date management are operational priorities.
| System Architecture | Volumetric Storage Density | Forklift Aisle Requirement | Stock Rotation Logic | Suitability for Iraq Logistics |
|---|---|---|---|---|
| Dynamic Gravity Pallet Flow | Very High (Up to 85%) | Minimal (2 Aisles Only) | Strict FIFO | Optimal for FMCG, Cold Chains & High-Volume Distribution |
| Selective Pallet Racking | Standard (35% - 45%) | High (Requires Aisle Every Row) | 100% Direct Access (Any) | Ideal for High-SKU Multi-Product Warehouses |
| Drive-In Racking | High (65% - 75%) | Low (Forklift Enters Rack) | Strict LIFO | Best for Bulk Raw Materials & Uniform Batch Loads |
| Radio Shuttle System | Ultra High (80% - 90%) | Minimal (1 or 2 Aisles) | Automated FIFO / LIFO | Best for Automated Logistics Parks & Large Cold Stores |
Dynamic Pallet Racking Deployment in Iraq's Key Hubs
From heavy oilfield equipment storage in Basra to fast-turnover food supply hubs in Erbil and Baghdad, our custom racking systems are tailored to Iraq's operational realities.
Basra & Umm Qasr Oilfield Logistics
Energy sector supply chains around Basra and the Port of Umm Qasr demand structural steel heavy-duty pallet racks capable of supporting dense machinery components, drilling fluids, valves, and chemical totes. Our hot-dip galvanized coating guards against saline airborne corrosion from the Persian Gulf and extreme ambient moisture.
Erbil & KRI Cross-Border Distribution Hubs
Serving as the primary northern logistics corridor connecting Turkey and Iraq, Kurdistan Region (Erbil, Sulaymaniyah, Zakho) distribution centers require scalable dynamic gravity flow and selective pallet racks. High floor-to-ceiling clearances are fully leveraged to handle transit freight and multi-category wholesale distribution.
Baghdad FMCG & Climate-Controlled Storage
In Baghdad’s rapidly modernizing retail sector, temperature-sensitive food, beverage, and medical supplies require high-density gravity flow racks inside refrigerated cold warehouses. Dynamic flow mechanics maximize cold space density, drastically reducing per-pallet refrigeration energy costs.
Adapting Pallet Racking Systems to Iraq's Severe Climate
Reconstruction programs, expanding trade zones, and high thermal variances demand specialized material specifications and thermal stress resilience.
Thermal Expansion & High Heat Resistance
Summer temperatures in central and southern Iraq routinely breach 50°C to 55°C inside non-insulated warehouses. Zenithrack utilizes cold-rolled structural steel (Q235B and Q355B) engineered with high-yield strength. Our heavy-duty electrostatic powder coatings are cured at 200°C to prevent surface flaking, softening, or UV degradation under extreme heat.
Dust-Sealed Roller Bearings & Gravity Flow Reliability
Fine airborne dust and sandstorms (Shamals) prevalent in Iraq can ingress into unprotected roller tracks, causing mechanical jams. Our dynamic pallet racking systems integrate IP65 dust-sealed, permanently lubricated precision bearings inside every steel roller, ensuring maintenance-free gravity flow operation regardless of ambient dust loading.
Seismic & Ground Stability Engineering
Northern Iraq and the Zagros fold belt region require racking structures calculated under Eurocode 8 / FEM 10.2.08 seismic standards. We supply oversized heavy-duty baseplates, heavy anchor bolts, and reinforced diagonal bracings to absorb ground vibrations and structural flex in industrial facilities.
Why Iraqi Buyers Partner Direct with Zenithrack
With over 15 years of continuous manufacturing innovation, an 8,000 m² modern factory, and advanced roll-forming technology, we deliver direct-factory reliability from China to Iraq.
15+ Years Export Expertise
Over 15 years of dedicated steel racking production and global exportation. We understand international shipping standards, container packing efficiency, and Middle Eastern import regulatory standards.
8,000 m² Advanced Factory
Equipped with 35 sets of specialized machinery including automated continuous upright roll-forming mills, robotic laser welders, and an automated 90-meter powder coating line in Dongguan, China.
75+ Skilled Engineers & QC Staff
Our specialized engineering department creates free CAD layouts, 3D structural simulations, and stress analysis. Every batch undergoes strict tensile strength and weld seam inspections before shipment.
Verified Customer Feedback & Global Deployments
"Zenithrack manufactured complete heavy-duty selective and dynamic roller racks for our warehouse. Their engineering support on load calculations was outstanding, and shipping to Umm Qasr port was perfectly documented."
"The surface finish of the powder coating is exceptional. Even after months of handling heavy pallet loads in hot ambient temperatures, there is zero chipping or rust. Highly recommended racking exporter."
"We have worked with Zenithrack for 5 years supplying racking projects across the Middle East. Fast layout turnarounds, precise profile engineering, and 100% reliable factory support."
Frequently Asked Questions by Iraqi Buyers
Detailed technical and logistical answers regarding shipping, custom layout engineering, installation, and local regulations in Iraq.
How do you ship dynamic pallet racking orders to Iraq?
Can your racking systems withstand Iraq's extreme summer temperatures and dust?
What information is needed to get a free warehouse layout design and quotation?
1. Building floor plan dimensions (length, width, clear height under roof trusses).
2. Pallet dimensions (Width x Depth x Height including cargo overhanging).
3. Maximum load weight per palletized unit (e.g., 1000kg, 1500kg).
4. Forklift specifications (minimum aisle turning radius and maximum lift height).
5. Desired inventory turnover logic (FIFO for dynamic gravity flow, or LIFO for selective/drive-in).
Do you provide structural engineering compliance for seismic zones in Kurdistan?
What is the delivery lead time for custom pallet racking systems to Iraq?
How is installation handled on site in Iraq?
Transform Your Warehouse Storage Density Today
Connect with Zenithrack’s senior structural engineers to receive a customized CAD floor plan layout, static/dynamic load calculation report, and direct factory pricing tailored for your Iraq facility.
