High-Performance Pallet & Industrial Racking Systems
Engineered to maximize volumetric utilization, accelerate throughput, and ensure structural stability in high-density storage facilities throughout Indonesia.
Engineering Architecture of Pallet Accumulation Racking Systems for Indonesia
As Indonesia accelerates its infrastructure transformation under the National Logistics Ecosystem (NLE) initiative, warehouse developers, third-party logistics (3PL) providers, and industrial manufacturers face severe challenges regarding footprint optimization and operational cost containment. In high-density industrial hubs like Jabodetabek, Cikarang, Karawang, and Surabaya, commercial real estate acquisition costs have escalated rapidly. Traditional selective racking systems, while offering 100% immediate pallet accessibility, utilize only 35% to 40% of available warehouse cubic space due to expansive forklift aisle requirements.
Pallet Accumulation Racking Systems represent the peak of structural storage engineering, specifically designed to eliminate superfluous aisle space by enabling deep-lane pallet buffer storage. By accumulating multiple pallets deep within specialized structural channels, these systems boost warehouse storage density up to 75%–85%. As a premier global racking factory and supplier serving Indonesia, Zenithrack provides custom-engineered accumulation solutions engineered to withstand tropical climate conditions, high relative humidity, and regional seismic zone requirements.
Structural Mechanics: Comparing Pallet Accumulation Technologies
Understanding the operational and dynamic differences between deep-lane accumulation methods is critical for specifying the correct storage platform.
Semi-Automated Radio Shuttle Racking
Utilizes an autonomous electrical shuttle cart controlled via RF remote to move pallets along deep steel rails inside racking lanes.
- Storage Rotation: FIFO (First-In, First-Out) or FILO (First-In, Last-Out)
- Lane Depth: Up to 40+ pallets deep per level
- Structural Advantage: Completely eliminates forklift entry into racking structures, preventing frame impact damages
- Ideal Application: Cold storage facilities, high-volume FMCG, beverage staging hubs

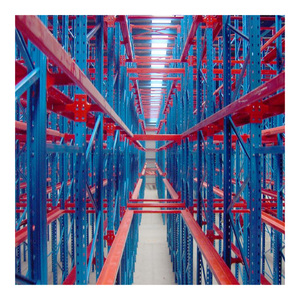

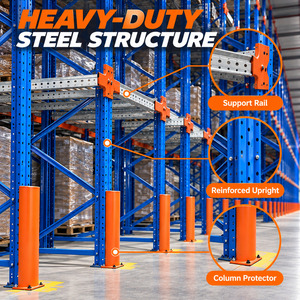

Drive-In & Drive-Through Racking
Heavy-duty structural upright frames configured with continuous side cantilever rails allowing counterbalanced forklifts to drive directly into storage bays.
- Storage Rotation: LIFO (Drive-In) or FIFO (Drive-Through)
- Lane Depth: 4 to 10 pallets deep
- Structural Advantage: Low capital cost per pallet position with high structural rigidity using Q235B/Q355B cold-rolled steel
- Ideal Application: Bulk homogenous goods, seasonal agricultural reserves, raw material buffering
Push-Back Cart Accumulation Racking
Features nested dynamic steel carts riding on inclined structural beams. As a new pallet is loaded, it pushes back the preceding pallet across a slight grade.
- Storage Rotation: FILO (First-In, Last-Out)
- Lane Depth: 2 to 6 pallets deep
- Structural Advantage: Gravity-assisted load movement; forklifts remain in main operational aisles
- Ideal Application: Medium-density SKU diversity, cold chain staging, distribution centers
Gravity Pallet Flow Accumulation Systems
Incorporates heavy-duty roller beds mounted at a precise pitch (approx. 3.5% incline) featuring automatic centrifugal speed controllers and separators.
- Storage Rotation: Strict 100% FIFO (First-In, First-Out)
- Lane Depth: 2 to 20 pallets deep
- Structural Advantage: Zero energy consumption for load travel; automatic accumulation flow
- Ideal Application: Perishable foods, pharmaceuticals, high-speed picking buffers
Seismic Engineering & Tropical Durability for Indonesian Installation
Indonesia is geographically positioned along the Pacific Ring of Fire, characterized by intense tectonic activity. Racking installations in Jakarta, West Java, and East Java must comply with stringent seismic design standards. Zenithrack’s engineering team calculates frame deflection, horizontal sway shear stress, and uplift moments using Finite Element Analysis (FEA) software. Our upright profiles feature heavy-duty base plates anchored directly into reinforced concrete slabs via chemical anchor bolts, ensuring dynamic load resistance during earthquake tremors.
Furthermore, Indonesia’s humid tropical climate (frequently exceeding 85% relative humidity in coastal warehouse locations like Tanjung Priok and Tanjung Perak) poses severe corrosion risks to structural steel. Zenithrack solves this through advanced surface chemistry: raw Q235B/Q355B steel profiles undergo a 9-stage automatic pre-treatment process (including degreasing, zinc phosphating, and nano-ceramic passivation), followed by thermosetting epoxy-polyester powder coating cured at 200°C. This achieves a coating thickness of 80–110 microns that passes 500-hour salt spray corrosion resistance testing (ISO 9227 standard).
High-Density Racking Applications Across Indonesian Economic Zones
Custom-engineered racking layouts tailored to the operational demands of primary industrial corridors across Java, Sumatra, and East Indonesia.
Automotive & Industrial Component Staging (Cikarang & Karawang)
In the dense automotive hubs of MM2100, EJIP, and KIIC, OEM automotive suppliers require heavy-duty accumulation racking capable of supporting metal wire cages and heavy component pallets up to 2,000 kg per level. Zenithrack drive-in and shuttle systems provide multi-level staging with custom guide rails for forklift safety.
Halal FMCG & Cold Chain Logistics (Greater Jakarta & Surabaya)
With strict Halal compliance and rapid growth in temperature-controlled food distribution, cold storage facilities in Surabaya and Bodetabek operate at -25°C. Semi-automated radio shuttle systems double storage density within cold rooms, reducing refrigeration energy consumption per pallet by up to 35%.
E-Commerce & Retail Fulfillment (Banten & Semarang)
Fast-growing e-commerce fulfillment operations in Banten and Semarang demand flexible hybrid layouts. Combining heavy-duty selective pallet racking on lower levels with rack-supported multi-tier mezzanine floors enables rapid piece-picking and bulk pallet storage inside a single warehouse structure.
Strategic Logistics Trends Reshaping Storage Demand in Indonesia
Indonesia’s warehousing sector is undergoing a structural modernizing wave driven by several macro-economic drivers:
1. National Logistics Ecosystem (NLE)
Government integration of sea ports, dry ports, and inland logistics parks requires standardized pallet dimensions (1200x1000mm ISO pallets) and uniform heavy-duty racking specs to ensure automated material handling compatibility.
2. Vertical Space Optimization
Rising land costs near major industrial ports (such as Patimban and Tanjung Priok) are pushing logistics operators to build upwards. High-bay selective and shuttle racks reaching 12 to 15 meters clear height maximize vertical volume.
3. Cold Chain Modernization
The rapid expansion of fisheries, processed meats, and quick-service restaurant networks across Java and Sumatra is driving unprecedented capital investment in high-density radio shuttle cold storage racking systems.
Why Indonesian Engineers & Supply Chain Directors Partner With Zenithrack
Zenithrack Industrial Equipment Co., Ltd. is a direct manufacturer with over 15 years of racking engineering expertise based in Guangdong, China. Spanning an 8,000 square meter modern manufacturing facility equipped with 35 continuous automated roll-forming lines, robotic welding stations, and automated powder coating systems, we deliver certified structural racking solutions directly from our production line to Indonesian ports.
Frequently Asked Questions (FAQ)
Practical answers to common technical, logistics, and import questions from Indonesian warehouse procurement managers.
