1. Executive Briefing: Industrial Heavy-Coil Racking Engineering for Greater Nagoya
The Chukyo Industrial Zone, anchored by Nagoya and Aichi Prefecture, represents the undisputed heartland of Japan's automotive assembly, aerospace fabrication, heavy machinery, and metal processing sectors. In facilities serving world-class automotive supply chains, raw metal inventory—ranging from rolled sheet steel, stainless coils, and slit strip coils to copper wire spools and aluminum rolls—presents extreme warehousing challenges. Standard selective pallet racking is structurally inadequate for raw coil stock due to intense point-load concentrations, risk of cylindrical displacement (rolling), and massive concentrated structural stress.
As a premier OEM factory direct exporter with over 15 years of specialized storage engineering, Zenithrack supplies precision-engineered heavy-duty coil storage pallet racking tailored to the strict operational and safety protocols required by plant managers across Nagoya, Toyota City, Yokkaichi, and Kariya. By integrating structural steel profiles, customized V-shaped cradles, elastomeric protective beds, and advanced seismic floor anchoring, our heavy coil racking systems eliminate structural deflection, streamline overhead crane and forklift operations, and maximize vertical storage density.
Point-Load Mitigation
Structural V-cradles and heavy-duty beam saddles distribute multi-ton cylindrical loads evenly across vertical uprights, preventing local beam crimping.
JIS Seismic Reinforcement
Engineered specifically to comply with Japan Industrial Standards (JIS) seismic requirements for high safety factors against regional earthquake shocks.
Surface Surface Integrity
Optional non-marking polyurethane lined cradles protect delicate copper spools, high-finish cold-rolled steel, and automotive aluminum sheets from scratching.
2. Localized Industry Trends & Demand Vectors in Greater Nagoya & Aichi
Nagoya’s strategic position as Japan's busiest sea port (Port of Nagoya) combined with its dense network of Tier-1 and Tier-2 automotive component stamping operations makes floor space utilization paramount. Industrial facilities across the region are undergoing significant transformations driven by specific regional economic factors:
A. Transition to High-Strength Steel (HSS) and EV Aluminum Sheets
With the global automotive shift toward lightweight Electric Vehicle (EV) architectures, Nagoya-based stamping plants are handling higher varieties of advanced ultra-high-strength steel (UHSS) and delicate aluminum coils. These coils require secure storage solutions that prevent coil ovalization (flattening under their own weight) while avoiding surface abrasion. Dynamic cradle racking with contoured rubber/polyurethane linings has become an industry standard.
B. Floor Space Optimization in High-Land-Cost Logistics Zones
Logistics hubs surrounding the Port of Nagoya (such as Minato-ku, Tobishima, and Meiko) face high land lease costs. Storing steel coils on flat wood blocks on the warehouse floor consumes enormous square footage and presents severe workplace hazards. Transitioning to multi-tier heavy-duty coil pallet racking systems allows facilities to convert ground storage into vertical cube storage, increasing storage capacity by up to 250% to 400% without expanding facility footprint.
C. Earthquake Preparedness and Nankai Trough Safety Directives
Aichi Prefecture maintains rigorous seismic compliance requirements due to long-term earthquake risk mitigation guidelines. Industrial equipment in Nagoya factories must feature heavy base plates, heavy-duty wedge anchor bolts, braced upright frames, and positive safety locking pins on all coil cradles to prevent displacement during seismic accelerations.
3. Specialized Application Scenarios in Nagoya's Industrial Ecosystem
Our heavy-duty coil storage rack designs are specifically configured for key regional supply chain applications across Aichi Prefecture:
Automotive Press & Stamping Plants
Located in cities like Toyota, Kariya, and Anjo. Racks are engineered for rapid overhead crane drop-in with heavy structural steel cradles supporting 3-ton to 10-ton master coils directly adjacent to press lines.
Steel Slitting & Coil Processing Hubs
Service centers along the Port of Nagoya handling narrow slit strip steel. Double-deep selective racks equipped with adjustable coil support bars accommodate varying coil diameters and width dimensions efficiently.
Wire, Cable & Transformer Manufacturers
Specialized heavy-duty spool and drum racking systems featuring horizontal axle supports or cradles, allowing smooth payoff feeding directly from the rack structure into production machinery.
Free-Trade Zone Port Logistics Warehouses
High-density drive-in and selective heavy-duty pallet racking systems designed for rapid container unloading, bonded storage, and export shipment staging of rolled metal products.
4. Engineering Comparison: Coil Storage Racking vs Traditional Systems
Choosing the correct structural framework is crucial when storing heavy cylindrical loads. The table below illustrates why specialized coil storage racking outperforms standard industrial shelving options:
| Storage System Type | Max Load Capacity per Level | Roll-Off & Dynamic Movement Safety | Vertical Space Efficiency | Coil Surface Damage Risk |
|---|---|---|---|---|

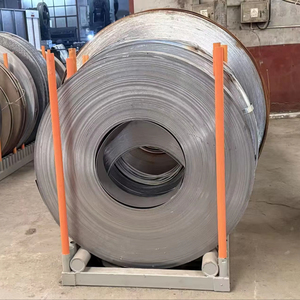

| Zenithrack Heavy Coil Cradle Racks | Up to 15,000 kg (Customized) | Maximum (Integrated V-Block Saddles) | Exceptional (Multi-Tier Vertical Cube) | Zero (Polyurethane Lined Saddles) |
| Standard Pallet Racking (Flat Beams) | 1,000 kg - 3,000 kg | Poor (High Risk of Rolling/Point Deflection) | Moderate | High (Wood dunnage movement) |

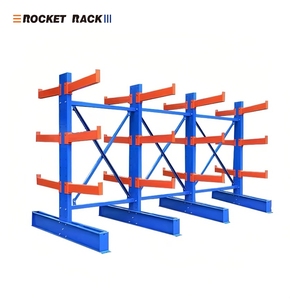

| Structural Cantilever Rack | 3,000 kg - 8,000 kg | Moderate (Requires End-Stop Pins) | Good for Linear Items | Moderate (Steel-on-steel contact) |
| Ground Stacking (Floor Dunnage) | Unlimited (Single Level) | Hazardous (Chock slippage risks) | Extremely Low (Single Level Floor Load) | High (Dust, moisture, floor impacts) |
5. Enterprise Strengths & Manufacturing Excellence: Zenithrack Advantage
Zenithrack Industrial Equipment Co., Ltd. is a premier China-based warehouse storage racking manufacturer with over 15 years of industry leadership. We are a direct manufacturing enterprise—not a trading middleman—operating an expansive 8,000 square meter modern production base equipped with 35 sets of advanced automated equipment, including continuous roll-forming machines, robotic laser welding, and automated electrostatic powder coating lines.
In-House Manufacturing Control
From raw cold-rolled steel profiling to automated robotic welding seams, every structural component is manufactured in our own facility under strict ISO quality controls.
Free Engineering CAD Layouts
Our dedicated team of 75+ skilled professionals and engineers provides comprehensive layout design, FEA structural analysis, and installation drawings free of charge.
Free Physical Samples & OEM
We provide complimentary structural material samples (freight collect) and offer full OEM support—including custom dimensions, specific load ratings, brand labeling, and specialized color coatings.
Rapid Export & Support Response
Located near major ocean freight shipping lines, our export team guarantees inquiries are addressed within 24 hours, ensuring smooth logistics to Port of Nagoya.
6. Frequently Asked Questions (FAQ) for Nagoya Racking Procurement
Optimize Your Heavy Coil Warehouse Efficiency in Nagoya Today
Partner direct with China's leading warehouse storage rack manufacturer. Get custom CAD layouts, certified load calculations, factory pricing, and free structural samples for your facility in Greater Nagoya.
Send an Inquiry
