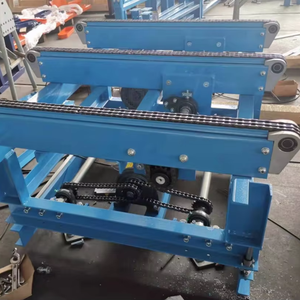

1000KG Load Capacity Powered Pop-Up Chain Transfer Conveyor System
Automated industrial conveyor module with heavy pop-up chain transfer unit designed for high-load warehouse automated handling lines.
15+ Years Direct OEM/ODM Manufacturing Mastery
Zenithrack operates an advanced 8,000 m² heavy-manufacturing facility equipped with automated roll-forming and laser welding machinery, serving global clients with factory-direct precision.
Optimizing Die Storage Architecture for Morocco's Expanding Industrial Sectors
An engineering analysis of structural load dynamics, safety mechanisms, anti-corrosion treatments, and floor space optimization for aluminum die-casting, injection molding, and stamping operations in Morocco.
1. Strategic Context: The Rise of Industrial Manufacturing in Morocco
Morocco has rapidly solidified its position as North Africa's primary industrial power house. Driven by the national Plan de Relance Industrielle, major economic hubs such as the Tanger Automotive City (TAC), Kenitra Industrial Acceleration Zone, and Casablanca Aerospace Hub (MIDPARC) are experiencing unprecedented demand for high-tier tooling and die-casting storage infrastructure. World-class automotive original equipment manufacturers (OEMs)—including Renault Tanger Med and Stellantis Kenitra—alongside hundreds of Tier-1 and Tier-2 component suppliers, rely heavily on heavy-duty die-casting molds, stamping dies, and plastic injection molds.
A typical automotive die-casting mold or plastic injection tool ranges in mass from 500 kg to over 5,000 kg per unit. Improper storage of these multi-million-Dirham capital assets introduces severe operational bottlenecks, high risk of mold core damage, worker safety hazards, and catastrophic floor space inefficiencies. Selecting a verified manufacturer for high-capacity die-casting mold racks specifically engineered for Moroccan operating conditions is critical to maintaining zero-downtime manufacturing processes.
Key Technical Insight for Moroccan Plant Managers:
Industrial mold storage requires more than conventional pallet racking. Because die-casting tools require direct overhead crane access (hoist loading) and concentrated point loads, specialized drawer-type mold racks (slide-out die racks) with self-locking anti-tilt mechanical interlocks are required to meet international European safety standard EN 15512 and ISO 9001 quality guidelines.
2. Engineering Architecture of Industrial Die-Casting Mold Racks
As a leading Chinese racking factory with over 15 years of OEM export experience, Zenithrack engineers heavy-duty mold storage systems calculated under strict structural deflection rules (L/200 deflection limits). Below are the core engineering components that distinguish professional-grade mold racks from standard commercial shelving:
A. Cold-Rolled Q235B & Q355B Structural Steel Framework
The structural columns of Zenithrack mold storage racks utilize premium Q235B or high-strength Q355B cold-rolled structural steel channel profiles. The upright frames are reinforced with heavy diagonal and horizontal bracing, ensuring that the overall structural framework remains rigid even under full dynamic loading conditions of up to 5,000 kg per drawer level.
B. Heavy Ball-Bearing Slide Rails with Full Extension Options
Our slide-out drawer mechanism incorporates industrial-grade steel roller bearings mounted on cold-drawn guide tracks. Depending on operational requirements, systems are configured as:
- Semi-Open Drawer Mold Racks (66% Extension): Cost-effective slide-out layout suitable for forklift loading or manual crane access for light-to-medium molds (up to 2,000 kg/level).
- Full-Open Drawer Mold Racks (100% Extension): Complete slide-out drawer capability allowing 100% unimpeded overhead hoist access. Essential for ultra-heavy tooling up to 5,000 kg per tier.
C. Dynamic Safety & Anti-Tilt Interlock Mechanisms
Operating heavy drawer racks involves critical center-of-gravity shifts when a 3-ton drawer is fully extended. Zenithrack integrates a proprietary Single-Drawer Opening Mechanical Interlock System. This mechanical safeguard prevents operators from pulling out multiple heavy drawers simultaneously, eliminating the risk of frame tipping. Additionally, automatic spring-loaded safety pins lock each drawer firmly in both fully closed and fully opened positions.
Anti-Tilt Mechanical Lock
Safety interlock guarantees only one drawer extends at a time, protecting operators and maintaining dynamic structural stability.
100% Overhead Crane Access
Smooth full-extension drawers allow top-mounted monorail hoists or overhead gantry cranes to drop heavy dies directly onto the bed.
Marine-Grade Anti-Corrosion
Electrostatic powder coating treated for high resistance to coastal humidity across Tangier Med and Casablanca port environments.
3. Technical Specifications Matrix: Standard vs. Heavy Mold Storage Configurations
To assist Moroccan procurement officers, logistics engineers, and plant managers in selecting the correct mold rack configuration, the comparison matrix below outlines parameters for standard manufacturing requirements:
| Racking Specification Parameter | Standard Drawer Mold Rack | Heavy-Duty Die-Casting Mold Rack | Super Heavy Structural Mold Platform |
|---|---|---|---|
| Load Capacity Per Drawer Level | 800 kg – 1,500 kg / level | 2,000 kg – 3,500 kg / level | 4,000 kg – 6,000 kg / level |
| Drawer Extension Ratio | 66% Semi-Drawer Extension | 100% Full Mechanical Extension | 100% Motorized / Gear-Driven Extension |
| Upright Steel Section (mm) | 80 × 60 × 2.0 mm Channel | 100 × 70 × 2.5 mm Heavy C-Section | 120 × 90 × 3.0 mm Structural H-Beam |
| Safety Interlock System | Manual Safety Latch Pins | Automatic Single-Drawer Interlock | Dual Hydraulic & Mechanical Locks |
| Recommended Loading Method | Manual Hoist / Forklift Truck | Overhead Crane / Monorail Hoist | Heavy Overhead Crane System |
| Surface Protection Finish | Epoxy Powder Coat (60–80μm) | Marine-Grade Electrostatic Coat (90–110μm) | Hot-Dip Galvanized / Dual Coat Option |
| Primary Morocco Industry Fit | Plastics Injection (Light Components) | Automotive Stamping & Die-Casting | Heavy Aerospace & Marine Engine Tooling |
4. Localized Application Scenarios Across Moroccan Industrial Hubs
Different industrial zones in Morocco exhibit distinct operational challenges, thermal profiles, and storage footprints. Zenithrack custom-engineers mold storage layouts adapted to local regional demands:
Tanger Automotive City & TAC Free Zone
Tailored for high-frequency changeover mold storage in fast-paced auto foundries. Compact vertical footprint minimizes floor usage near assembly lines while protecting costly aluminum casting dies.
Kenitra Industrial Acceleration Zone
Designed for medium-to-heavy plastic injection tooling used in bumper, dashboard, and wiring harness enclosure production. Integrated with upper monorail crane rails for swift die changes.
Casablanca-Nouaceur Aerospace Corridor (MIDPARC)
High-precision structural storage for titanium stamping dies and composite molding tools. Ultra-low deflection tolerances ensure sensitive precision molds maintain zero baseline misalignment.
Coastal Logistics Depots (Tangier Med & Nador West Med)
Specially treated electrostatic thermosetting powder coating specifically engineered to withstand ambient coastal airborne salinity (C3/C4 atmospheric corrosion categories).
5. Why Sourcing Factory-Direct from Zenithrack Delivers Tangible Competitive Advantage
Purchasing heavy industrial equipment internationally requires verified Trust, Authority, and Manufacturing Provenance. Rather than relying on third-party trading intermediaries, Moroccan industrial buyers benefit directly from partnering with Zenithrack:
- Direct Manufacturing Cost Advantage: Eliminating European distributor markups delivers a 25% to 40% reduction in capital expenditure without compromising steel grade or safety factors.
- Custom FEA Engineering & CAD Layouts: Every order is backed by certified 3D CAD design drawings, structural Finite Element Analysis (FEA) reports, and custom structural calculations provided free of charge prior to manufacturing.
- Rigorous In-House QC Inspection: Our dedicated Quality Control department verifies raw steel chemical composition, ultrasonic weld seam integrity, frame squareness, and powder coating thickness before export packing.
- Export-Ready Logistics to Moroccan Ports: We regularly manage full-container load (FCL) shipments directly to Port of Tanger Med and Casablanca Port, complete with EUR.1 / Certificate of Origin compliance paperwork for smooth Moroccan customs (DUM) processing.
Comprehensive Service & Quality Commitments
Why industrial procurement teams, plant managers, and warehouse system integrators across Morocco rely on our manufacturing expertise.
24-Hour Engineering Response
Dedicated technical project managers review floor plans and respond to customized inquiry specs within 24 hours.
Free CAD Layout & Design
Receive precise spatial layouts, load calculation sheets, and 3D installation drawings tailored to your plant dimensions.
Free Structural Samples
Component samples, beam connections, and surface finishing swatches are provided free of charge (freight collect).
Full OEM / ODM Branding
Custom dimensions, specialized colors (RAL matching), safety signages, and private label branding for regional equipment suppliers.
Multi-Tier QC Protocol
Continuous quality control throughout raw material sourcing, automated roll-forming, robotic welding, and powder coating lines.
Installation Tools Included
All standard bolting hardware, floor expansion anchors, structural shims, and assembly toolkits are included with every container.
Frequently Asked Questions for Moroccan Procurement
Find authoritative answers regarding shipping, custom engineering, load ratings, and installation of die-casting mold racks.
What essential parameters are needed to design a custom die-casting mold rack layout for our Moroccan plant?
+
- Maximum length, width, height, and weight of your heaviest mold or die.
- Your factory clear ceiling height and available floor space dimensions.
- Method of loading: overhead crane, monorail hoist, or forklift.
- Desired number of drawer levels per rack unit and color preference (RAL codes).
- Factory location in Morocco to determine anti-corrosion coating thickness (e.g., coastal marine ambient at Tanger Med vs inland climate).
How does the single-drawer mechanical interlock safety feature protect our workers?
+
What is the typical shipping lead time from China to Ports of Tanger Med or Casablanca?
+
Do Zenithrack mold racks come pre-assembled, or is on-site installation required?
+
Can Zenithrack manufacture mold storage racks integrated with top overhead crane rails?
+
What guarantees and structural warranties are provided with Zenithrack mold racks?
+
