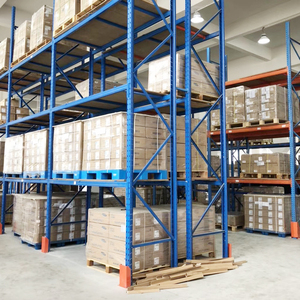

FEM/RMI Certified Q235B Adjustable Industrial Rack
Multi-Tier Heavy Duty Steel Mezzanine Platform
Semi-Automated Radio Shuttle Logistics Racking
CE Certified 2000kg Capacity Heavy Duty Drive-In Rack

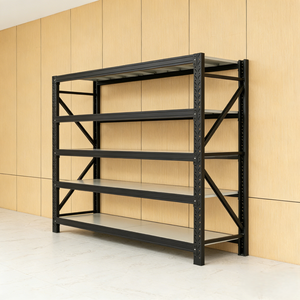

Efficient Stackable Steel Storage Shelving System
Adjustable Multi-Level Industrial Storage Racks
Executive Summary: High-Density Warehouse Optimization in Metro Manila
Metro Manila, encompassing core industrial nodes such as Pasig, Valenzuela, Paranaque, Taguig, and expanding outward to the CALABARZON logistics corridors (Laguna, Cavite, Batangas) and Bulacan, is currently experiencing an unprecedented transformation in industrial real estate. Driven by rapid growth in e-commerce fulfillment, cold chain food distribution, pharmaceuticals, and fast-moving consumer goods (FMCG), warehouse lease prices in National Capital Region (NCR) hubs have escalated sharply, averaging between USD $7.00 and $12.00 per square meter monthly. This macro-economic pressure renders traditional, low-density horizontal warehousing economically inefficient.
To maximize Return on Investment (ROI) per square meter, logistics operators, facility directors, and procurement executives across the Philippines are transitioning toward engineered High-Density Storage Systems. Implementing systems such as Radio Shuttle Racking, Heavy-Duty Drive-In Racking, and Multi-Tier Steel Structural Mezzanines allows commercial enterprises to amplify vertical cube space utilization by up to 250% without expanding their physical footprint.
Technical Evaluation of High-Density Storage Architectures
Selecting the optimal storage configuration requires a rigorous assessment of SKU diversity, throughput velocity, handling equipment specs, and inventory rotation strategies (FIFO vs. LIFO). Zenithrack manufactures four primary high-density architectural configurations engineered specifically for industrial deployment in Manila and surrounding provinces.
Radio Shuttle Racking
A semi-automated high-density system using self-powered motorized shuttle carts to transport pallets along deep channels inside the rack structure. Operated via remote control or automated WMS interface.
- Storage Density: Ultra-High (up to 85% volumetric fill)
- Rotation: Configurable for FIFO and FILO
- Ideal For: Cold storage (-25°C), FMCG, high-volume SKUs
Drive-In / Drive-Through
Forklifts drive directly into vertical storage lanes to deposit or retrieve pallets resting on continuous support rails. Eliminates operating aisles between racking rows.
- Storage Density: High (up to 65-75%)
- Rotation: LIFO (Drive-In) / FIFO (Drive-Through)
- Ideal For: Batch production, seasonal products, low SKU counts
Multi-Tier Steel Mezzanine
Heavy-duty platform systems utilizing structural H-beam steel or upright frames to construct multi-level flooring over ground operations, multiplying usable floor area 2x to 3x.
- Space Expansion: Doubles/Triples ground square footage
- Load Capacity: 300kg to 1500kg per sqm floor deck
- Ideal For: E-commerce picking, manual assembly, parts stores
Technical Comparison Matrix: Racking Systems for Philippine Warehouses
The comparative matrix below outlines key engineering metrics evaluated by Zenithrack's structural team during custom layout design:
| Storage System Type | Volumetric Space Utilization | SKU Access Directness | Forklift Aisle Requirement | Seismic Resistance Index | Est. Capital Cost / Pallet |
|---|---|---|---|---|---|
| Selective Pallet Racking | 35% – 45% | 100% (Immediate) | 3.0m – 3.8m (Standard) | High (Standard Bracing) | USD $35 – $55 |
| Drive-In Racking System | 65% – 75% | 15% – 25% (Lane End) | 3.0m (Entry Aisle Only) | Medium-High (Top/Back Braced) | USD $60 – $85 |
| Radio Shuttle System | 75% – 88% | 30% – 50% (Channel Access) | 3.0m (Front Transfer Aisle) | Very High (Rigid Box Frame) | USD $95 – $140 |
| Push-Back Racking | 55% – 65% | 20% – 30% (Front Pallet) | 3.0m (Single Access Aisle) | High (Cart Inclination Frame) | USD $80 – $115 |
| H-Steel Mezzanine Floor | 100% Floor Multiplier | 100% Manual / Conveyor | N/A (Open Span Floor) | Maximum (Structural H-Beam) | USD $85 – $150 / sqm |
Philippine Structural Engineering & Environmental Compliance Standards
Deploying heavy-duty industrial storage racks in the Philippines requires engineering considerations that extend far beyond standard warehouse racking. The archipelago's geographic position along the Pacific Ring of Fire and its tropical coastal environment necessitate specialized manufacturing specs.
1. Seismic Zone 4 Structural Engineering (NSCP Compliance)
The vast majority of Luzon, including Metro Manila, Laguna, Cavite, and Pampanga, falls directly under Seismic Zone 4 as defined by the National Structural Code of the Philippines (NSCP). Storage racks loaded with several tons of goods behave as dynamic structures during seismic events. Zenithrack engineers design systems conforming to global FEM 10.2.02 and RMI (Rack Manufacturers Institute) guidelines, incorporating:
- Over-Sized Footplates & Anchoring: Utilization of heavy-duty M12 to M16 chemical anchor bolts driven into minimum 150mm reinforced concrete slabs to resist high shear force and uplift moments.
- Seismic X-Bracing & Spine Towers: Vertical and horizontal structural bracing networks engineered to absorb lateral kinetic acceleration without joint shear failure.
- Cold-Formed High-Tensile Steel Profiles: Premium grade Q235B and Q355B structural steel profiles featuring continuous roll-formed beam sections for high elasticity and ultimate tensile strength.
2. Tropical Humidity & Coastal Salt-Spray Corrosion Prevention
Relative humidity (RH) in Metro Manila regularly exceeds 85%, combined with airborne salt content near Manila Bay ports. Unprotected structural steel deteriorates rapidly, leading to structural integrity loss. Zenithrack applies an advanced multi-stage automated surface finish process:
Automated Phosphating & Pre-Treatment
9-stage chemical wash removes surface oils, mill scale, and rust, establishing an anti-corrosive iron-phosphate conversion layer.
Thermo-Setting Epoxy Powder Coating
Electrostatic application of non-toxic epoxy-polyester powder, cured at 200°C for superior scratch resistance and moisture barrier sealing.
Hot-Dip Galvanizing (HDG) Options
For outdoor environments or sub-zero cold storage units (-25°C), steel components undergo zinc bath immersion conforming to ISO 1461 standards.
Localized Application Scenarios Across Metro Manila & Luzon Logistics Hubs
As a leading China-based manufacturer supplying the Philippine market directly, Zenithrack tailors industrial storage architectures to match the specific operating requirements of local economic zones:
FMCG & Retail Distribution Hubs (Cavite & Laguna PEZA Zones)
High-turnover distribution centers in Santa Rosa, Biñan, and General Trias utilize Zenithrack's Radio Shuttle Racking to handle thousands of pallet throughputs per day. Automated shuttles reduce forklift movement inside storage bays by 70%, preventing structural collision damage and lowering operator fatigue.
Cold Storage & Seafood Logistics (Navotas & Valenzuela)
Proximity to the Port of Manila makes Navotas and Valenzuela premier locations for refrigerated and frozen food storage. Heavy-duty Drive-In Racking and Two-Way Shuttle Racks engineered with galvanised steel maximize expensive refrigerated room volume, lowering utility cost per stored metric ton.
E-Commerce Sorting & Micro-Fulfillment (Pasig, Taguig, Paranaque)
Last-mile logistics operators servicing Metro Manila leverage Rack-Supported Mezzanine Floors integrated with boltless shelving. Ground levels host high-speed sorting and packing lines, while upper floor levels store thousands of small-to-medium SKUs for rapid manual order picking.
Frequently Asked Questions (FAQ) – Sourcing Racking Systems in Manila
Answers to critical logistical, technical, and commercial questions raised by Philippine procurement managers and facility engineers:
Why Enterprise Logistics Operators Partner with Zenithrack
Zenithrack Industrial Equipment Co., Ltd. operates as a direct manufacturer, eliminating intermediary trading markups and maintaining absolute quality control from raw coil slitting to export container loading.
8,000 m² Advanced Manufacturing
Equipped with 35+ sets of automated continuous roll-forming lines, robotic laser welding stations, and automatic powder-coating tunnels ensuring millimeter precision.
In-House Quality Assurance QC
Dedicated QC inspectors verify profile dimensions, hole-punching pitch tolerances, weld penetration, and coating thickness at every production milestone.
Direct Factory Pricing & Free CAD
Receive factory-direct quotations with zero middleman markups. Enjoy free architectural CAD warehouse design and structural optimization engineering consultation.
Optimize Your Manila Warehouse Volume Today
Connect directly with Zenithrack structural racking engineers. Share your warehouse floor plan, clear height, and load requirements to receive a customized 3D CAD design layout and competitive factory quote within 24 hours.
